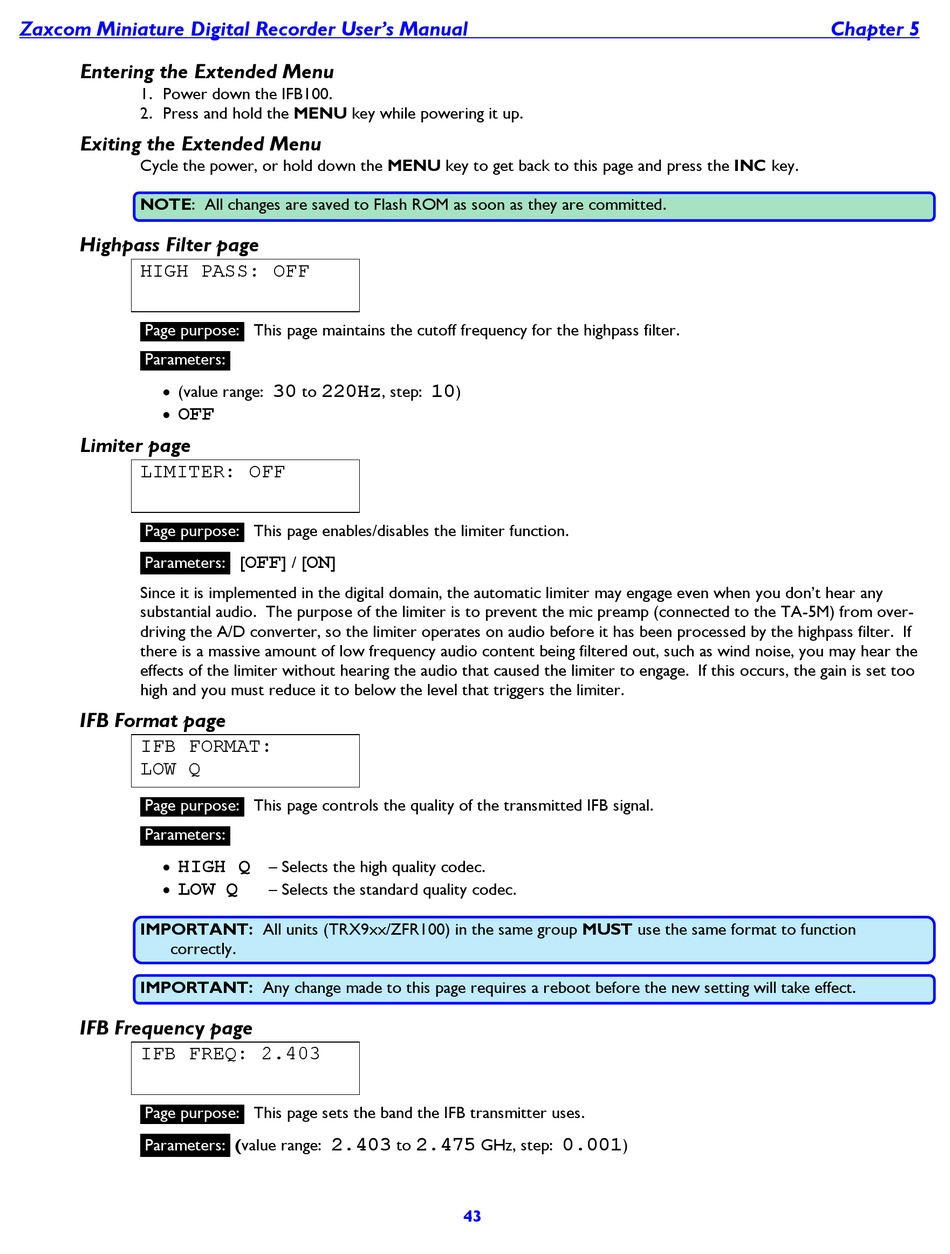

Zaxcom Miniature Digital Recorder User's Manual____________________________________Chapter 5

Entering the Extended Menu

1. Power down the IFB100.
2. Press and hold the MENU key while powering it up.

Exiting the Extended Menu

Cycle the power, or hold down the MENU key to get back to this page and press the INC key.
NOTE: All changes are saved to Flash ROM as soon as they are committed.

Highpass Filter page

HIGH PASS: OFF
Page purpose:
Parameters:
 (value range:
 OFF

Limiter page

LIMITER: OFF
Page purpose:
Parameters:
Since it is implemented in the digital domain, the automatic limiter may engage even when you don‟t hear any
substantial audio. The purpose of the limiter is to prevent the mic preamp (connected to the TA-5M) from over-
driving the A/D converter, so the limiter operates on audio before it has been processed by the highpass filter. If
there is a massive amount of low frequency audio content being filtered out, such as wind noise, you may hear the
effects of the limiter without hearing the audio that caused the limiter to engage. If this occurs, the gain is set too
high and you must reduce it to below the level that triggers the limiter.

IFB Format page

IFB FORMAT:
LOW Q
Page purpose:
Parameters:
 HIGH Q
 LOW Q
IMPORTANT: All units (TRX9xx/ZFR100) in the same group MUST use the same format to function
correctly.
IMPORTANT: Any change made to this page requires a reboot before the new setting will take effect.

IFB Frequency page

IFB FREQ: 2.403
Page purpose:
Parameters:
This page maintains the cutoff frequency for the highpass filter.
30 220Hz
to , step:
This page enables/disables the limiter function.
OFF ON
[ ] / [ ]
This page controls the quality of the transmitted IFB signal.
– Selects the high quality codec.
– Selects the standard quality codec.
This page sets the band the IFB transmitter uses.
2.403
(value range: to
10
)
2.475 0.001
GHz, step:
43
)
