Description of Extra Parts
Manual Disconnect Modules
Types
Manual disconnect
Corresponding I/O modules
module
CLIO...
XS812
...821
...822
...823
XS812RO
...824
...825
Table 59 Manual disconnect modules
For mounting the manual disconnect modules, see Fig. 23
on page 20.
WARNING
Risk of electric shock or equipment damage due to
improper use of XS812RO manual disconnect module!
Do not connect line voltage to the XS812RO.
►
Features
• Disconnector switches are used to manually disconnect
individual terminals of the corresponding electronic
module.
• Useful for troubleshooting and installation.

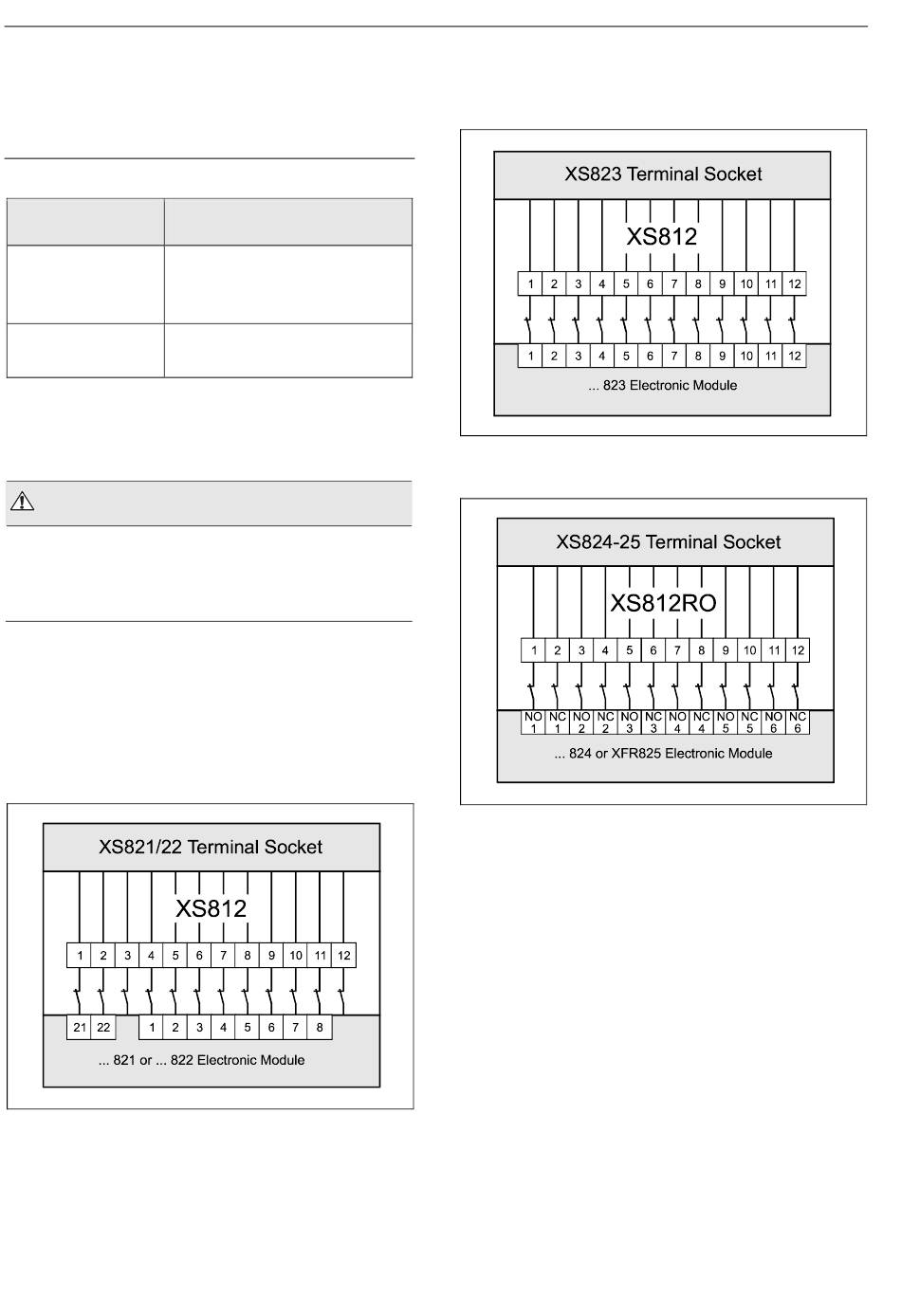

Diagrams
Fig. 82
XS812 and analog input/analog output modules
EN1B-0375GE51 R0308
Fig. 83
XS812 and binary input modules
Fig. 84
XS812RO and relay modules/floating module
60
Excel 800 LION
