Zero Point Calibration

The "Zero Point" is the programmed point in which the 5th Wheel will return to whenever the auto-
level feature is used. The Zero Point is preset at the factory and should never have to be rest. However, if
necessary, Zero Point can be reset.
NOTE: The Zero Point must be programmed prior to using the auto-level feature to ensure the proper
operation of the system. Prior to starting the Zero Point Calibration procedure, check all connections
on the controller, valve coils, landing gear, leveling jacks and touchpad.
1. Manually run all leveling jacks and landing gear to level the 5th Wheel.
A. Manual leveling is best achieved by placing a level in the center of the 5th Wheel and leveling it
both front-to-back, then side-to-side.
B. See Basic Landing Gear Operation section for instructions on how to manually operate the system.
2.
After the 5th Wheel has been leveled, turn off the touchpad.
3. With the touchpad off, press and release the FRONT Button (Fig. 1G) ten times, then press and release
the REAR Button (Fig. 1J) ten times.
4.

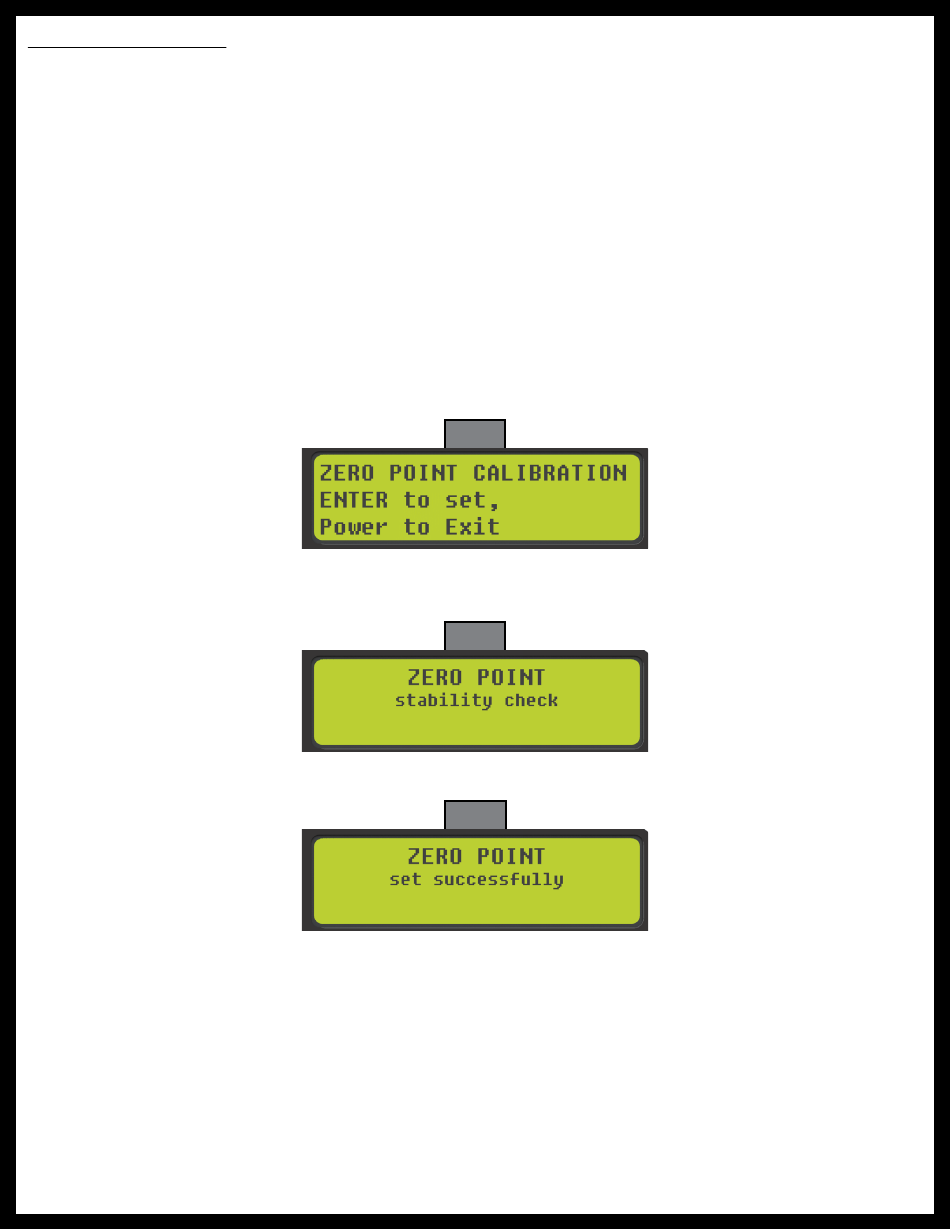

The touchpad will flash and beep, then the LCD screen will read "ZERO POINT CALIBRATION ENTER to
set, Power to Exit" (Fig. 2).
5.
To set the current position as the zero point, press the ENTER button (Fig. 1C).
A. The LCD screen will read "Zero Point stability check" (Fig. 3).
B. LCD screen will read "ZERO POINT set successfully" after the process has been completed (Fig. 4).
C. The system will set this point as its level state and the touchpad will turn off.
Rev: 02.14.19
Fig. 2
Fig. 3
Fig. 4
