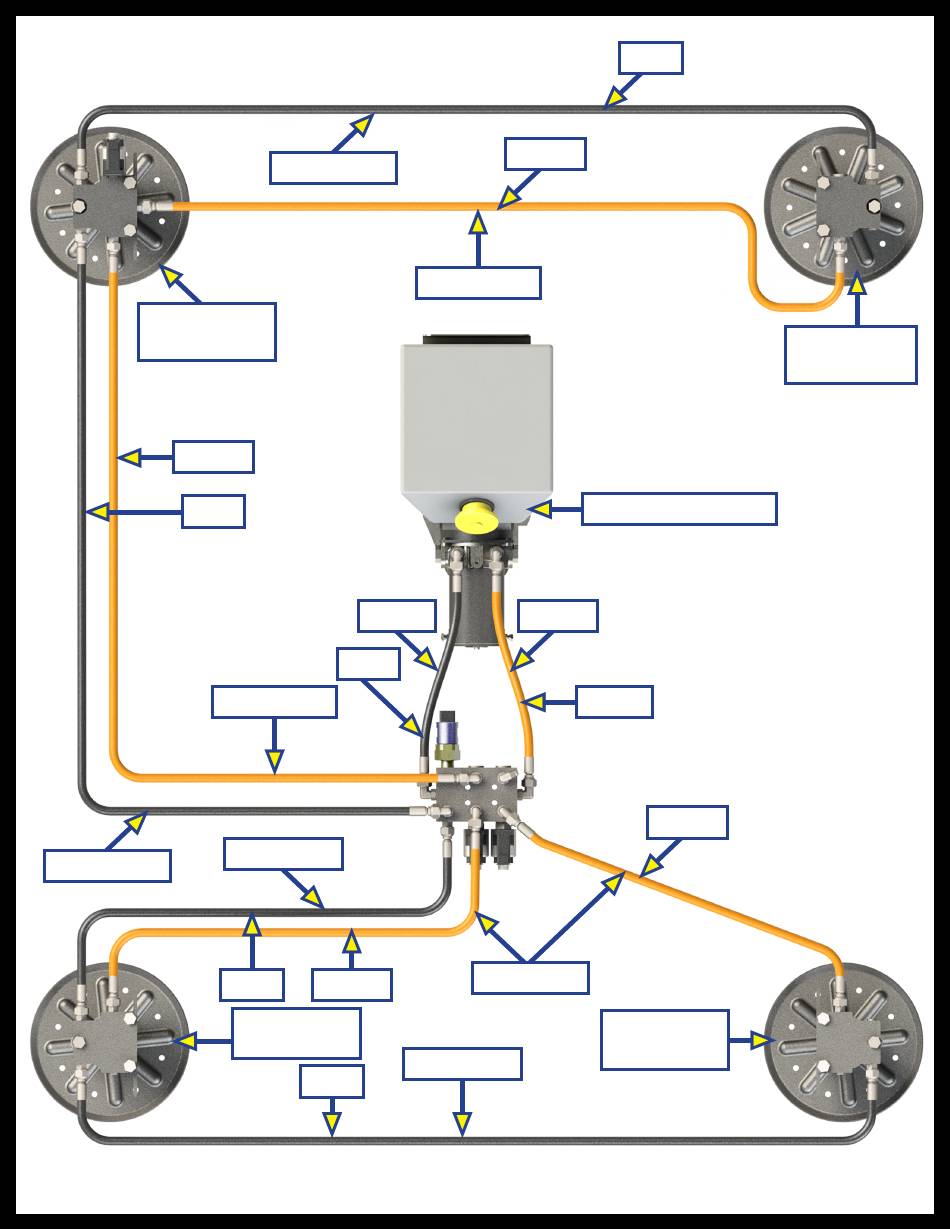

4-Point Hydraulic Diagram
Black
Orange
Front Retract
Front Extend
Left Front
Landing Gear
Right Front
Landing Gear
Orange
Hydraulic Power Unit
Black
Retract
Orange
Black
Front Extend
Extend
Orange
Rear Retract
Front Retract
Rear Extend
Black
Orange
Left Rear
Right Rear
Leveling Jack
Leveling Jack
Rear Retract
Black
Page 13
Rev: 02.14.19
CCD - 0001531
