MEC4 INVERTED METALLURGICAL MICROSCOPE
Assembly
(continued)
Mechanical Stage and Extension Stage Plate (Fig. 3 & 4)
The MEC4 comes with an attachable mechanical stage and an extension stage plate. Both mount
underneath the stage platform with the provided thumb screws.
To install the extension stage plate, gently and carefully lay the microscope on its side as shown (Fig. 3).
Align the thumb screws on the top of the extension plate with the holes on the underside of the stage platform
and tighten.
To install the mechanical stage, gently and carefully lay the microscope on its other side, align the thumbs
screws on the top of the mechanical stage with the holes on the underside of the platform stage and tighten.
NOTE: the mechanical stage can ONLY be positioned on the RIGHT side of the microscope as shown (Fig 4).

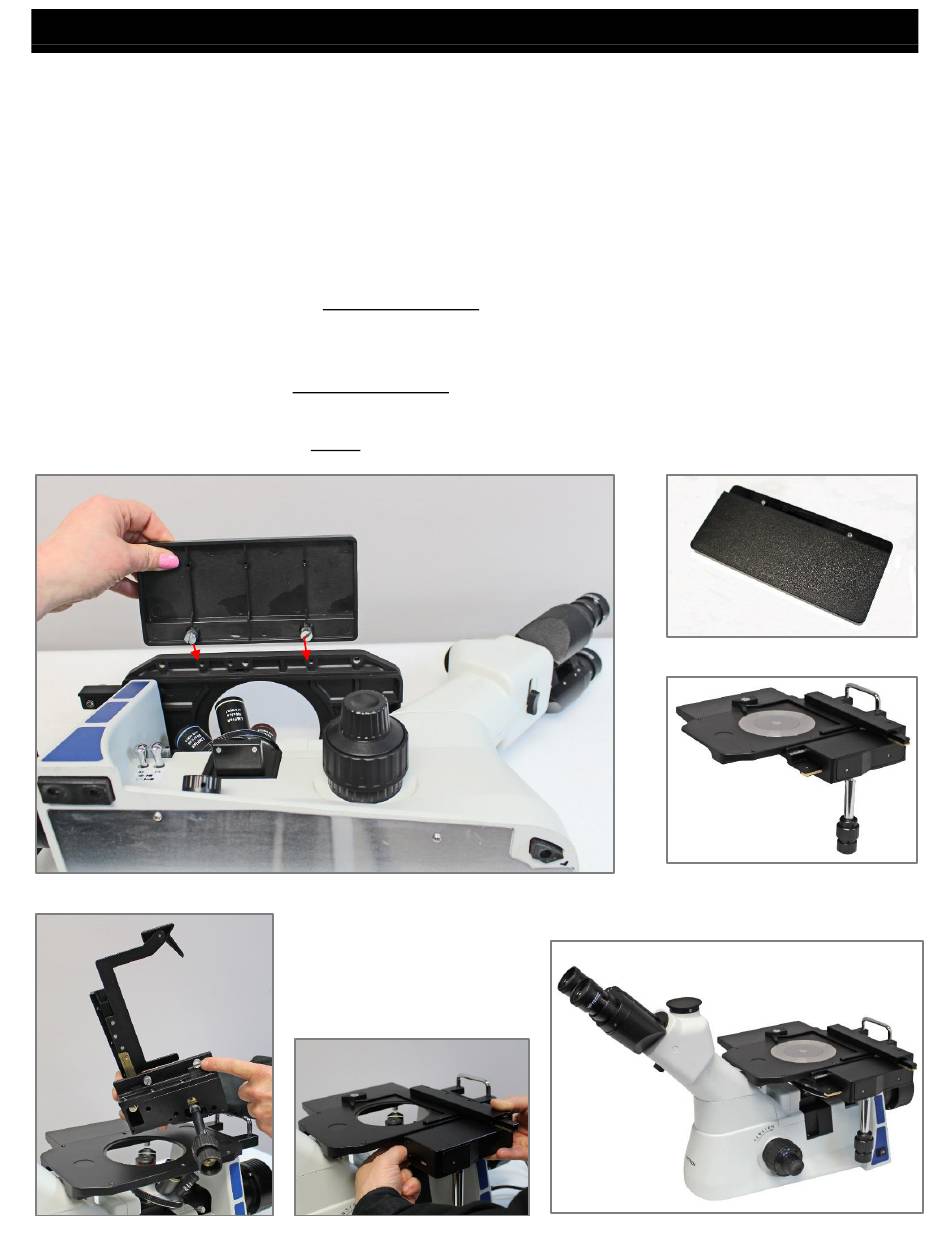

Fig. 3
