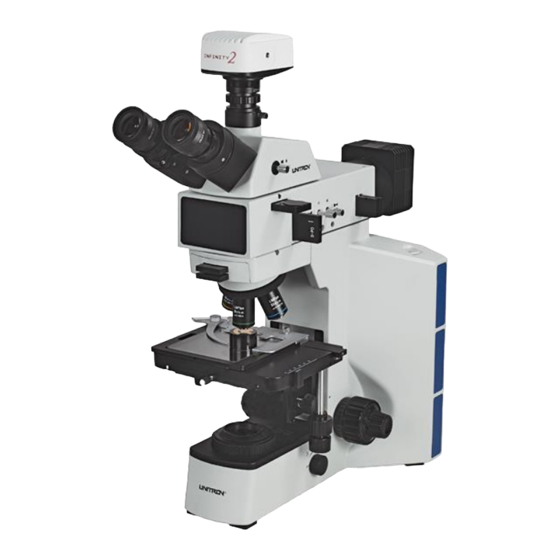

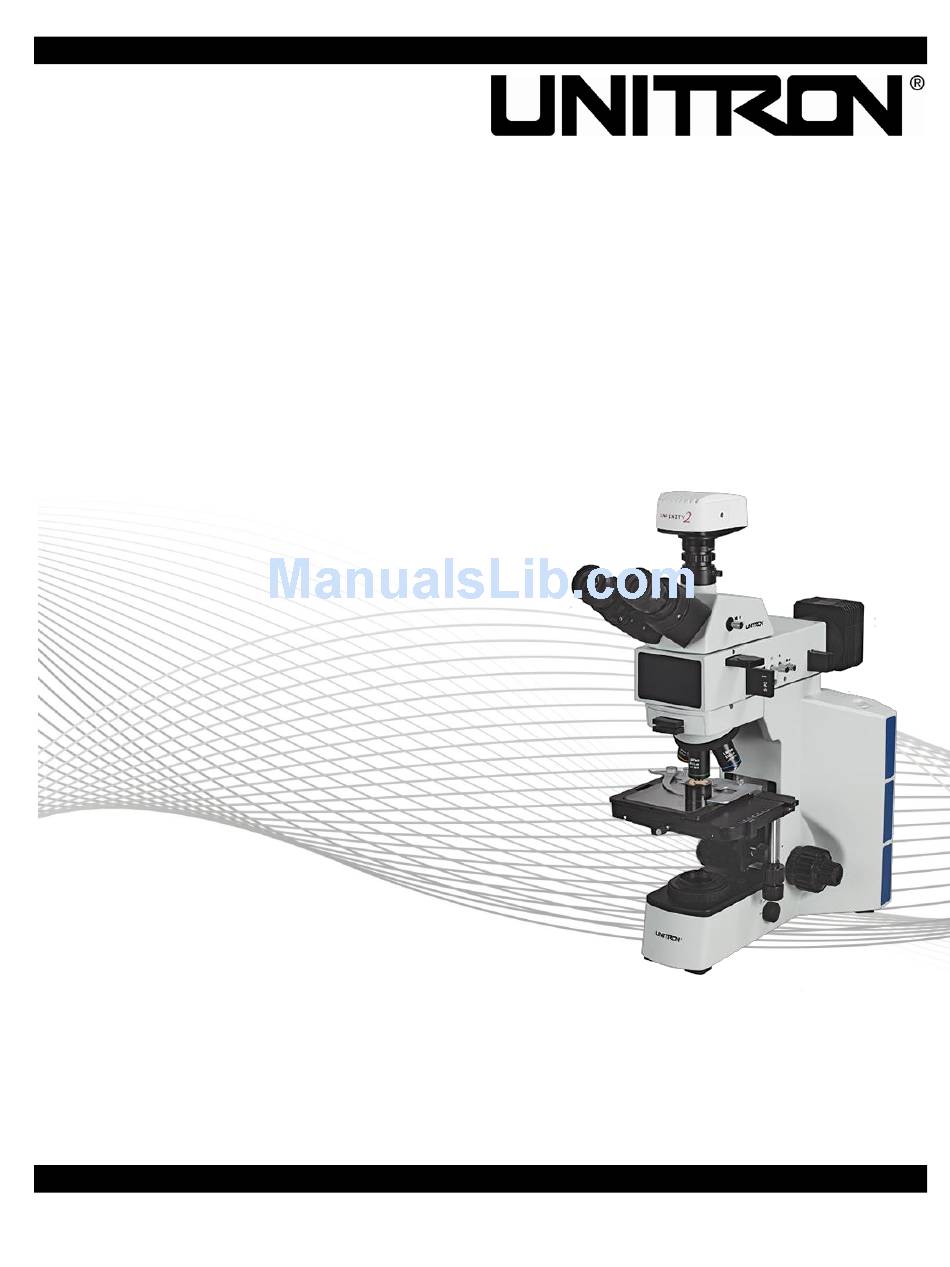

- Page 1 EXAMET-5 MICROSCOPE SERIES MANUAL 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) www.unitronusa.com • info@unitronusa.com...
-
Page 2: Table Of Contents
USING THE COLOR FILTER (Transmitted) ................17 USING A MICROSCOPY CAMERA ..................18 REPLACING THE FUSES ......................18 TROUBLESHOOTING ....................19-20 MAINTENANCE........................21 SERVICE ..........................21 WARRANTY ........................21 PARTS & ACCESSORIES .................... 22-23 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 3: Safety Notes
A regular schedule of preventative ® maintenance by qualified personnel is highly recommended. Your authorized UNITRON distributor can arrange for this service. -
Page 4: Introduction
EXAMET-5 SERIES MICROSCOPE INTRODUCTION ® ® Congratulations on the purchase of your new UNITRON microscope. UNITRON microscopes are engineered and manufactured to the highest quality standards. Your microscope will last a lifetime if ® used and maintained properly. UNITRON microscopes are carefully assembled, inspected and tested by our staff of trained technicians in our New York facility. - Page 5 Field Diaphragm Adjustment Knobs Fine Field Diaphragm Focusing Knob Adjustment Ring Coarse Tension Focusing Knob Adjustment Y Axis Collar Variable Light Movement Knob Intensity Knob X Axis Movement Knob ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
-
Page 6: Components Diagrams
Condenser Focusing Power Bracket Group (ON/OFF) Switch Condenser Adjustment Knob Fine Focusing Knob Fuse Holders Variable Light Intensity Dial Power Cord Coarse Receptacle Focusing Knob Transmitted Illuminator Housing ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 7: Assembly
③ Condenser ④ Reflected Illuminator ⑦ ⑤ Trinocular Head ⑥ Objectives ⑦ Eyepieces ⑧ Reflected Illuminator Cable ⑨ Power Cord ⑤ ⑧ ④ ⑥ ① ② ⑨ ③ ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 8: Detailed Assembly Procedure
Tighten the condenser lock screw ③ and raise the condenser to its highest position by rotating the condenser knob ②. ⑤ ④ ① ③ ② Fig. 3 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... - Page 9 Rotate the coarse focusing knob to move the stage into its lowest position. Install the objectives ① into the objective nosepiece from the lowest magnification to the highest in a clockwise direction from the rear. ① Fig. 6 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 10 Insert the female end ① of the power cord into the power supply socket ② on the base of the stand. Plug the other end of the power cord into a grounded outlet. Fig. 8 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
-
Page 11: Illumination
① all the way in. ① To observe with the trinocular head, pull the light path Fig. 10 selection lever ① all the way out. ① ① Fig. 11 Fig. 12 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 12: Adjusting The Bracket
(tighten) or counterclockwise to decrease (loosen) the focus knob tension. After tension adjustment has been completed, always rotate both adjustment knobs in the same direction. ① Fig. 15 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 13: Adjusting The Diopter
① ② screw. Rotation angle: Fig. 18 For right hand, clockwise 90º, counterclockwise 20º. For Left hand, clockwise 20º, counterclockwise 90º. ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 14: Adjusting The Field Diaphragm (Reflected)
③ , then move the limit block according to the direction shown in Fig. 24 and tighten the lock screw when adjusted Fig. 22 to the appropriate position. ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 15: Using The Color Filter (Reflected)
Insert the polarizer ① into the top receptacle of the field diaphragm holder ② . (Fig. 25) Insert the analyzer into the analyzer slot ④ (Fig. 24). ② Fig. 25 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 16: Centering The Condenser (Transmitted)
Rotate the field diaphragm adjustment ring ② (Fig. 25) clockwise to enlarge the field diaphragm, counterclockwise to decrease it. ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 17: Adjusting The Aperture Diaphragm (Transmitted)
To insert a filter, place it as shown in Fig. 30 with the rough Fig. 29 side down. When not using a color filter, insert the blank filter into the filter slot. Fig. 30 ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 18: Using A Microscopy Camera
Plug the power cord into the back of the microscope and into the wall outlet. Turn on the microscope ( l ). Use only the appropriate fuse for replacement: 250v 3.15a (CAT# 142-30-03). ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 19: Troubleshooting
Diopter adjustment is wrong Adjust the diopter doesn’t The eyepiece for the right eye is different superimpose with Use the same eyepieces from the left one the left ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 20: Electrical System
The bulb will burn out soon Replace with a new one The bulb flickers or the brightness The wire doesn’t connect well Connect correctly is not stable ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 21: Maintenance
United States of America. All items returned for warranty repair must be sent freight prepaid and insured to Unitron Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America. For all foreign warranty repairs, return freight charges are the responsibility of the individual/company who returned the merchandise for repair. -
Page 22: Parts & Accessories
Parts & Accessories EXAMET-5 Metallurgical Microscope Series CATALOG # DESCRIPTION 14350 EXAMET-5 Reflected Illumination Trinocular viewing head with a 20/80 split (light distribution 100% binocular, binocular/trinocular 20%/80%); inclined 30⁰ and rotatable 360⁰ WF10x/23mm eyepieces with eyeguards Interpupillary distance adjustment range of 54-75mm... -
Page 23: Parts & Accessories
Neutral filter, 45mm O.D. 142-20-09 Simple (non-rotating) Polarizer, 30mm O.D. 142-20-10 Analyzer, 30mm O.D. (for Transmitted) 142-20-12 Simple Polarizer with 360⁰ rotation 142-30-03 250v 3.15 amp fuse, 5/pk 142-30-35 Dust cover v2016.2 UNITRON® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
