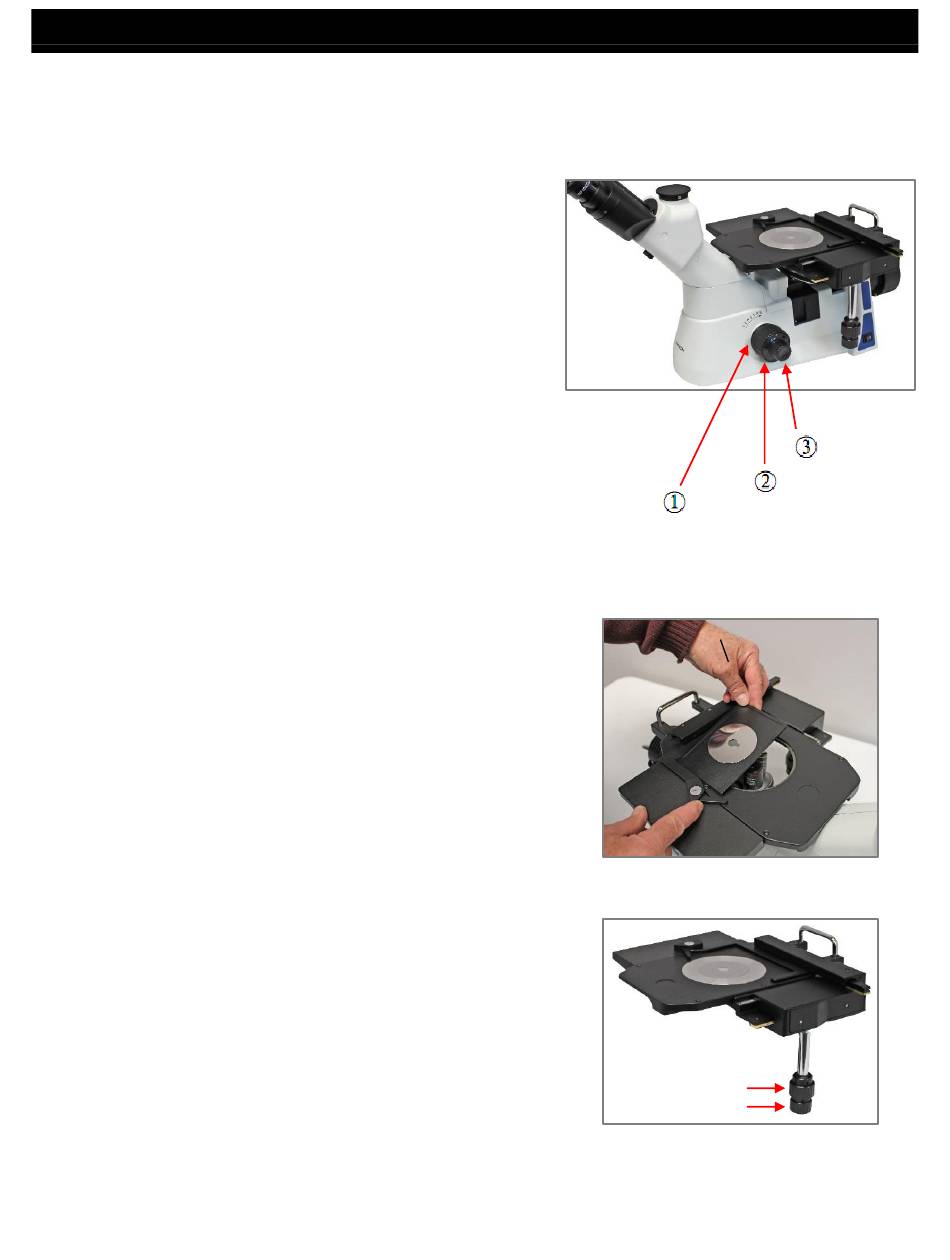

Adjusting the Focusing Tension (Fig. 10)
If the feel is very heavy when focusing with the focusing knobs
②③, or the specimen leaves the focus plane after focusing,
adjust the tension with the tension adjustment ring ①.
Turn the tension adjustment ring clockwise to loosen or
counterclockwise to tighten according to user preference.
Using the Stage Plates (Fig. 11 & 12)
With the mechanical stage (Fig. 12) and the included
rectangular metal stage plate (Fig. 11), a user can precisely
move the specimen by turning the Y ① and X ② stage
control knobs.
