- Page 1 CFM SERIES COMPARISON FORENSIC MICROSCOPE MANUAL 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) www.unitronusa.com • info@unitronusa.com...
-
Page 2: Table Of Contents
CAMERA CENTRATION ..................16 USING THE BULLET HOLDER ................17-19 SELECTING PROPER MAGNIFICATION OF DIGITAL CAMERA ......20 TROUBLESHOOTING ......................21 MAINTENANCE........................22 SERVICE ..........................22 WARRANTY ........................22 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 3: Safety Notes
A regular schedule of preventative maintenance by qualified service personnel is highly recommended. Your authorized UNITRON distributor can arrange for this service. -
Page 4: Introduction
Your microscope will last a lifetime if used and maintained properly. UNITRON microscopes are carefully assembled, inspected and tested by our staff of trained technicians in our New York facility. Careful quality control procedures ensure each microscope is of the highest quality prior to shipment. -
Page 5: Instrument Structure

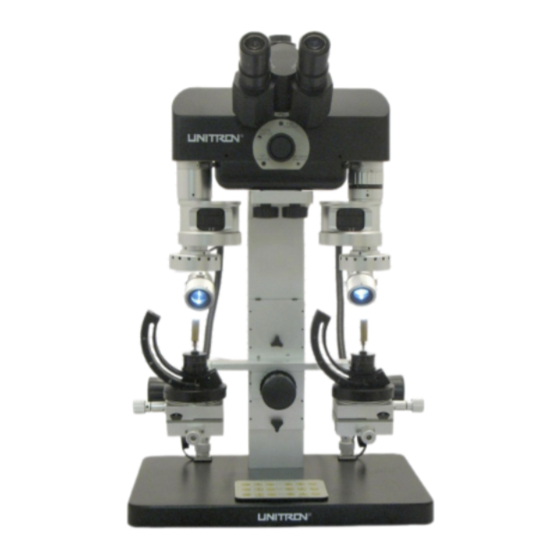

COMPARISON FORENSIC MICROSCOPE INSTRUMENT STRUCTURE - (Figure 1) CAT# 16206 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... - Page 6 COMPARISON FORENSIC MICROSCOPE UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 7 27. Front and Back Adjustment Knob 28. Left and Right Adjustment Knob 29. Socket for LED Ring Light 30. Set Screw 31. Long Case Holder 32. Observe Knob Changer UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 8 COMPARISON FORENSIC MICROSCOPE INSTRUMENT STRUCTURE - (Figure 2) CAT# 16205 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 9 COMPARISON FORENSIC MICROSCOPE UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 10 27. Front and Back Adjustment Knob 28. Left and Right Adjustment Knob 29. Socket for LED Ring Light 30. Set Screw 31. Long Case Holder 32. Observe Knob Changer UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
-
Page 11: Set Up
Gooseneck LED Light or Gooseneck Fluorescent Light or Remote Phosphor Gooseneck Light See Figure 1 and Figure 2, the Gooseneck Fluorescent Light (Figure 1, 8a) or the Gooseneck LED Light (Figure 2, 8) is secured to Socket (5). UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 12: Function And Operation
Connect the Polarizer with a Spot Lamp or a Transmitted Lamp, then screw the Analyzer on. Adjust the brightness and change the polarizing angle by rotating the Analyzer to get a polarizing effect. Analyzer Polarizer Figure 3 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 13: Light Control Panel
Light Control Panel -- (Figure 6) The REFL and RING can control the light from all three-pin plugs such as Gooseneck LED Spot Light, LED Ring Light, and Fluorescent Light. Figure 6 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 14: Using The Separation Line
If the separation line is like in Figure 7-(a), adjust the screw in the right hole. b. If it is like the line in Figure 7-(b), adjust the screw in the left hole. Figure 7 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 15: Adjusting Interpupillary Distance
6. Rotate the diopter collar to obtain the sharpest magnifications. focus. UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 16: Adjusing The Magnification
FOV. 11. Sequentially tighten each of the 3 centering set screws so as to maintain the Target image in the center of the monitor FOV. UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 17: Using The Bullet Holder
2. Install the Universal Holder base (6) onto the Mechanical Stage and secure it using the two screws (3) as shown in Figure 10. Universal Holder Mechanical Stage Figure 10 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... - Page 18 (29) (Figure 11). To inspect a sample with a large diameter, unscrew (11) and remove (30) (Figure 12). Figure 11 Figure 12 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 19 To adjust the big diameter sample, unscrew Figure 13 (9) and move (8) (Figure 12) forwards or backwards until you obtain a suitable position. Figure 14 Figure 15 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
-
Page 20: Selecting Proper Magnification Of Digital Camera
8 × Digital magnification of 8” monitor with 1/3” camera sensor = = 33.87 17 × Digital magnification of 17” monitor with 1/3” camera sensor = = 71.97 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com... -
Page 21: Troubleshooting
Check transformer, if it was damaged, replace it by contacting your Lamp does not work authorized UNITRON distributor Check lamp, if it is damaged, replace it by contacting your authorized UNITRON distributor Check whether service voltage matches with instrument voltage. If the ... -
Page 22: Maintenance
United States of America. All items returned for warranty repair must be sent freight prepaid and insured to UNITRON Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America. For all foreign warranty repairs, return freight charges are the responsibility of the individual/company who returned the merchandise for repair.
