Summary of Contents for Unitron TCS Pro 500

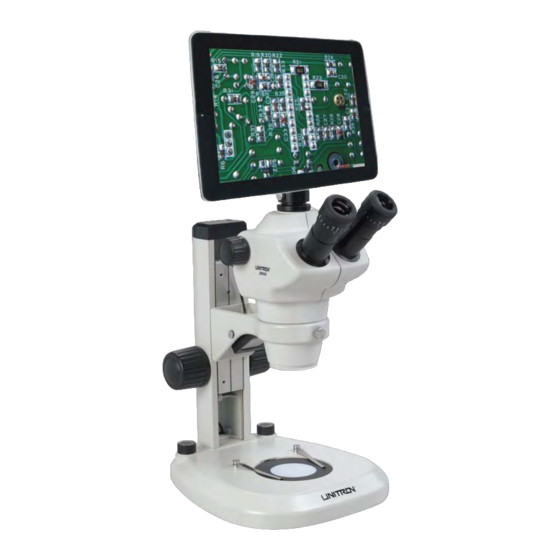

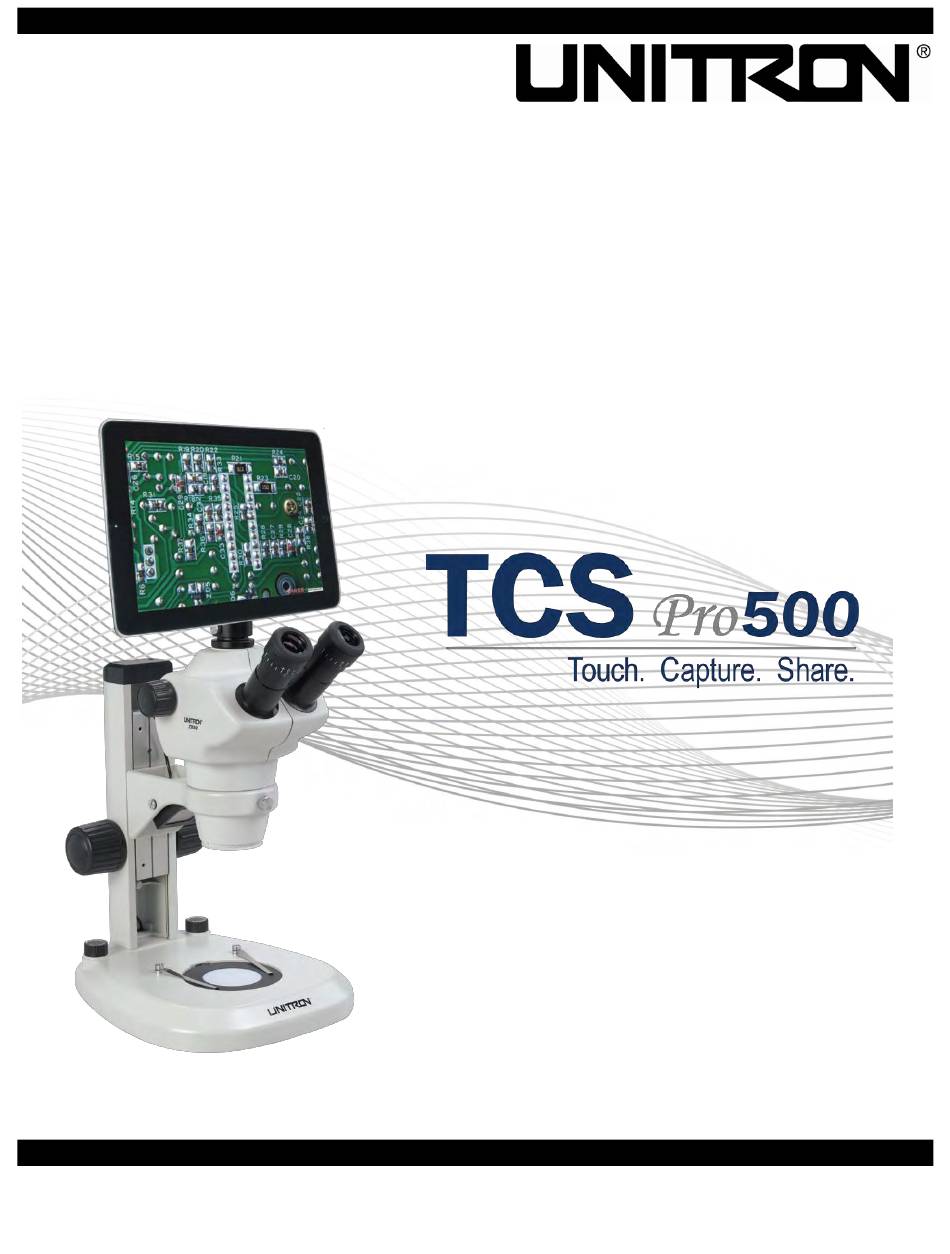

- Page 1 Tablet and Camera MANUAL 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) www.unitronusa.com • info@unitronusa.com...
-
Page 2: Table Of Contents
EYEPIECE ADAPTER INSTALLATION ..UNPACKING AND COMPONENTS ....4 SOFTWARE APPLICATIONS & OPERATION CARING FOR THE CAMERA LENS ....4 UNLOCKING THE TCS Pro 500 ....GETTING TO KNOW THE iMAGE PAD 500 USING THE CAMERA ................5 FRONT VIEW IMAGE CAPTURE OVERVIEW .... -
Page 3: Safety Notes
SAFETY NOTES This manual provides important safety information on the correct way to use this product. Please read thoroughly before using your TCS Pro 500 to avoid misuse and/or damage. The TCS Pro 500 to is a precision instrument; handle ... -
Page 4: Introduction
Your TCS Pro 500 arrived packed in a molded Styrofoam container. Do not discard the container: the Styrofoam container should be retained for reshipment of your TCS Pro 500 if needed. Avoid placing the TCS Pro 500 in dusty surroundings or in high temperature or humid areas as mold and mildew will form. Carefully remove the TCS Pro 500 from the Styrofoam container and place it on a flat, vibration-free surface and away from electromagnetic fields. -
Page 5: Front View
TCS Pro 500 Getting to Know the TCS Pro 500 Front View Multi-point capacitance Return Button touch screen Side Controls & Ports Side Buttons Please remove protective plastic cover before using the side ports. Power On/Off SIM Card Slot ... -
Page 6: Battery Maintenance & Charging
NOTES: If the TCS Pro 500 is not used for a long period of time, it must be charged at least once per month to avoid depleting the battery. It takes longer to charge the battery when operating the TCS Pro 500 at the same time. -
Page 7: Return Button
TCS Pro 500 Button Operations (continued) Return Button To return to the previous screen: PRESS the return button ONCE. To return to the Home Screen: PRESS HOLD return button. Volume Decrease (-) / Menu Button PRESS the Volume Decrease / Menu button ONCE to... -
Page 8: Volume Increase (+) / Search Button
Reset Button TCS Pro 500 freezes and the system cannot If the be shut down using normal methods, you can use a fine-shaped object (such as the end of a paper clip) to reset the system by pressing the reset button (See Side Controls on p. -
Page 9: Touch Screen
TCS Pro 500 Touch Screen The TCS Pro 500 is a 5-point touch screen – all operations can be achieved by touch One TOUCH Operation TOUCH the Applications icon on the right side of the screen to go to the main menu/applications screen. -
Page 10: Accessory Installation/Adapters
TCS Pro 500 Accessory Installation/Adapters The TCS Pro 500 is equipped with a standard C-type interface. It can be threaded on both C-mount and eyepiece adapters and is compatible with monocular, binocular, trinocular heads Connection Components C-Mount Adapters – 0.5x and 1x C-mount adapters are sold separately and can be purchased from your UNITRON distributor. -
Page 11: Eyepiece Adapter Installation
(continued) Installation Connection Via Eyepiece Adapter: Thread the upper end of the eyepiece adapter onto the TCS Pro 500 adapter (See (A) below). Insert the bottom end of the eyepiece adapter into the ocular tube with a diameter of Ф23mm. -
Page 12: Software Applications & Operation
Image Capture software. NOTE: To return to the Home Screen, PRESS the Return button on the right side of the TCS Pro 500 . ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com UNITRON... -
Page 13: Image Capture Overview
TCS Pro 500 Image Capture Software PREVIEW WHITE BALANCE VIDEO CAMERA SHUTTER (in Camera Mode) (in Video Mode) OVERVIEW PREVIEW： TOUCH the PREVIEW icon to go into the photo gallery to preview, share, delete and edit photos or videos. MANUAL WHITE BALANCE：... -
Page 14: Changing Camera Settings
TCS Pro 500 Image Capture Software (continued) SETTINGS: EXPOSURE SET GRID PICTURE SIZE FLICKER REDUCTION CONTRAST /SATURATION/EXPOSURE WHITE BALANCE CHANGING SETTINGS WHITE BALANCE： When “AUTO WHITE BALANCE” mode is selected, the color and brightness of an image will be adjusted to the best automatically according to the current lighting environment. - Page 15 TCS Pro 500 Image Capture Software (continued) EXPOSURE SET： Two Exposure set modes can be selected: Manual Mode and Auto Mode. When Auto Mode is selected, the exposure data will be adjusted automatically according to the current light environment. When Manual Mode is selected, you can change the exposure data.
- Page 16 NOTE: Video mode system default resolution is set to the highest resolution of 720P (1280 x 720). You can change the resolution to a lower setting (640 x 480) by the “HD” icon on the bottom right of the TCS Pro 500 screen and TOUCHING the D1 (640 x 480) –...
-
Page 17: Image Gallery
TCS Pro 500 Image Gallery IMAGE GALLERY: From the Applications screen, TOUCH the Gallery icon to go into the Gallery Preview. TOUCH any photo for 2 seconds, then TOUCH the pane on the top right corner of the photo or video – a green check mark will appear which indicates it has been selected. -
Page 18: File Storage
TCS Pro 500 File Storage There are three was to store images and videos on the TCS Pro 500 : the local storage, the micro SD Card slot, and the external USB Flash drive/disk storage. ES File Explorer: to access any of the... -
Page 19: Connecting To A Pc
CONNECT the TCS Pro 500 to your PC with a USB 2.0 cable via the mini USB 2.0 cable port on the side of the TCS Pro 500 . “Cancel” on 2. On the PC, CLICK the pop up window that reads “Windows needs to install driver... - Page 20 CLICK view files.” You can now locate files from the PC you want to copy to the TCS Pro 500 and vice versa using the drag and drop methods with your mouse. 8. When finished, on the TCS Pro 500 the “Turn off USB storage”...
