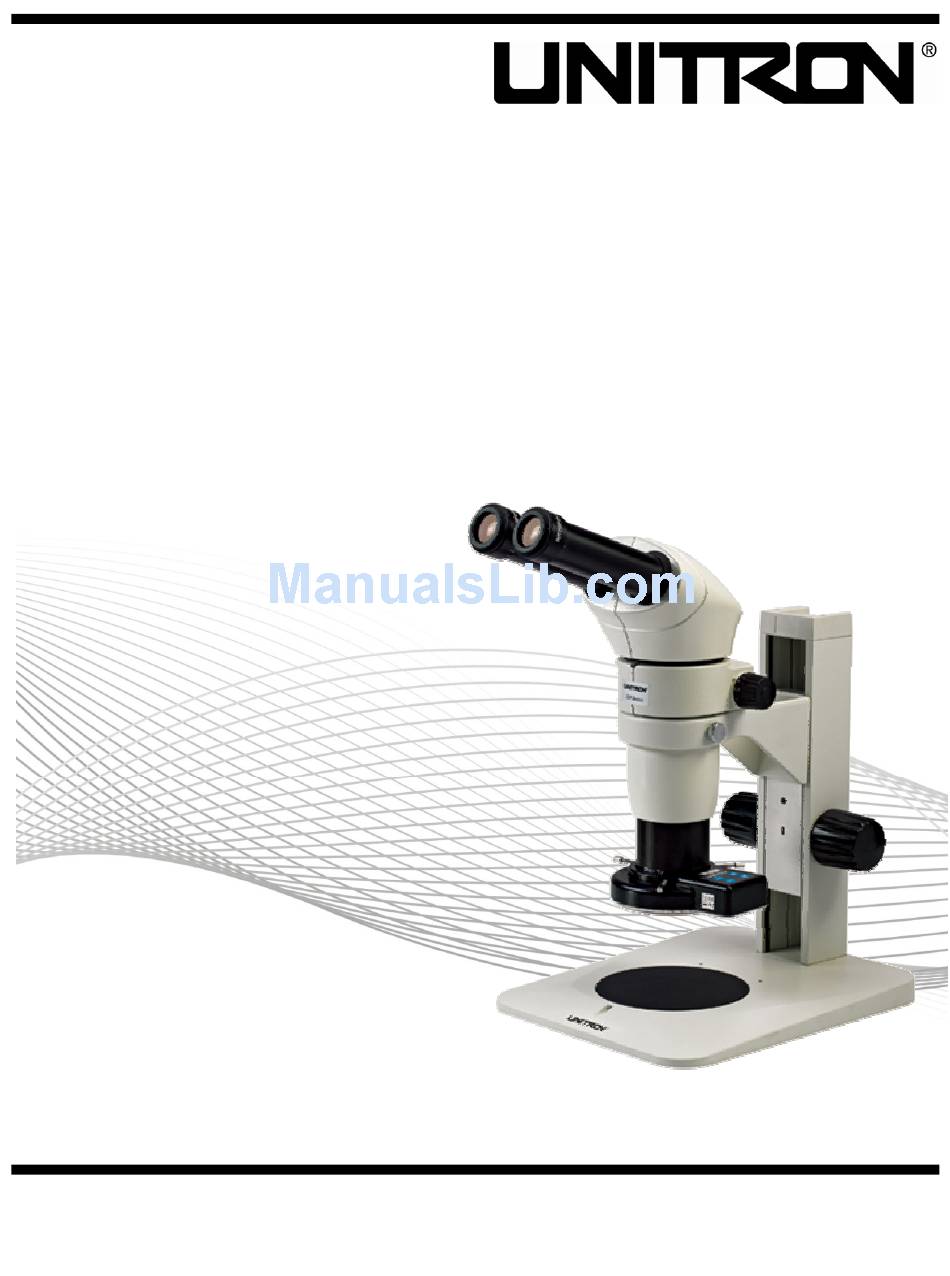

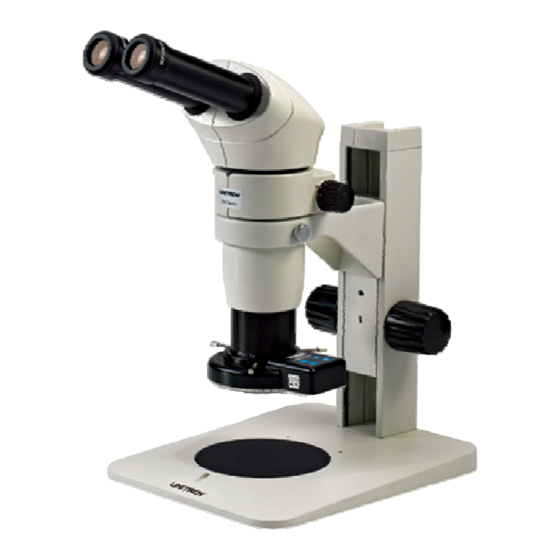

- Page 1 Z10 SERIES Z10 • Z8 • Z6 ZOOM STEREO MICROSCOPES MANUAL 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) www.unitronusa.com • info@unitronusa.com...
-
Page 2: Table Of Contents
Z10 SERIES STEREO MICROSCOPES CONTENTS SAFETY NOTES ........................3 CARE AND MAINTENANCE ....................3 INTRODUCTION ........................4 UNPACKING AND COMPONENTS ..................4 COMPONENT DIAGRAMS ....................5-7 ASSEMBLY .......................... 8 ADJUSTMENT AND OPERATION ADJUSTING BINOCULAR VIEWING HEAD ..............12 FOCUS ADJUSTMENT ....................13 INSTALLING THE BEAM SPLITTER ................ -
Page 3: Safety Notes
A regular schedule of preventative ® maintenance by qualified personnel is highly recommended. Your authorized UNITRON distributor can arrange for this service. -
Page 4: Introduction
Z10 SERIES STEREO MICROSCOPES INTRODUCTION ® ® Congratulations on the purchase of your new UNITRON microscope. UNITRON microscopes are engineered and manufactured to the highest quality standards. Your microscope will last a lifetime if ® used and maintained properly. UNITRON microscopes are carefully assembled, inspected and tested by our staff of trained technicians in our New York facility. - Page 5 Z10 SERIES STEREO MICROSCOPES Diopter Adjustment Rings Binocular Head Eyepieces Eyepiece Tubes Locking Screw for Viewing Head Zoom Knob Locking Screw for Optical Body Coarse Focus Knob Optical Body Fine Focus Knob Objective Lens Transmitted Illumination Adjustment Knob Reflected Illumination...
- Page 6 Z10 SERIES STEREO MICROSCOPES Tilting Ergo Binocular Viewing Head Ball Bearing Boom Stand Bonder Arm ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
- Page 7 Z10 SERIES STEREO MICROSCOPES Digital Camera C-mount Adapter Photo Tube Single Port Beam Splitter Optical Path Selector Knob Iris Diaphragm Focus Knob Stage Plate Locking Screw for Stage Plate Plain Stand ® UNITRON 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
-
Page 8: Assembly
Z10 SERIES STEREO MICROSCOPES ASSEMBLY The following photos show how to assemble the various modules in the order of assembly. When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. - Page 9 Z10 SERIES STEREO MICROSCOPES Mounting the Zoom Body 1. Carefully place the optical body into the focus mount and tighten the lock screw to secure the optical body in place. 2. Use caution not to over tighten the locking screw as this may cause damage to the instrument.
- Page 10 Z10 SERIES STEREO MICROSCOPES Mounting the Viewing Head 1. Insert the viewing head into the optical body and secure it into place using a 2mm allen key to tighten the screw. Installing the Eyepieces 1. Remove the dust caps from the eyepiece tubes.
- Page 11 Z10 SERIES STEREO MICROSCOPES Voltage Check Confirm that the input voltage indicated on the rear label of the microscope corresponds to your line voltage. The use of a different input voltage than indicated will cause severe damage to your microscope.
-
Page 12: Adjustment And Operation Adjusting Binocular Viewing Head
Z10 SERIES STEREO MICROSCOPES ADJUSTMENT AND OPERATION Adjusting Interpupillary Distance (Fig. 6) Adjusting Binocular Viewing Head Different users have different interpupillary distances (this distance is between the centers of the pupils of each eye). When the operator of the microscope changes, it will be necessary to adjust the interpupillary distance. -
Page 13: Focus Adjustment
Z10 SERIES STEREO MICROSCOPES Focus Adjustment Adjusting the Rotation Tension of the Focus Adjustment Knob (Fig. 8, Fig. 9) To adjust tension, hold both left and right focus adjustment knobs ① with both hands, hold the left knob (to prevent it from turning), and rotate... -
Page 14: Installing The Beam Splitter
Z10 SERIES STEREO MICROSCOPES Installing the Beam Splitter Place the beam splitter onto the top of the optical body by matching the groove of the of the beam splitter’s bottom and the securing screw of the optical body. Tighten the screw to secure the optical body and the beam splitter. -
Page 15: Installing The Iris Diaphragm
Z10 SERIES STEREO MICROSCOPES Installing the Iris Diaphragm 1. Remove the viewing head by loosening the allen screw that secures the head to the optical body. 2. Use caution to hold the viewing head as you loosen the screw so it does not fall. -
Page 16: Specifications
30-3.7 8X-65X 30-3.7 12X-97.5X 20-2.5 16X-130X 15-1.85 32.5 16X-130X 15-1.85 24X-195X 10-1.23 32X-260X 7.5-0.9 Z10 Series 10:1 Parallel Zoom Body EYEPIECE Objective Working WF 10X (Ø24mm) WF 15X(Ø16mm) WF 20X(Ø12mm) Lens Distance Total Visual Field Total Visual Field Total Visual Field... -
Page 17: Troubleshooting
Z10 SERIES STEREO MICROSCOPES TROUBLESHOOTING Under certain conditions, performance of this unit may be adversely affected by factors other than defects. If a problem occurs, please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact your local dealer for assistance. -
Page 18: Maintenance
UNITRON® distributor or UNITRON® at (631) 543-2000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to Unitron Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America.
