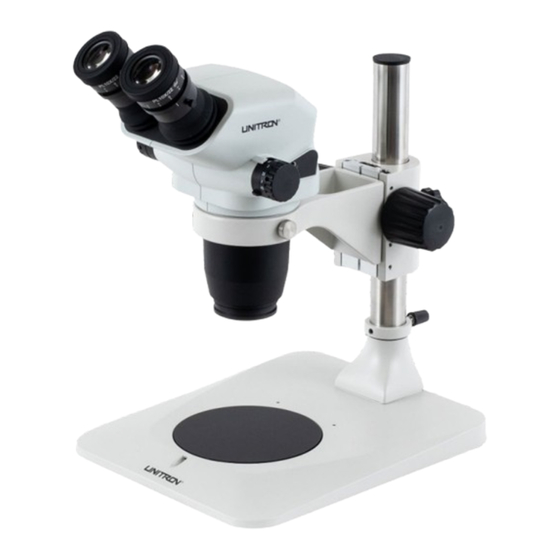

Z645 SERIES
ZOOM STEREO MICROSCOPE
MANUAL
73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F)
www.unitronusa.com • info@unitronusa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z645 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitron Z645 Series

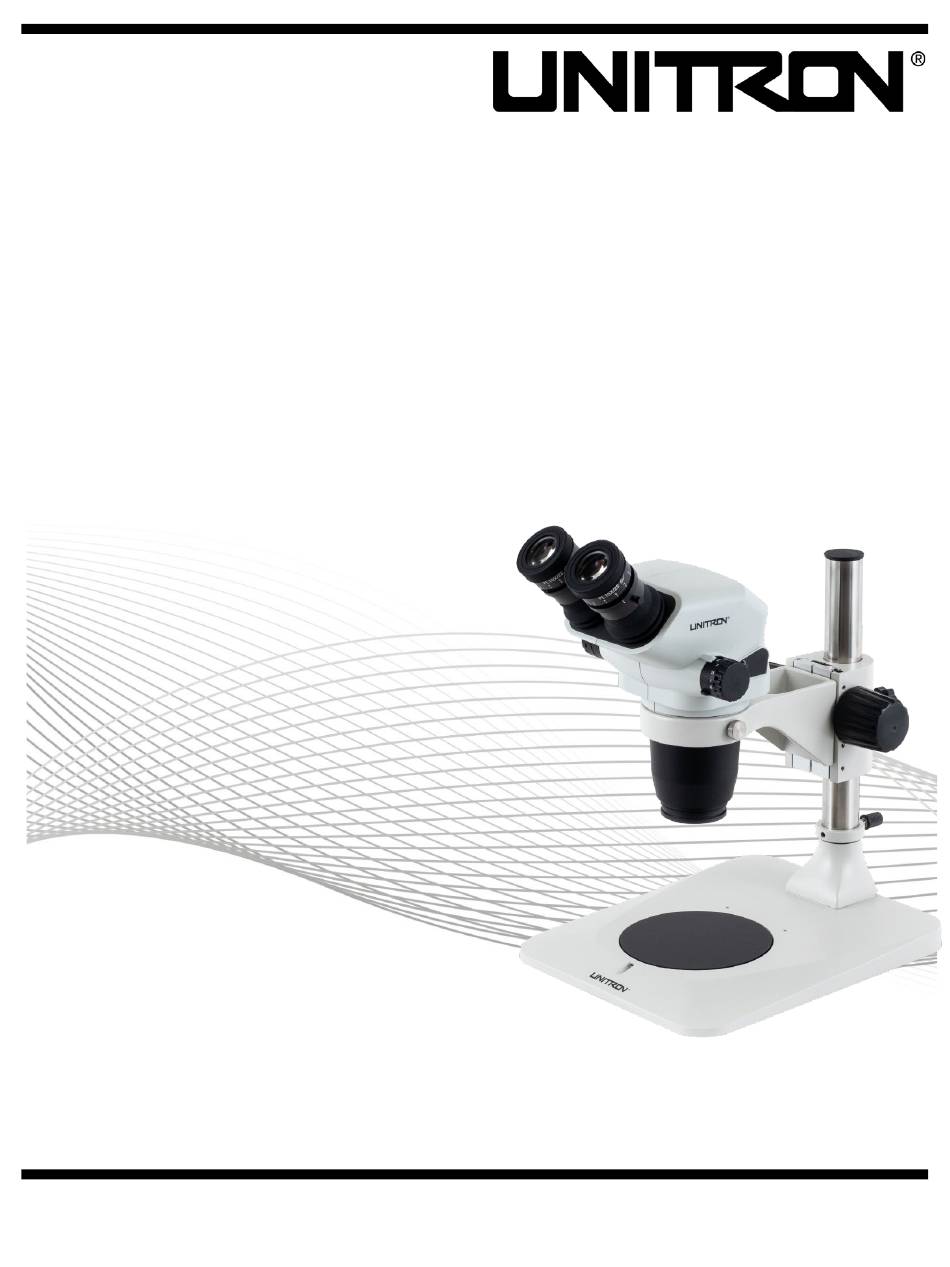

  • Page 1 Z645 SERIES ZOOM STEREO MICROSCOPE MANUAL 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) www.unitronusa.com • info@unitronusa.com...
  • Page 2: Table Of Contents

    DETAILED ASSEMBLY PROCEDURE ................6 ADJUSTMENT AND OPERATION ADJUSTING BINOCULAR VIEWING HEAD ..............8 FOCUS ADJUSTMENT ....................9 SPECIFICATIONS ......................10 TROUBLESHOOTING ......................11 MAINTENANCE........................12 SERVICE ..........................12 WARRANTY ........................12 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 3: Safety Notes

    A regular schedule of preventative maintenance by qualified service personnel is highly recommended. Your authorized UNITRON ® distributor can arrange for this service.
  • Page 4: Introduction

    Your microscope will last a lifetime if used and maintained properly. UNITRON microscopes are carefully assembled, inspected and tested by our staff of trained technicians in our New York facility. Careful quality control procedures ensure each microscope is of the highest quality prior to shipment.
  • Page 5: Assembly

    When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. Digital Camera Camera Adapter Eyepieces Trinocular Head (microscope body) Focus Mount Lock-screw Stand UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 6: Detailed Assembly Procedure

    3 Avoid placing the instrument in a dusty environment. When not in use, cover the microscope with the dust cover. 4 Keep the microscope on a flat and stable surface. Fig. 3 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 7 (See Fig. 6) ★ Rotate the camera tube, to make the camera Fig. 6 display image and the observation image in the same direction. UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 8: Adjustment And Operation Adjusting Binocular Viewing Head

    115mm, the binocular head bracket ⑤ can be mounted onto higher or lower positions according to your needs by removing the clamping bolt with the Allen wrench provided. UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 9: Focus Adjustment

    Before moving the microscope, be sure to remove any slide/samples. When moving the microscope, hold the stand and base as shown in Fig. 10 to keep it level. Fig. 11 UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 10: Specifications

    Camera Adapters Optional: 0.35x, 0.5x, 0.65x, 1.0x C-mount adapters; photo tube (trinocular model only) Digital Cameras Excelis™ and Teledyne Lumenera® digital cameras UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 11: Troubleshooting

    Loosen it to a suitable position The image is obscure because of the The focusing knob is to o loosen Tighten it to a suitable position head slipping down during observation UNITRON ® 73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com...
  • Page 12: Maintenance

    UNITRON distributor or UNITRON at (631) 543-2000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to Unitron Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America.
