RTX1000/2000, SPX1200T

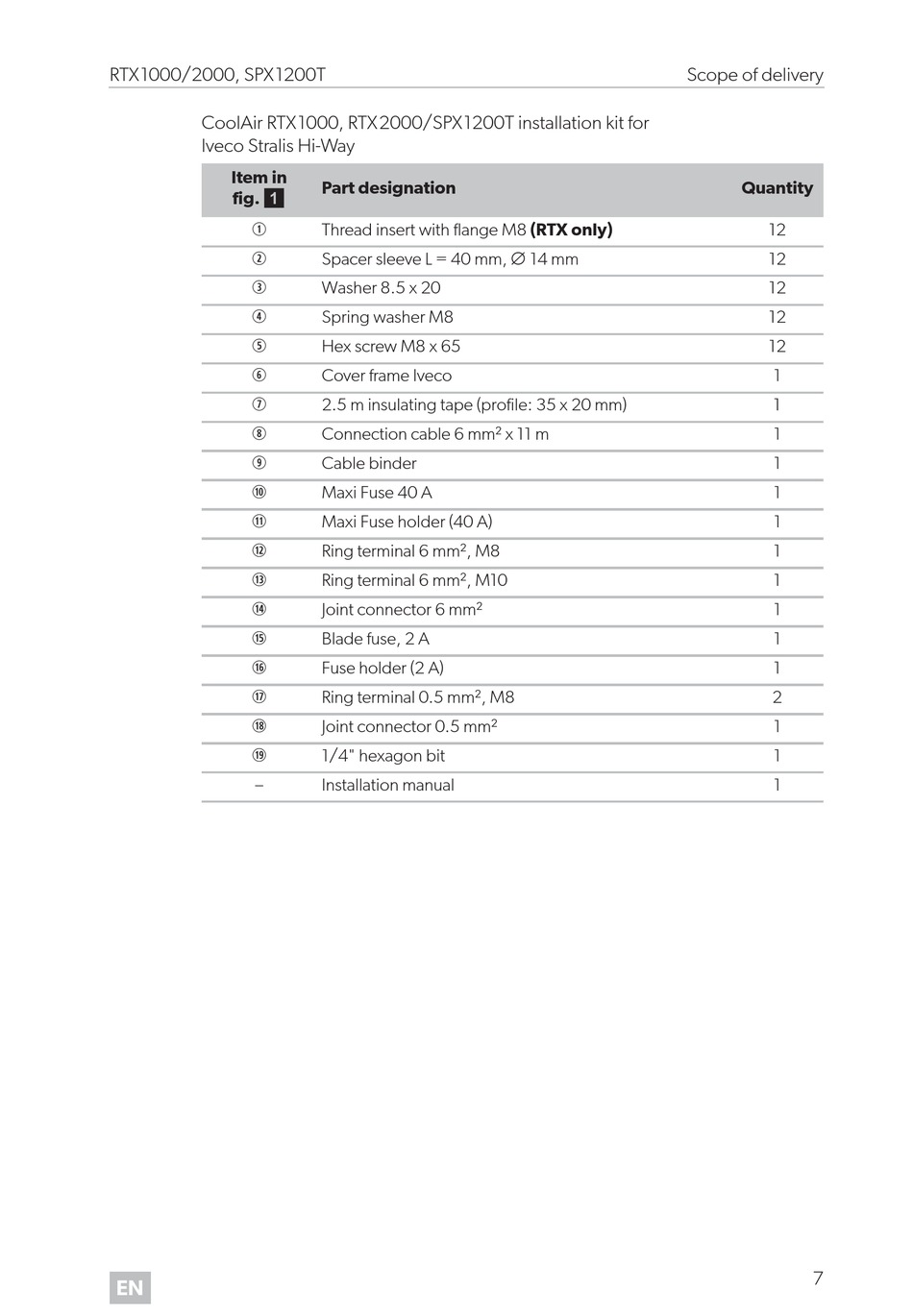

CoolAir RTX1000, RTX2000/SPX1200T installation kit for
lveco Stralis Hi-Way
Item in
fig. 1
–
EN
Part designation
Thread insert with flange M8 (RTX only)
Spacer sleeve L = 40 mm, ∅ 14 mm
Washer 8.5 x 20
Spring washer M8
Hex screw M8 x 65
Cover frame Iveco
2.5 m insulating tape (profile: 35 x 20 mm)
Connection cable 6 mm² x 11 m
Cable binder
Maxi Fuse 40 A
Maxi Fuse holder (40 A)
Ring terminal 6 mm², M8
Ring terminal 6 mm², M10
Joint connector 6 mm²
Blade fuse, 2 A
Fuse holder (2 A)
Ring terminal 0.5 mm², M8
Joint connector 0.5 mm²
1/4" hexagon bit
Installation manual
Scope of delivery
Quantity
12
12
12
12
12
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
7
