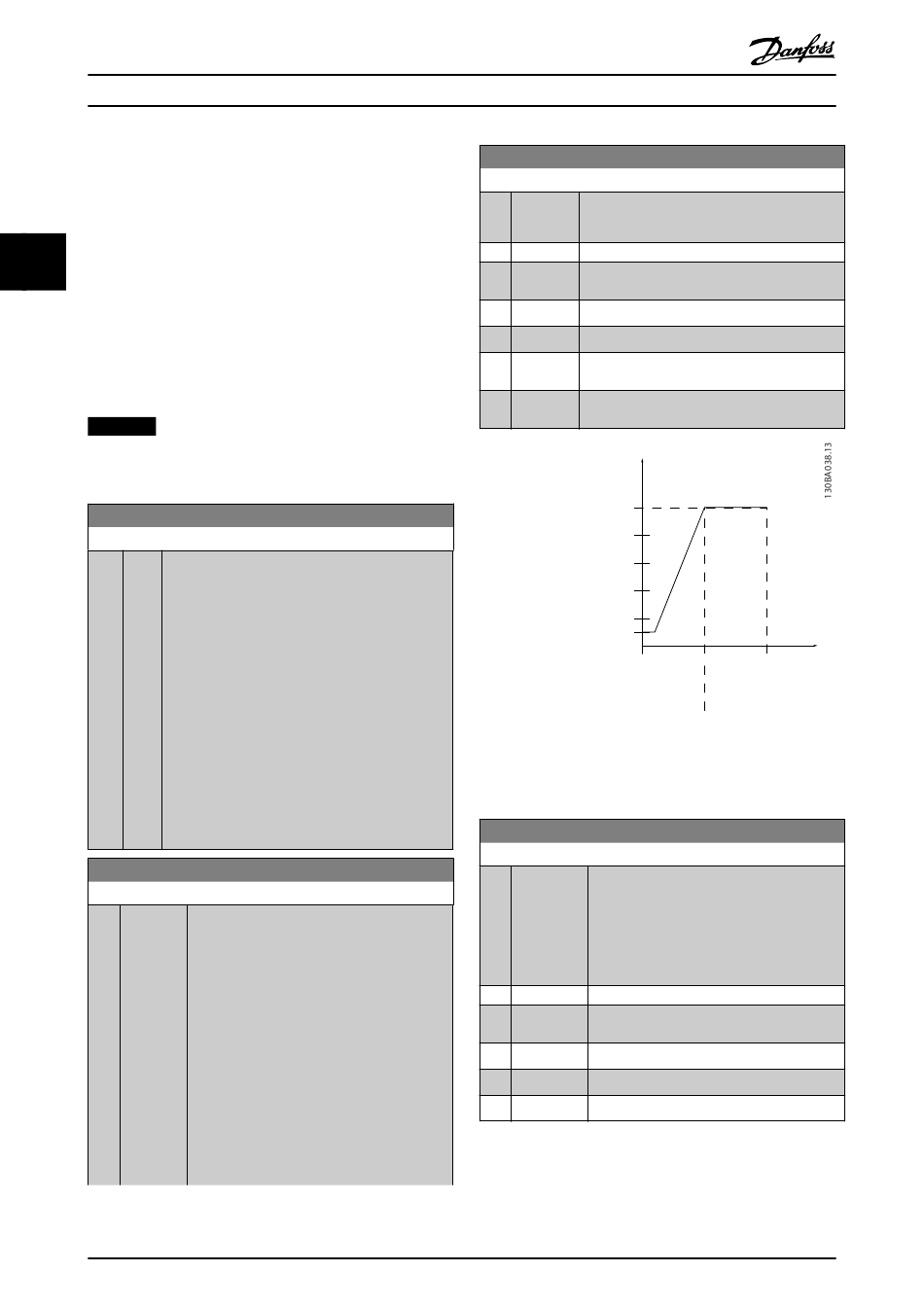

Parameter Descriptions
3.8 Parameters: 6-** Main Menu - Analog
In/Out
3.8.1 6-0* Analog I/O Mode
3 3
Parameter group for setting up the analog I/O configu-
ration.
The frequency converter is equipped with 2 analog inputs:
•
Terminals 53
•
Terminals 54
The analog inputs can be allocated freely to either voltage
(0–10 V) or current input (0/4–20 mA).
NOTICE
Thermistors may be connected to either an analog or a
digital input.
6-00 Live Zero Timeout Time
Range:
10 [1 - Enter the live zero time-out time period. Live zero
s 99 s] time-out time is active for analog inputs, i.e.
*
terminal 53 or terminal 54, used as reference or
feedback sources. If the reference signal value
associated with the selected current input drops
below 50% of the value set in
For a time period longer than the time set in
parameter 6-00 Live Zero Timeout Time, the function
selected in parameter 6-01 Live Zero Timeout
Function is activated.
6-01 Live Zero Timeout Function
Option:
82
Function:
•
Parameter 6-10 Terminal 53 Low Voltage.
•
Parameter 6-12 Terminal 53 Low Current.
•
Parameter 6-20 Terminal 54 Low Voltage.
•
Parameter 6-22 Terminal 54 Low Current.
Function:
Select the timeout function. The function set in
6-01 Live Zero Timeout Function is activated, if
the input signal on terminal 53 or 54 is below
50% of the value in
•
6-10 Terminal 53 Low Voltage.
•
6-12 Terminal 53 Low Current.
•
6-20 Terminal 54 Low Voltage.
•
6-22 Terminal 54 Low Current.
or for a time period defined in
parameter 6-00 Live Zero Timeout Time. If several
time-outs occur simultaneously, the frequency
converter prioritises the time-out functions as
follows:
Danfoss A/S © 03/2015 All rights reserved.
®
VLT HVAC Drive FC 102
6-01 Live Zero Timeout Function
Option:
[0] Off
*
[1] Freeze
output
[2] Stop
[3] Jogging
[4] Max.
speed
[5] Stop and
trip
Par 6-xx
High Ref./
Feedb. Value'
Par 6-xx
Low Ref./
Feedb. Value'
Illustration 3.29 Live Zero Conditions
6-02 Fire Mode Live Zero Timeout Function
Option:
[0] Off
*
[1] Freeze
output
[2] Stop
[3] Jogging
[4] Max. speed
Function:
1. 6-01 Live Zero Timeout Function.
2. 8-04 Control Word Timeout Function.
Frozen at the present value.
Overruled to stop.
Overruled to jog speed.
Overruled to max. speed.
Overruled to stop with subsequent trip.
Ref./Feedback
[RPM]
1500
1200
900
600
300
150
1 V 5 V
Par 6-xx
'Low Voltage'or
'Low Current'
Par 6-xx
'High Voltage'or
'High Current'
Function:
Select the time-out function when Fire mode
is active. The function set in this parameter is
activated if the input signal on analog inputs
is lower than 50% of the low value for a time
period defined in parameter 6-00 Live Zero
Timeout Time.
Frozen at the present value.
Overruled to stop.
Overruled to jog speed.
Overruled to max. speed.
10 V
[V]
Analog input
