NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044
©Premier Mounts 2009
9530-002-021-06

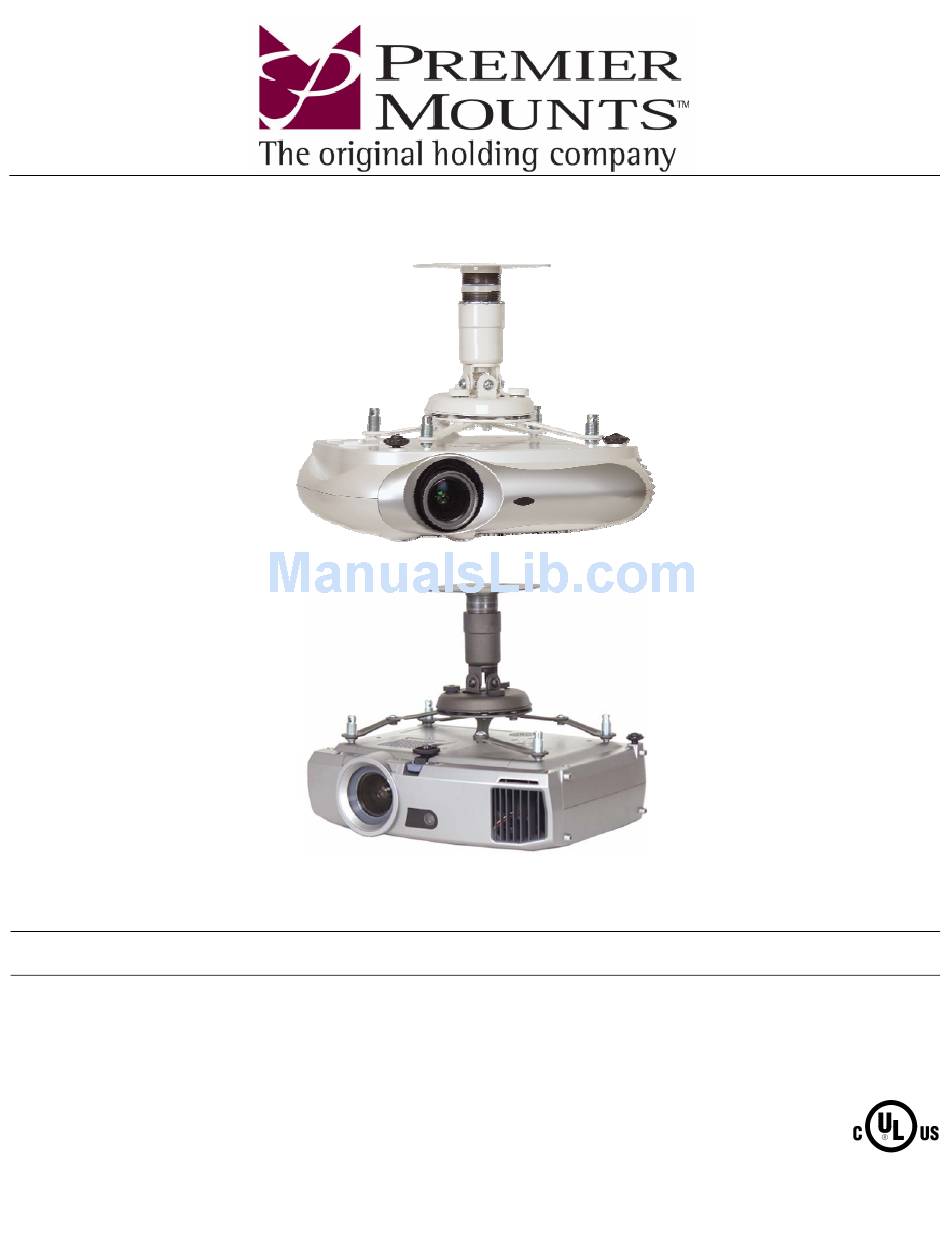

INSTALLATION INSTRUCTIONS
PBC UNIVERSAL PROJECTOR MOUNT
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
PBC- UMW (White)
PBC-UMS (Black)
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts PBC- UMW
Summary of Contents for Premier Mounts PBC- UMW
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS PBC- UMW (White) PBC-UMS (Black) PBC UNIVERSAL PROJECTOR MOUNT NORTH AMERICA EUROPE 3130 East Miraloma Avenue Swallow House, Anaheim, CA 92806 USA Shilton Industrial Estate, USA and Canada – Shilton, Coventry, England CV79JY Phone: 800-368-9700 Phone: +44 (0) 2476 614700... -
Page 2: Table Of Contents
PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. Indicates that the power plug is to be disconnected Contact Premier Mounts with any questions. from the power outlet. Safety precautions must be taken at all times. -
Page 3: Parts List
This mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. Universal... - Page 4 PBC UNIVERSAL PROJECTOR MOUNT Single Wooden Stud Mounts Option 1 Solid Structure Mounting Points M3 Allen Wrench Allen Wrench 1.5” nipple (NTP) Tension Knobs Safety Knob Security Screws Leveling Screws Universal Mounting bracket Leg Assembly Projector (not included) Tri-Lock Opening NOTE: The four (two-piece) leg assemblies can be used as single leg or any combination...
-
Page 5: Features
PBC UNIVERSAL PROJECTOR MOUNT Features Congratulations on your recent purchase of your PBC Universal Projector Mount. This mounting system is designed for projectors weighing 60lbs. (27.27kg) or less. The mount is easy to install and is loaded with additional installation features built into the mount. These features allow you to optimize the projector’s position to the screen for the best projector performance and picture quality. -
Page 6: Projector Preparation
PBC UNIVERSAL PROJECTOR MOUNT Projector Preparation Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the projector. THE PROJECTOR IS FRAGILE. HANDLE WITH CARE AT ALL TIMES. Review the projectors manufacture’s operation manual and refer to the ceiling mounting section of the operator’s manual. - Page 7 PBC UNIVERSAL PROJECTOR MOUNT Upper Assembly Tension Knobs Safety Knob Rotate 180° To unlock Tri-Lock Opening Figure 2. Mount Preparation Page 7 Installation Manual...
-
Page 8: Bracket Installation
PBC UNIVERSAL PROJECTOR MOUNT Bracket Installation Only attach to the projector manufacturer’s specified mounting points on the projector chassis with a minimum of three mounting legs. Please follow all safety instructions specified by the projector manufacturer as well as the safety instructions outlined in this manual. The two-piece mounting legs are designed to allow for the positioning of each leg around projector air vents located on the base of the projector. -
Page 9: Leveling The Mounting Bracket
PBC UNIVERSAL PROJECTOR MOUNT Leveling the Mounting Bracket Secure but do not over tighten the mounting hardware. Failure to do so will result in damaging the threads in the projector. Step 1. Rotate the leveling barrels to level the mounting bracket. Step 2. -
Page 10: Securing The Upper Assembly Ceiling Plate
PBC UNIVERSAL PROJECTOR MOUNT Securing the Upper Assembly Ceiling Plate Review your projector’s owner’s manual to determine what distance is recommended from the front of the lens to the edge of the screen for best picture ratio. However in most home theater and office ceiling mount installations this is not practical as the projector would be to low within the room. -
Page 11: Securing The Projector To The Upper Assembly
PBC UNIVERSAL PROJECTOR MOUNT Securing the Projector to the Upper Assembly Step 1. Make sure the three-knurl knobs are loosened to fully expose to the “tri-lock” mounting plate in the base of the upper assembly. Step 2. Carefully lift the projector and insert the mounting bracket mating special tri-lock cutout into the mating portion of the upper assembly. -
Page 12: Final Adjustments
PBC UNIVERSAL PROJECTOR MOUNT Final Adjustments Step 1. With the projector secured in the mount and power on and signal supplied to the projector you can now proceed with the final height, tilt, roll and yaw to optimize the projected image. Wooden Stud The height can be adjusted by rotating the Ceiling Structure... -
Page 13: Plastic Cap Installation
PBC UNIVERSAL PROJECTOR MOUNT Plastic Cap Installation Step 1. Once all the final adjustments have been finished, install the plastic caps on the leveling barrels (Figure 8). Figure 8. Plastic Cap Installation Page - 13 - Installation Manual... -
Page 14: Technical Specifications
PBC UNIVERSAL PROJECTOR MOUNT Technical Specifications All measurements are in inches (mm) 1.5” (NPT) Nipple Figure 9. Technical Dimensions Installation Manual Page - 14 -... -
Page 15: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
