Screed Program setting and starting
The Screed Program contains factory-set specifications which
can, however, be individually adapted.
Screed Program The day on which the screed function is
activated does not count towards the runtime of the screed
programme. The 1st. The day begins with the change of the day
at 00:00. On the day of activation we heat the remaining time at
the programme of the first day.
● Enter the expert code (see section 3.6.1).

The "Setup" level is displayed after entering.
● Using the rotary push button, select and check the param-
eters [Interlink fct] and [Room thermostat] whether they are
deactivated (see tab. 5-1).

Both parameters must be on "Off" before starting the
screed function.
● Press the Exit key briefly.

An overview is displayed.
● Select the "HC Configuration" level with the rotary switch.

An overview is displayed.
● Select the [Screed Program] parameter using the rotary
switch.
● Check the Screed Program settings and adjust to the stipula-
tions provided for the screed by the manufacturer, if
necessary (see fig. 3-20).
– The setting range is always between 0.0 and 65 °C.
– The steps are 1 °C.
Day Factory setting
1 - 3 25 °C
4 - 7 55 °C
8 25 °C
9 40 °C
Tab. 3-11 Presettings Screed Program
● Press the Exit key briefly.

An overview is displayed.
● Select the "Screed" parameter using the rotary switch.
● Confirm the changes with a brief push of the rotary switch.

The setting for the parameter is displayed.
● Using the rotary switch, set the parameter for the function to
"On" and confirm by pressing it quickly (see fig. 3-20).

Screed Program starts.
After expiry of the Screed Program the Control RoCon HP again
operates in the previously set operating mode. Unless configured
previously, the following tasks need to be carried out in con-
clusion.
a) When connecting without a room station:
● Set the heating characteristic curve or the inflow target
temperature.
b) When connecting with a room station:
● Activate the room station.
● Set the heating characteristic curve or the inflow target
temperature. If required, activate the parameter [Room
Influence] and set the target room temperature.
Operating instructions
26
Day Factory setting
10 - 19 55 °C
20 40 °C
21 25 °C
22 - 26 -
Configuration
Setup
System Configuration
Screed
Off
T-HS
Screed
On
T-HS
Screed

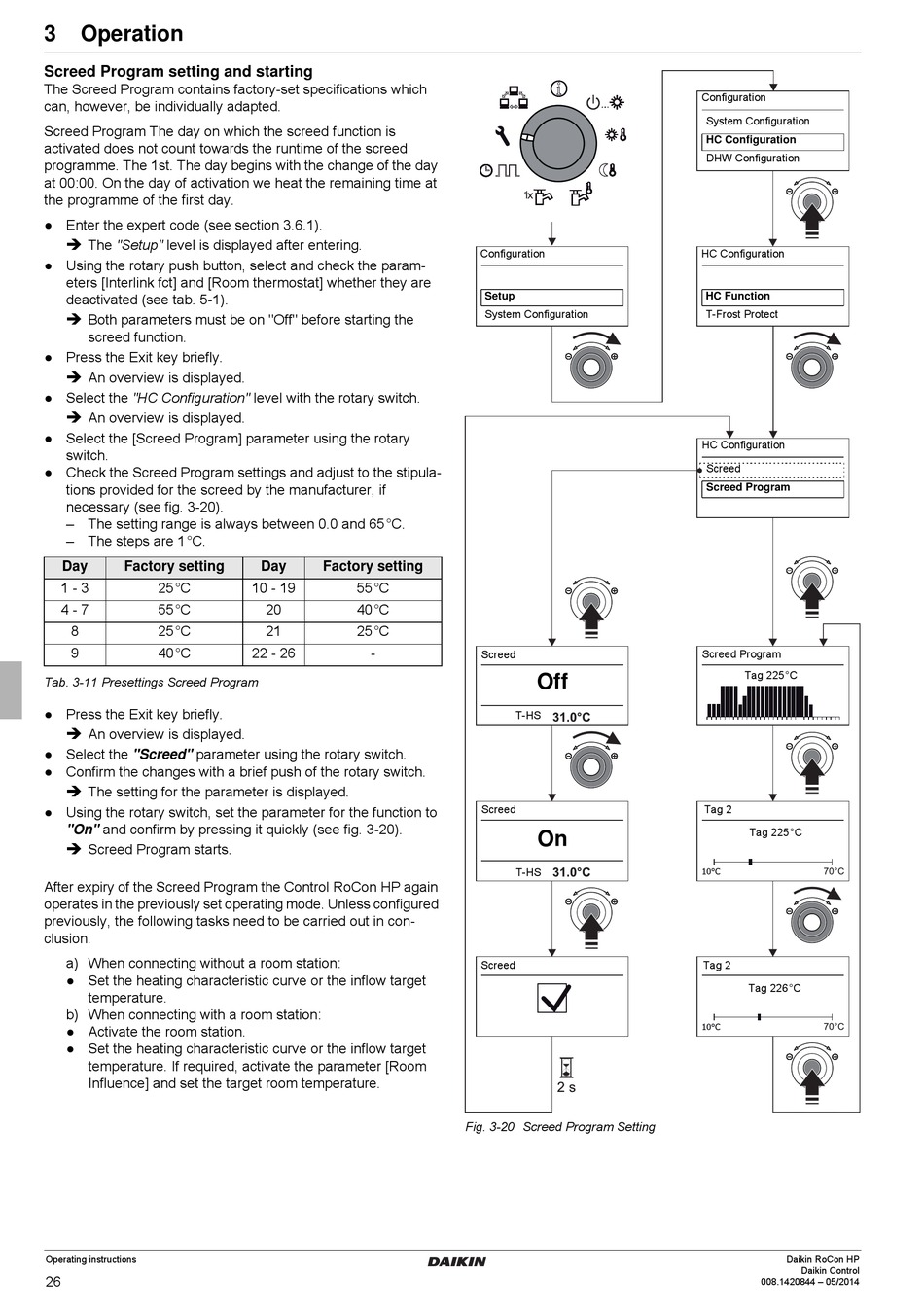

Fig. 3-20 Screed Program Setting
