General Information on Wiring

Wiring meters to record self-consumption

3�3�2 Meter connection options for bi-directional recording of the total con-

sumption via only an RS485 interface�

If there is feed-in in a sub-distribution, the option mentioned above can be used. In this

case, the the amount of feed-in power and power obtained from the grid can be recorded with a bi-direc-

tional meter. With this,

the Solar-Log™ can calculate the consumption.

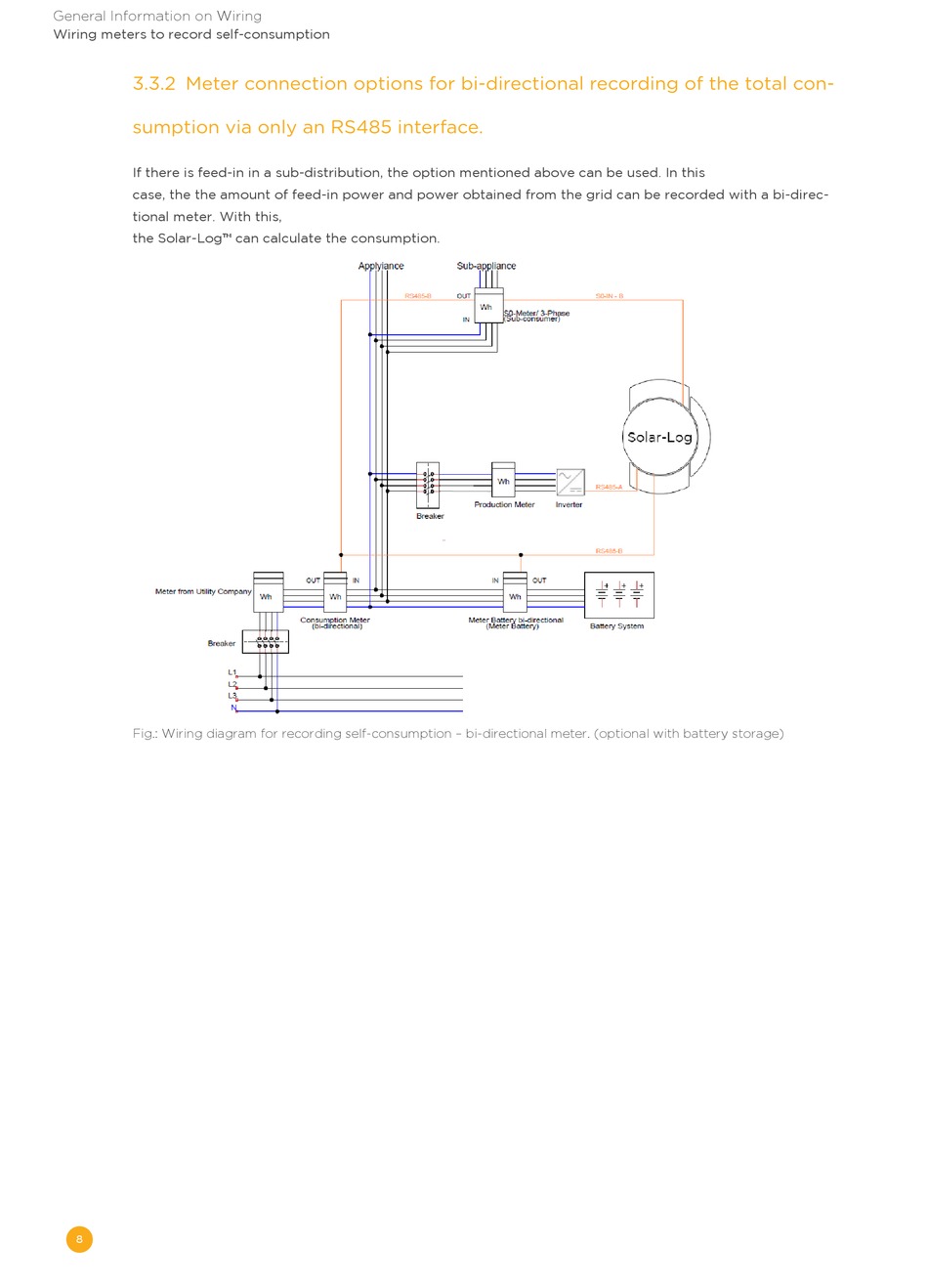

Fig.: Wiring diagram for recording self-consumption – bi-directional meter. (optional with battery storage)
