General Information on Wiring

Wiring meters to record self-consumption

3�3�1

Meter connection options to record the total consumption via an

RS485/S0 interface�

This meter has to measure the total consumption of the house.

The meters installed by grid operators, or two-way meters, cannot be used to implement

this function.

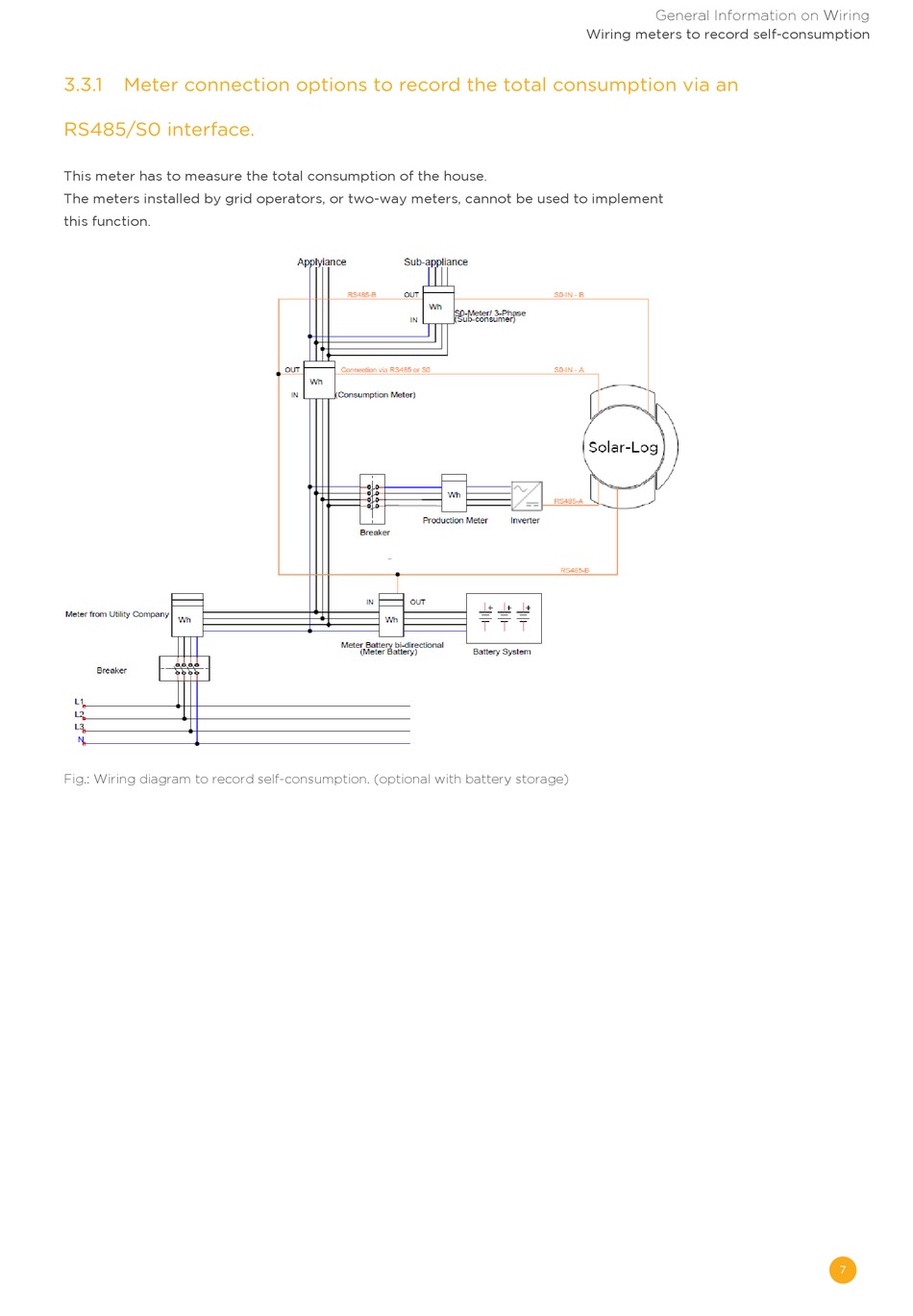

Fig.: Wiring diagram to record self-consumption. (optional with battery storage)
