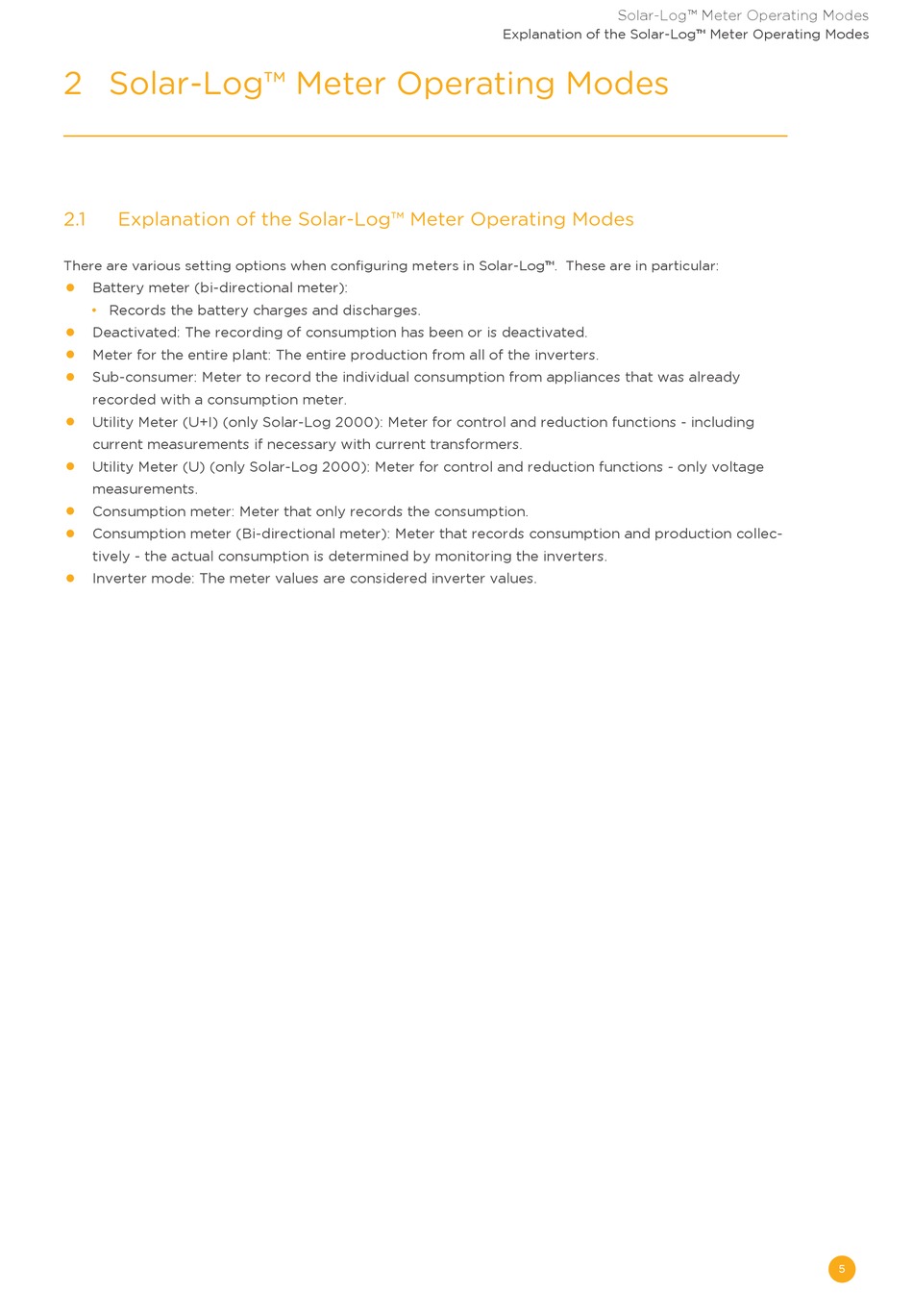

2 Solar-Log™ Meter Operating Modes
2�1 Explanation of the Solar-Log™ Meter Operating Modes
There are various setting options when configuring meters in Solar-Log™. These are in particular:
•
Battery meter (bi-directional meter):
•
Records the battery charges and discharges.
•
Deactivated: The recording of consumption has been or is deactivated.
•
Meter for the entire plant: The entire production from all of the inverters.
•
Sub-consumer: Meter to record the individual consumption from appliances that was already
recorded with a consumption meter.
•
Utility Meter (U+I) (only Solar-Log 2000): Meter for control and reduction functions - including
current measurements if necessary with current transformers.
•
Utility Meter (U) (only Solar-Log 2000): Meter for control and reduction functions - only voltage
measurements.
•
Consumption meter: Meter that only records the consumption.
•
Consumption meter (Bi-directional meter): Meter that records consumption and production collec-
tively - the actual consumption is determined by monitoring the inverters.
•
Inverter mode: The meter values are considered inverter values.
