Expanding an
Existing Network
DUA1640-5AAA02
Connecting to Other Stacks and Hubs

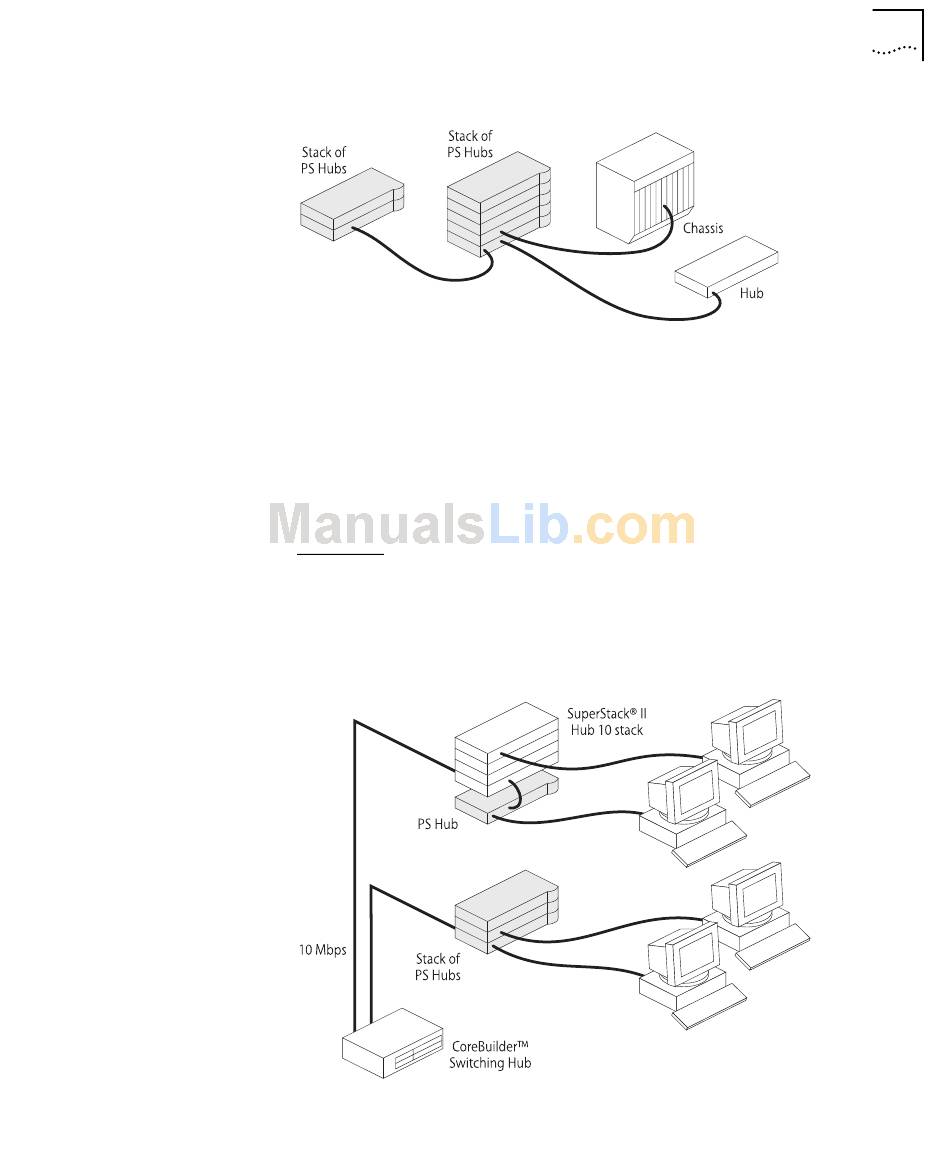

Figure 1-3
You can add PS Hubs to your existing network to expand the number
of user connections. Each PS Hub has its own built-in management
which is distributed throughout the PS Hubs in the stack. This provides
fault tolerance because there is no single point of failure; all hubs have
management capability (should they become isolated).
Figure 1-4 shows how PS Hubs can be added to an existing network
(the network is a stack of SuperStack
The hubs create more ports now, and allow for further growth in the
future. The PS Hubs are connected to a switch so that communication
between them is controlled.

Expanding an Existing Network

Figure 1-4
How You Can Use the PS Hub
® II Hub 10 units in this example).
1-5
