Selecting Your Management Access Method (Windows '95 and Windows NT only)
Selecting Your
Management
Access Method
(Windows '95 and

Windows NT only)

Quick Config
Manager Window
Map
DUA1640-5AAA02
Windows '95 and Windows NT allow you to manage the stack over the
network (in-band) using Quick Config Manager. To manage the stack
over the network, the stack must have an IP address and IP must be
configured on your management station. Refer to the Windows '95 or
Windows NT documentation for information on configuring IP for your
management station.
To select the communication method you want Quick Config Manager
to use:
1 From the File menu, select Device Access.
Quick Config Manager displays the Device Access dialog box, as shown
in Figure B-1.

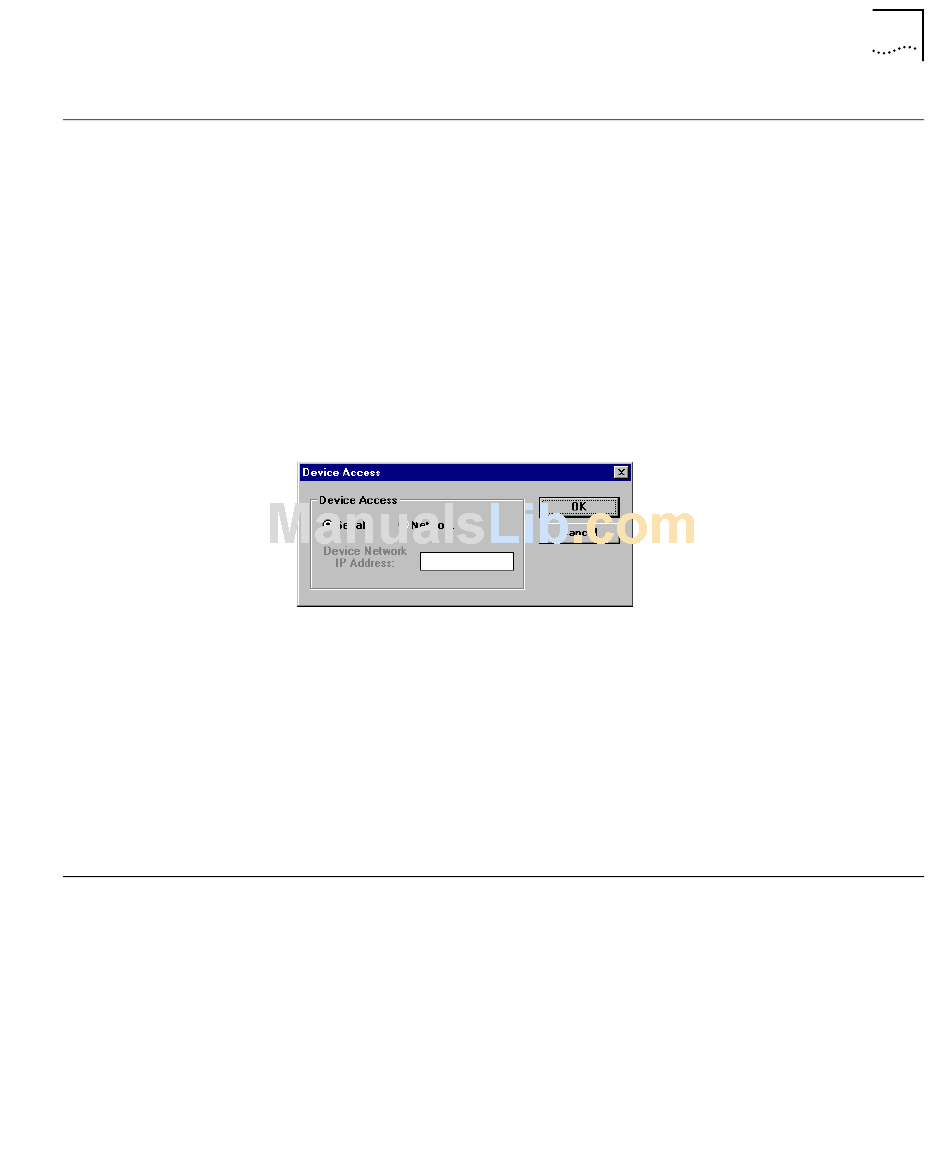

Figure B-1 Device Access Dialog Box
2 Select the access method.
3 Enter the IP Address of the stack, if network access is required.
4 Click OK.
Quick Config Manager performs a Reset View. The access method and
IP address are stored and used the next time Quick Config Manager is
run.
Figure B-2 (over the page) shows how all of the Quick Config Manager
windows are accessed. This diagram also appears on the Quick
Reference Guide. The numbers at the top right-hand side of the
windows refer to the pages in this chapter that describe the windows.
B-5
