Health Pages

Segment Graph

DUA1640-5AAA02
This section describes the fields that appear on the Segment Graph
page in the Health category.
This page shows two graphs for a segment in a unit in the stack.
The first graph shows information for the last hour, the second graph
shows information for the last 48 hours, as shown in Figure 7-16.
This page is only available if there is a PS Hub 50 in the stack.

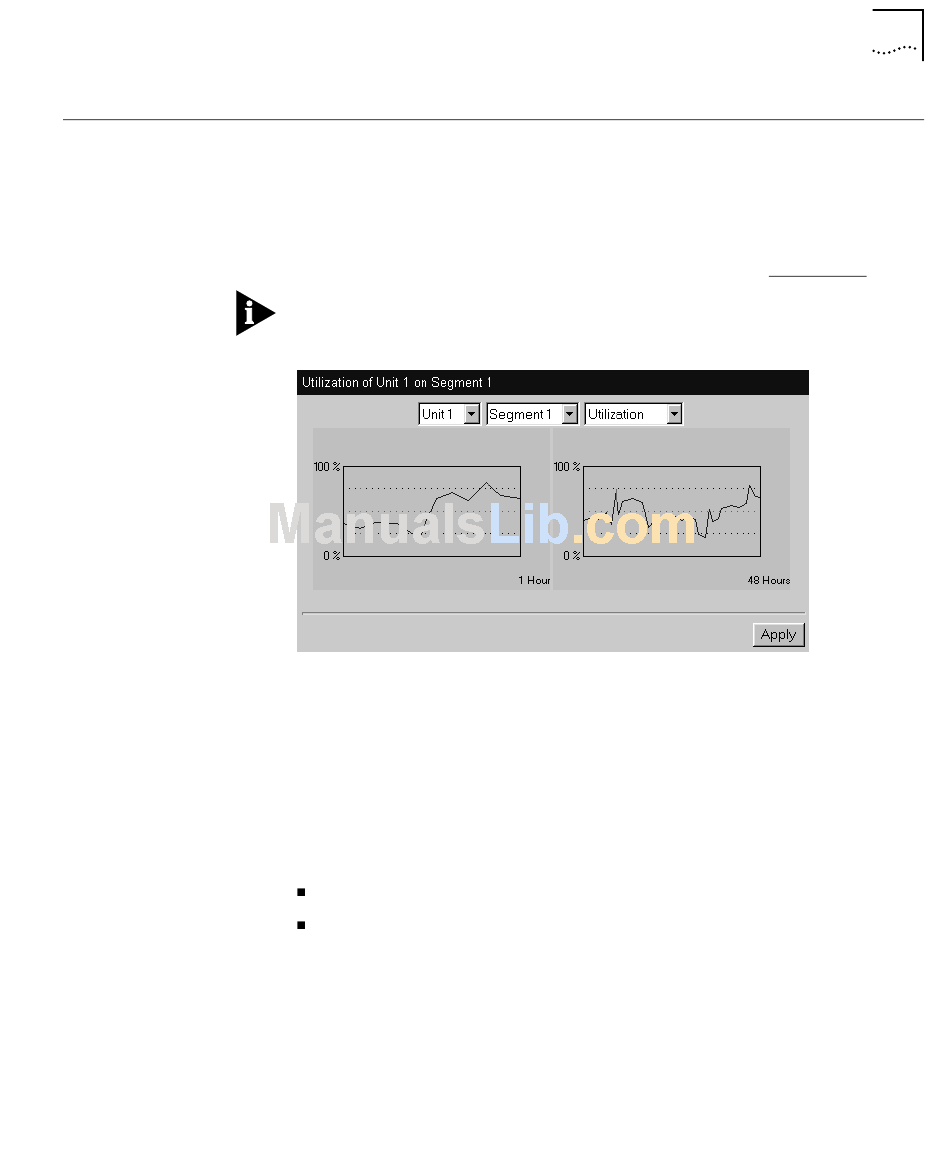

Segment Graphs Page
Figure 7-16
The fields are:
Unit Specifies the unit that has the segment.
Segment Specifies the segment that the graphs are displayed for.
Graph Type Specifies the type of graph that is displayed:
Utilization — Shows the utilization of the segment as a percentage.
Total Errors — Shows the amount of packets which have errors.
Health Pages 7-25
