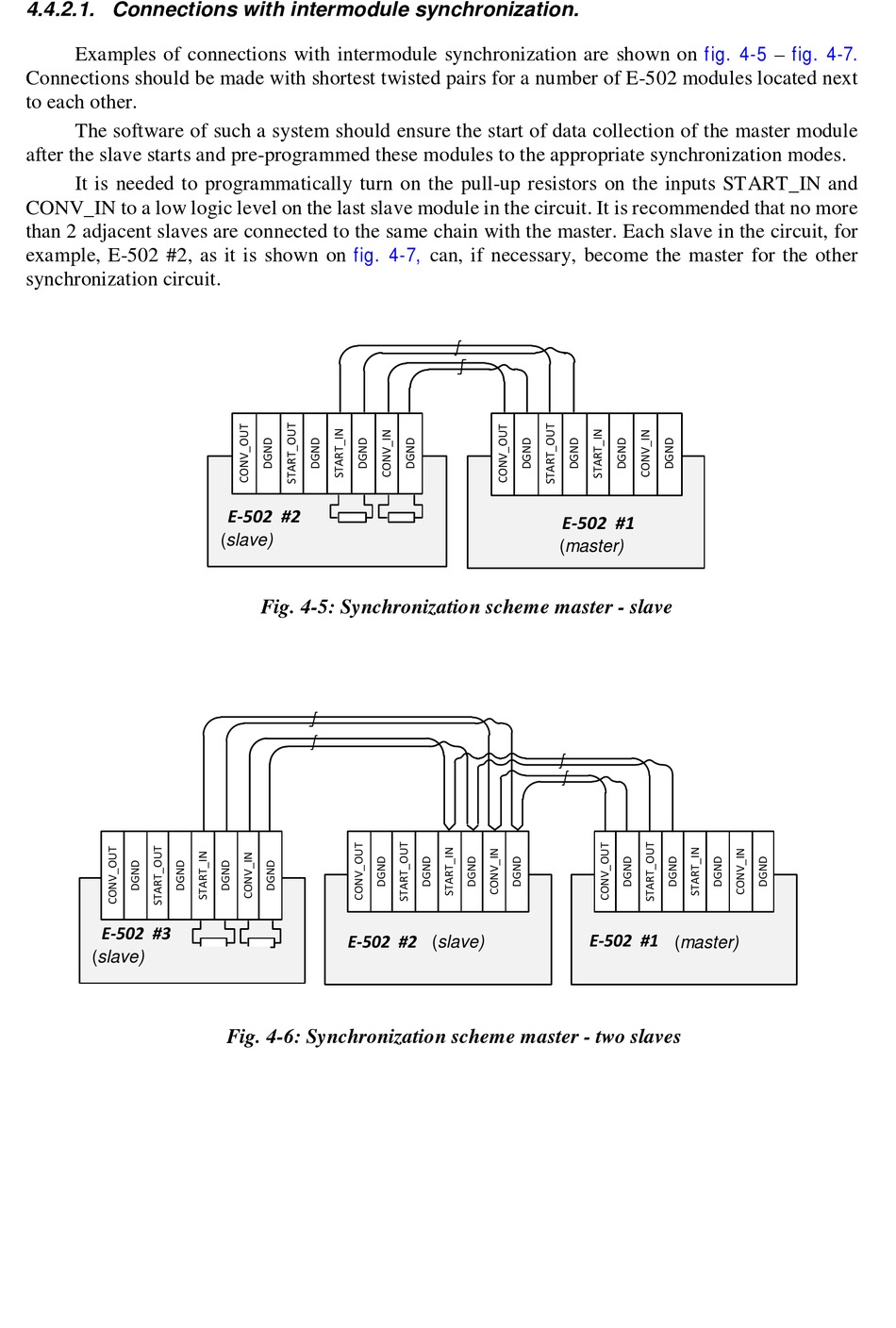

4.4.2.1. Connections with intermodule synchronization.
Examples of connections with intermodule synchronization are shown on
Connections should be made with shortest twisted pairs for a number of E-502 modules located next
to each other.
The software of such a system should ensure the start of data collection of the master module
after the slave starts and pre-programmed these modules to the appropriate synchronization modes.
It is needed to programmatically turn on the pull-up resistors on the inputs START_IN and
CONV_IN to a low logic level on the last slave module in the circuit. It is recommended that no more
than 2 adjacent slaves are connected to the same chain with the master. Each slave in the circuit, for
example, E-502 #2, as it is shown on
synchronization circuit.
E-502 #3
(ведомый)
(slave)
fig. 4-7,
E-502 #2
(ведомый)
(slave)

Fig. 4-5: Synchronization scheme master - slave

E-502 #2

Fig. 4-6: Synchronization scheme master - two slaves

can, if necessary, become the master for the other
E-502 #1
(ведущий)
(master)
(ведомый) E-502 #1
(slave)
fig. 4-5 fig. 4-7.
–
(ведущий)
(master)
