4.4.2. Connector Digital.

Connector Digital is a 37-pin 2-row plug of DRB-37F type on the E-502 front panel. The
conductive connector contact piece (shield) is electrically connected to the GND signal ground
circuit. On the shield of the cable part of the connector, the shield of the signal cable can be directly
sealed. The Digital connector shield has no contact with the DGND circuits and the remaining circuits
of the Digital connector.
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
DI9
DI10
DI11
DI12
DI13
DI14 / DI_SYN2
DI15 / CONV_IN
DI16 / START_IN
DGND
CONV_OUT
START_OUT

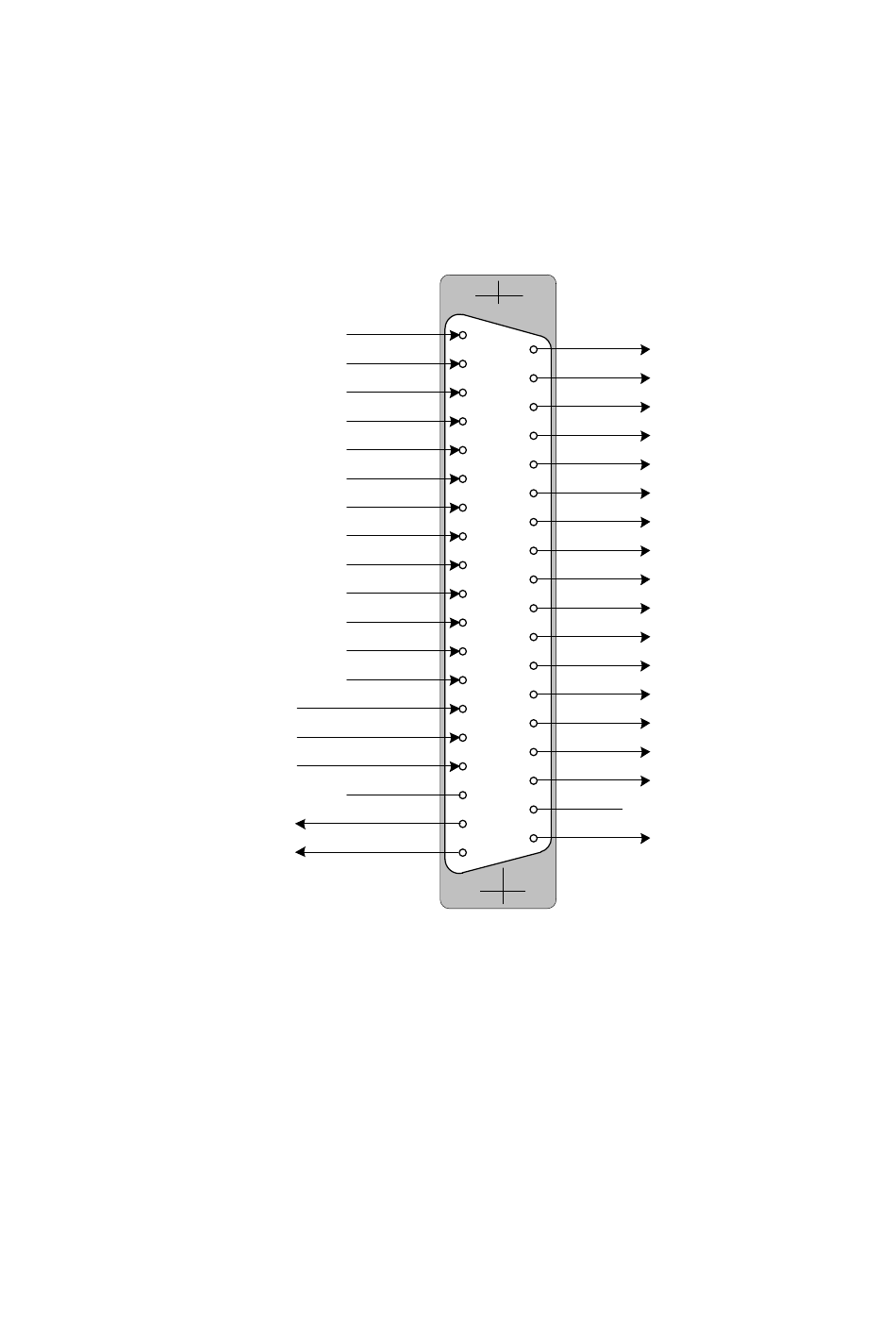

Fig. 4-4: Connector Digital

1
DO1
20
2
DO2
21
3
DO3
22
4
DO4
23
5
DO5
24
6
DO6
25
7
DO7
26
8
DO8
27
9
DO9
28
10
DO10
29
11
DO11
30
12
DO12
31
13
DO13
32
14
DO14
33
15
DO15
34
16
DO16
35
17
DGND
36
+3,3 В
18
37
19
