E-502 #4
(ведомый)
(slave)
E-502 #3 (ведомый)
(slave)
4.4.2.2. What gives an independent resolution to the outputs of the high and low
byte?
One of the important practical examples is a system of 3 buses with a width of 8 bits each, as
shown in the figure below. The first bus is the input one, the second is the output bus, the third is bi-
directional.
E-502
DI9...DI16
DI1...DI8
DO1...DO8
DO9...DO16

Fig. 4-8: Example of a grouped connection of digital lines: three buses of 8 bits each.

The example shows an almost important case of implementing interfaces with various devices
that have an 8-bit bidirectional data bus, input and output control lines. It should be noted that DI14,
DI15, DI16 inputs have alternative synchronization functions (
Цепь 2
Circuit 2
E-502 #2
(ведомый для #1,
(slave for #1, master
ведущий для #3, #4 )

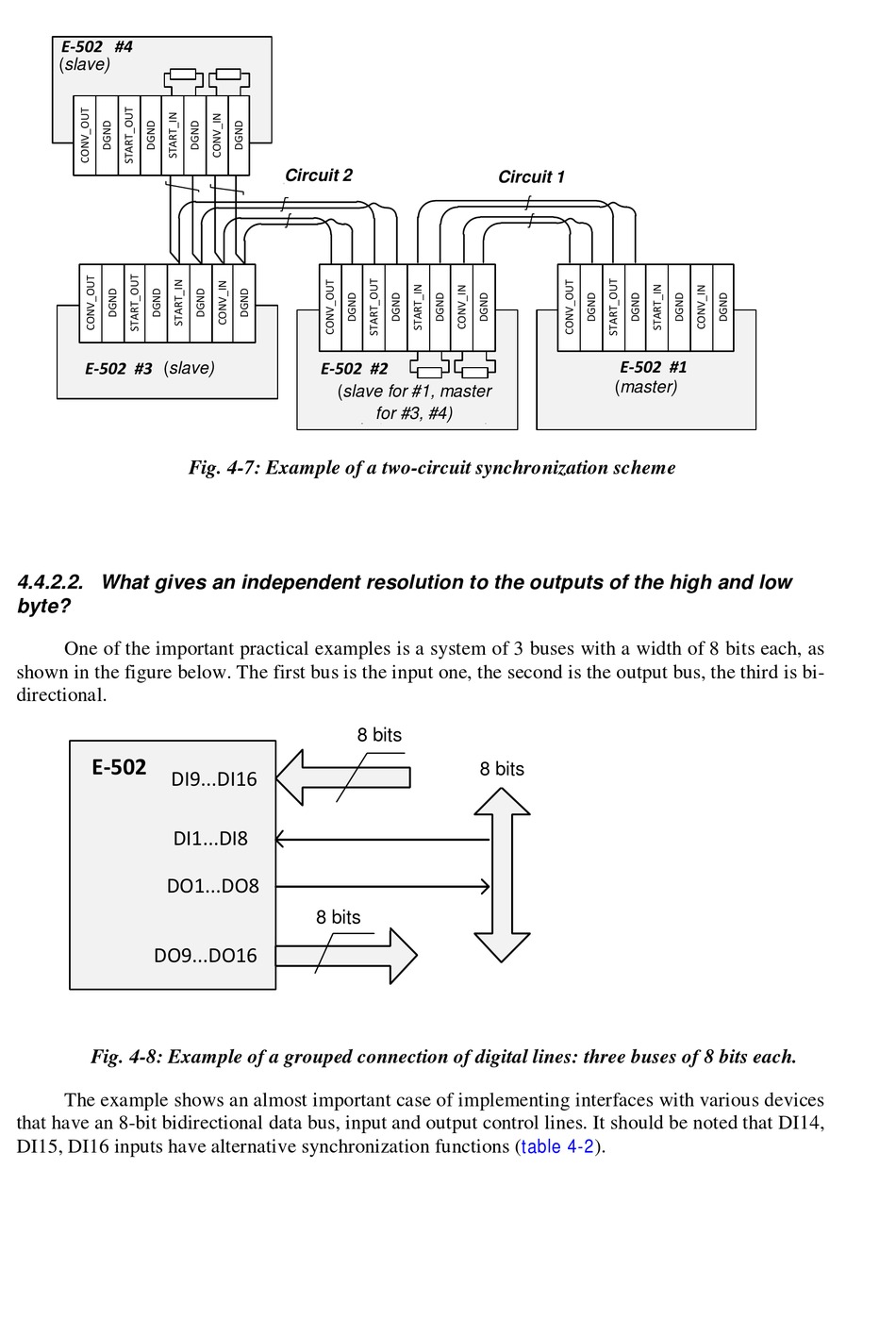

Fig. 4-7: Example of a two-circuit synchronization scheme

8 бит
8 bits
Цепь 1
Circuit 1
for #3, #4)
8 бит
8 bits
8 бит
8 bits
E-502 #1
(ведущий)
(master)
table 4-2
).
