Manual Process

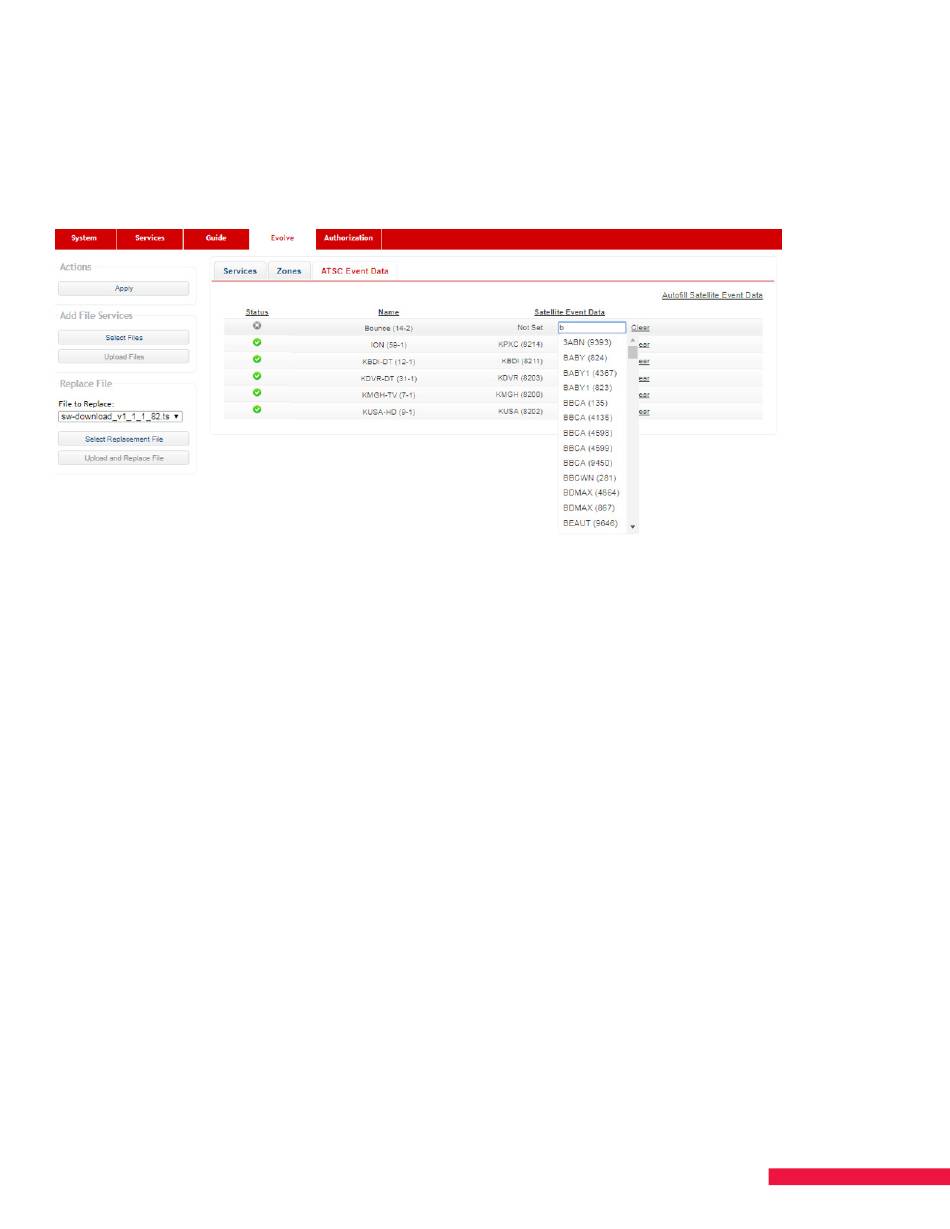

To manually correlate the ATSC-satellite services, begin typing the satellite channel name in the empty field to the
right of the ATSC service. As you type, a drop-down will appear listing available options (See Figure 32.). Select
the appropriate channel and apply. Once this step is complete, you'll need to run a manual guide scan (Chapter 11)
to update the database being sent to EVOLVE to include the new channels.
Figure 32
NOTE:
There are more local services available off-air than satellite. Thus, not all ATSC services will have guide
data from a corresponding satellite service to pull guide data from. You can activate these services but EVOLVE
will display "No Information" in the guide for such services.
Set Zones for Services
To comply with DISH Business Rules and possibly property brand guidelines, you may need to restrict some
services to certain zones. For example, premium services cannot be shown in the lobby. Please refer to
Installation Guide
for more information on setting up zones within EVOLVE units.
1. Configure content services according to your channel map on the Services page per the instructions in
Chapter 11 MAP SERVICES
2. Once all services are configured, go to the Zones tab on the EVOLVE page
3. You will see all the configured services listed alphabetically and the possible 8 zones across the top regardless
of how many zones you have set up within the EVOLVE units. Any unused zone within EVOLVE units can be left
unchanged as it will have no impact on the
4. Disable individual services by unchecking the checkbox under the desired zone or clicking the None button
5. Disable all services for a zone by clicking the checkbox under the zone identifier. A zone that has a horizontal
line instead of a check mark in the box has at least one service disabled and one service active in that zone
6. Individual services can be enabled by clicking empty checkboxes or clicking the All button
7. Enable all services for a zone by clicking empty checkboxes or checkboxes with horizontal lines
8. Click the Apply button to save any changes
NOTE:
Always check the Zones tab when adding new services to confirm they are assigned to the correct zones.
EVOLVE units will automatically process any applied changes.
SMARTBOX
output
EVOLVE
51
