Replacing Existing Files; Set Up Atsc For Evolve - Dish Network Smartbox User Manual

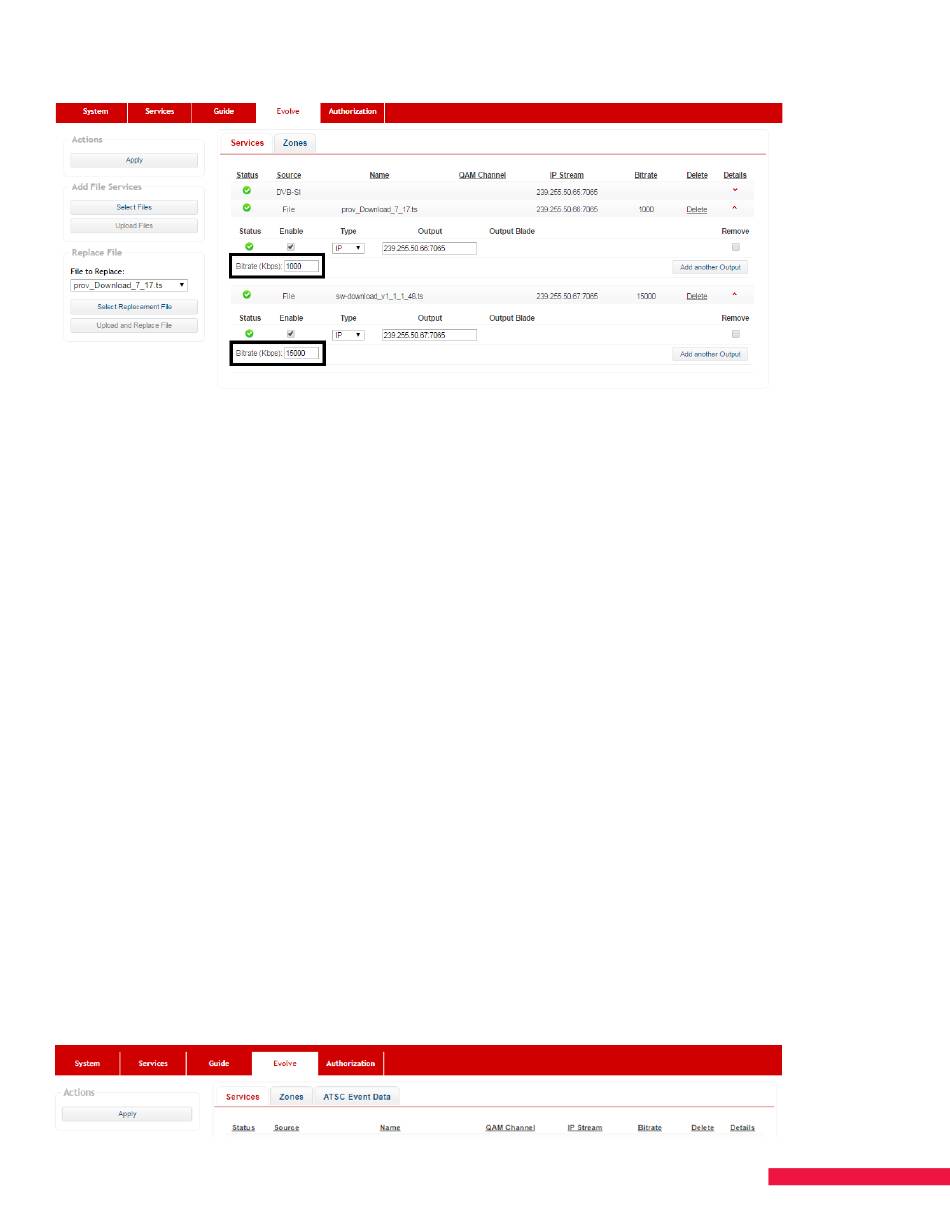

Figure 27 EVOLVE - Bitrate Configuration -IP Output

Replacing Existing Files

If you need to change the files being sent to the EVOLVE units, for example to update the software version being
broadcast, perform the following steps.
1. Under File to Replace in the Replace File section, select the specific file that you wish to replace in the
drop-down menu
2. Click the Select Replacement File button
3. Locate and select the replacement file from where it is stored on your computer.
4. Click the Upload and Replace File button.
5. Click the Refresh now button to see the replacement file listed as a service. The new file will retain the same
configuration as the service it replaced.

Set Up ATSC for EVOLVE

ATSC functionality on EVOLVE is supported in
configure your ATSC services as normal (see Chapters 9 and 11). This allows ATSC locals to display on EVOLVE.
However, the SMARTBOX
corresponding satellite local channel and send that to EVOLVE.
You need to tell the SMARTBOX
once you've scanned for and configured the ATSC services, navigate to the EVOLVE tab (See Figure 28.). Then
select the ATSC Event Data tab (See Figure 29.). The ATSC services you've configured are shown with no satellite
event data yet set.
Figure 28
SMARTBOX
is not able to pull guide data from the ATSC signal. It will pull guide data from the
which satellite channel corresponds to each configured ATSC service. To do this,
software 0.2.16 or newer. You will need to scan for and
49
