Mount Power Inserter and Connect Input/Output Cables to Power Inserter

An external power source and in-line surge protector(s) must be installed on the coax line(s) between
and the satellite's LNBF(s). The current recommended solution is the DISH 4-port high-capacity power inserter
with built-in surge protection (DN005050). This is only for situations where the LNBF is within 100 feet of
SMARTBOX.
CAUTION:
For cable runs of greater than 100 feet, in-line amplifiers may be required.

DISH 4-Port High-Capacity Power Inserter

1. Securely mount a DISH 4-port high-capacity power inserter/surge protector to an appropriate
wall or surface.
2. Connect cables from the LNBFs to ports 1, 2, 3, 4 (as needed); these are marked TO DISH on the power
inserter (See Figure 1.).

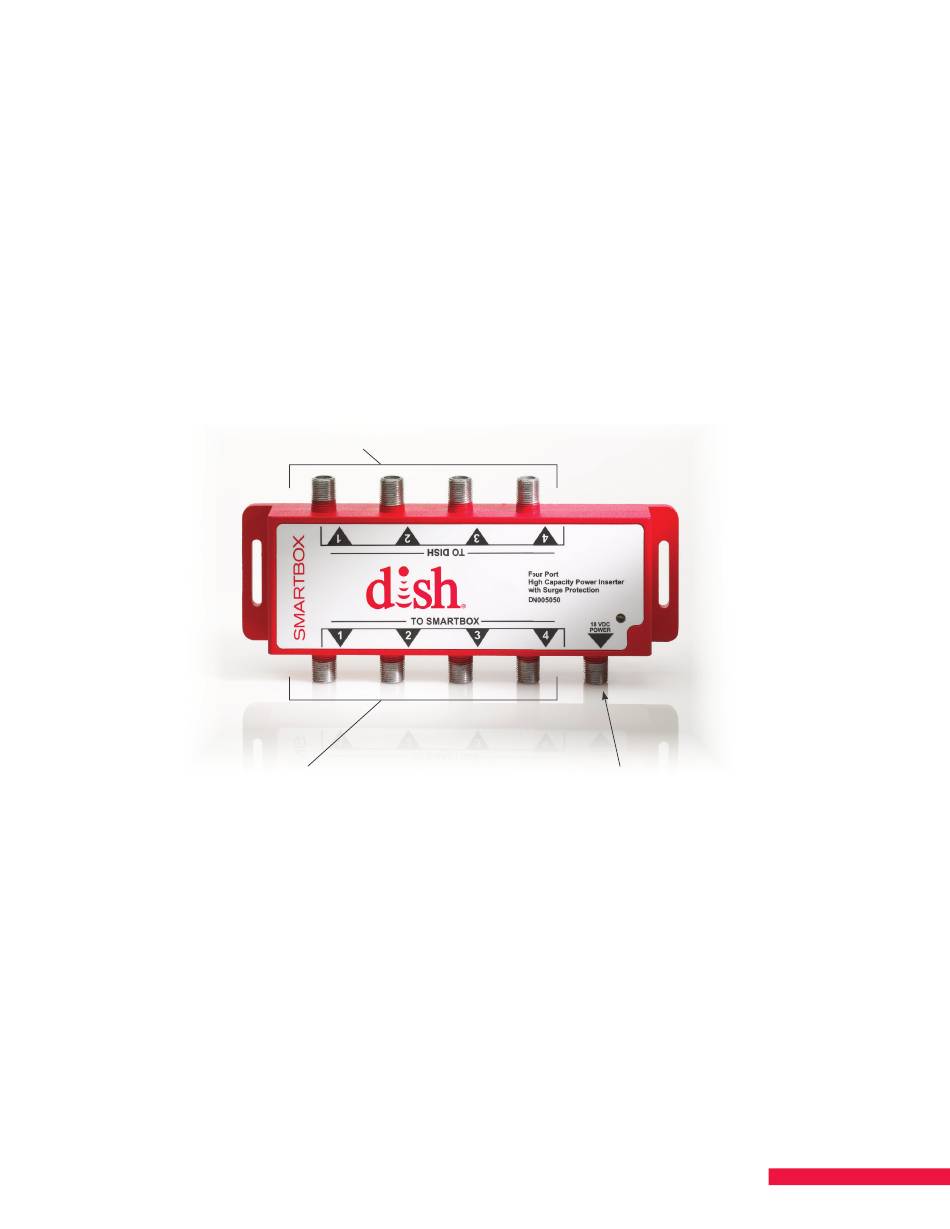

Figure 1. DISH 4-Port High-Capacity Power Inserter with Surge Protection
Connect LNBFs from satellites to "TO DISH" ports 1–4
Connect "TO SMARTBOX" ports 1–4 to
Sat 1, Sat 2, Sat 3, and Sat 4 connectors on front of
3. Connect corresponding ports 1, 2, 3, 4 marked TO SMARTBOX on the power inserter to the Sat 1, 2, 3, 4
connectors on the front of
4. Connect the supplied AC adapter to the 18V DC power port on the power inserter.
5. Plug the AC adapter into a power source.
NOTE: If you have open ports, you can use the power inserter to power an OTA antenna's amplifier.
SMARTBOX (See Figure 1.).
Connect power adapter
SMARTBOX to 18 VDC connector
