Set Up the DVB-SI Service

The DVB-SI is a stream of data output from
to be provisioned, recognize channel lineup changes, side-load applications, and take software updates. It must
be configured for the EVOLVE units to function. Take note of the output assigned to the DVB-SI service. This will
be entered into EVOLVE units during installation.
NOTE: Unlike the files discussed in Adding Additional Files, no bitrate setting is required for DVB-SI
1. Go to the Services tab on the EVOLVE section
2. You will see the only pre-listed service is the DVB-SI
3. Click the Details arrow to configure the service, then click the Add another Output button
4. Select the Type depending on if the installation will be QAM or IP
5. Enter the Output channel. EVOLVE is pre-configured with the default QAM carrier for the DVB-SI as 98 and
default multicast address for IP as 239.100.10.1:36000; however, any unused QAM carrier 5 to 158 and any
unused, valid multicast address can be configured
6. If outputting content via QAM, select the Output Blade or leave on "Auto" depending on your blade
configuration and channel map
7. Click Apply on the upper-left side of the screen to save the configuration (See Figure 25.).

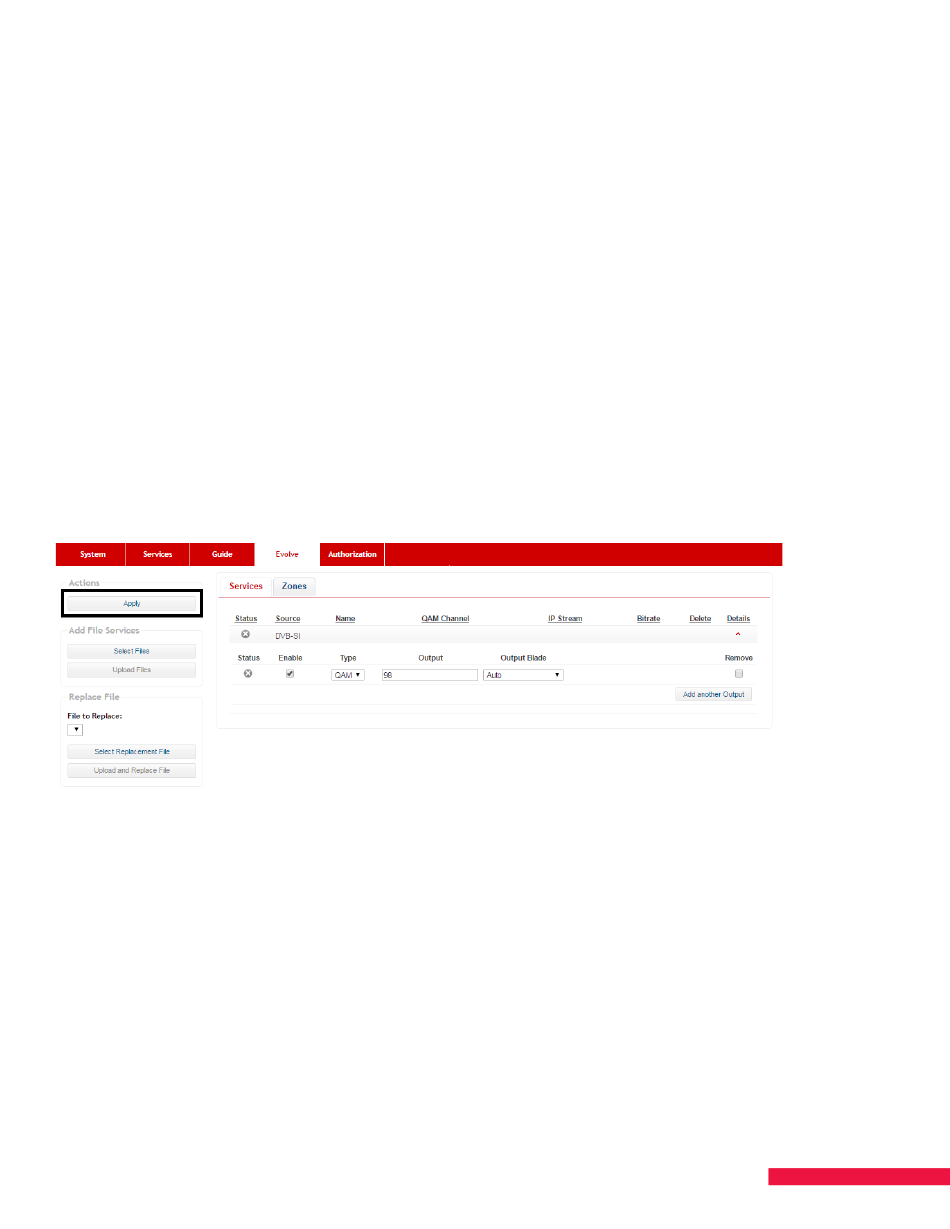

Figure 25 EVOLVE - Apply button with DVB-SI set for Default QAM

Adding Additional Files

In addition to the DVB-SI, EVOLVE requires additional files to function properly and to be customized based on
property preferences. These files include the provisioning, EVOLVE software, EPG logos, and App APKs and must
all be .ts files to be loaded and configured. Take the following steps for each individual file that needs to be
uploaded.
1. Click the Select Files button under the Add File Services section.
2. Navigate to the location where you saved the file on your computer and select the desired file. Note, the
.ts files should have been downloaded from the Configuration tool (refer to
more information).
3. Once selected, click the Upload Files button.
4. Once SMARTBOX finishes uploading, it instructs you to refresh. Click the Refresh now button to see the
uploaded file listed as an available service to configure (See Figure 26.).
SMARTBOX which contain tables of information necessary for EVOLVE
