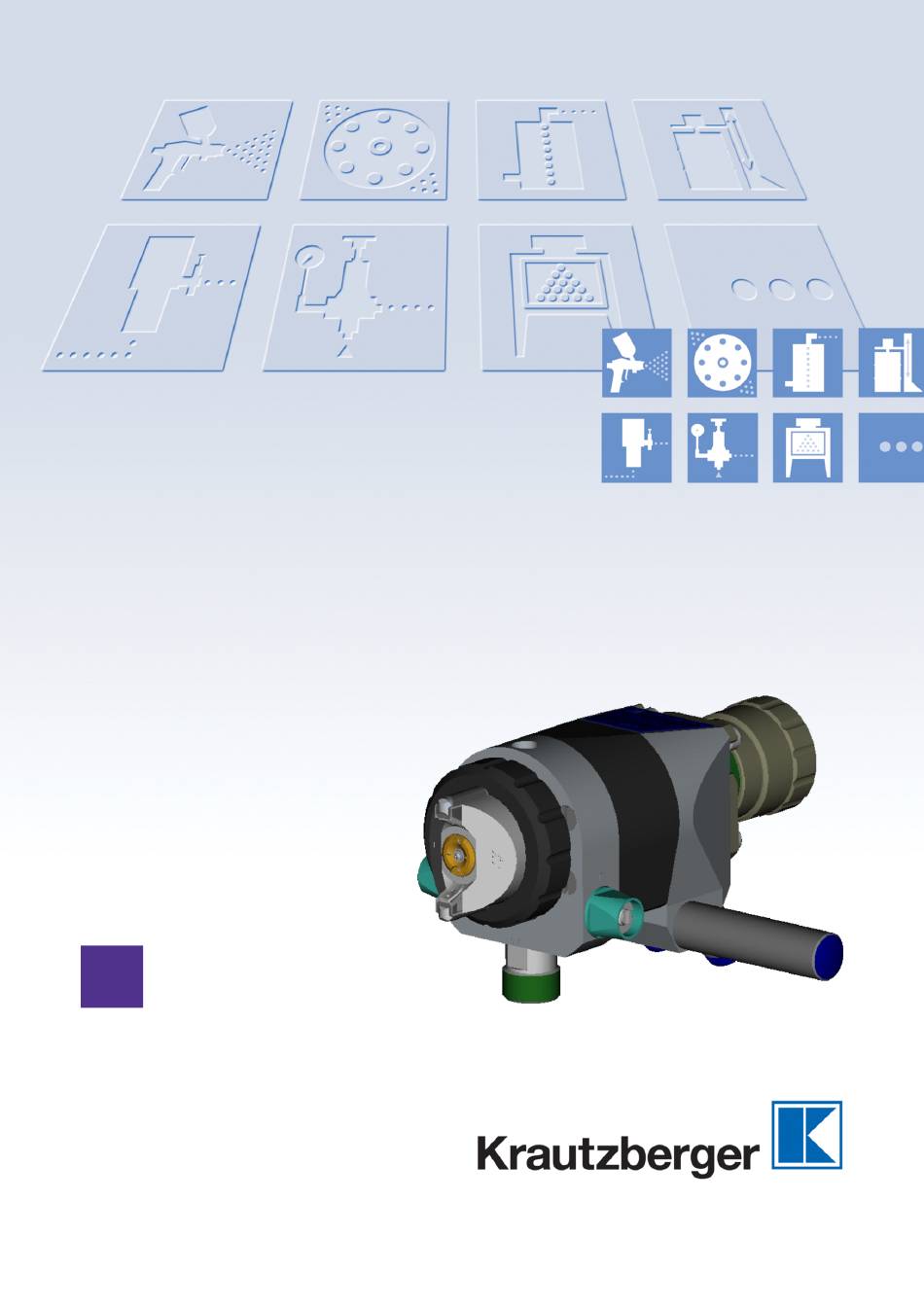

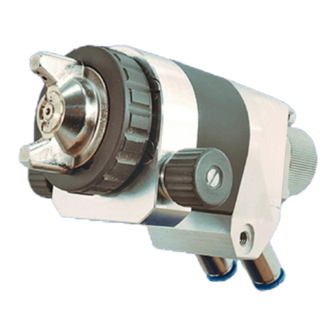

- Page 1 Operating instructions Steam spray gun DA3 T-Dok-553-GB-Rev.4 Article no. ■200-0348 Translation of the original operating instructions...
- Page 2 Thank you for selecting a Krautzberger product. This product has been manufactured following state-of-the-art manufacturing procedures and extensive quality assurance measures. We promise you a product of the highest quality. If you have questions, requests or suggestions, please contact us. We are always glad to assist you.
-
Page 3: Table Of Contents
ENGLISH Steam spray gun DA3 Table of contents Function and identification....................5 Function........................5 Identification......................... 5 Using this operating manual..................... 6 Symbols in this manual....................6 Personnel requirements....................7 Personal protective equipment..................8 Safety and responsibility....................11 General safety instructions..................11 Intended use...................... - Page 4 Accessories........................42 Disassembly and disposal....................43 12.1 Safety........................43 12.2 Disassembly......................43 12.3 Disposal........................43 Technical data........................44 13.1 Dimensions and weight.................... 44 13.2 General specifications..................... 44 13.3 Dimensions......................44 Declaration of incorporation................... 45 Notes..........................46 Index..........................47 GB–4 mail@krautzberger.com, www.krautzberger.com...
-
Page 5: Function And Identification
ENGLISH Steam spray gun DA3 1 Function and identification Function For steam spray guns, the compressed air that is ordinarily required for the atomisation process at the nozzle is replaced by steam. This process uses a steam generator to generate pressure. The control of the steam spray gun is still carried out via compressed air, which is generated by com- pressors. -
Page 6: Using This Operating Manual
ENVIRONMENT! This combination of symbol and signal word indicates potential dangers to the environment. Tips and recommendations This symbol highlights useful tips and recommendations as well as information for efficient and trouble-free operation. GB–6 mail@krautzberger.com, www.krautzberger.com... -
Page 7: Personnel Requirements
ENGLISH Steam spray gun DA3 Example for safety instructions in operating instructions Safety instructions can refer to specific, individual operating instructions. Such safety instructions are embedded in the operating instructions so that they do not disrupt the reading flow during the execution of the action. -
Page 8: Personal Protective Equipment
Description of the personal protective equipment recommended by Krautzberger The personal protective equipment is described below: Protective work clothing Protective work clothing are tight fitting work clothes with low tear resistance, with tight sleeves, and without any protruding parts. - Page 9 ENGLISH Steam spray gun DA3 Ear protection Ear protection provides protection against hearing damage. Light respiratory protection The light respiratory protection is used as a protection against hazardous dusts. Safety goggles Safety goggles are used to protect the eyes from flying parts and splashes of liquid.
- Page 10 Operating instructions T-Dok-553-GB-Rev.4 Safety shoes protect the feet against crushing, falling parts or slipping on slippery ground. Safety helmet The helmet protects the head against injuries from falling parts and oscillating loads as well as in tight spaces. GB–10 mail@krautzberger.com, www.krautzberger.com...
-
Page 11: Safety And Responsibility
ENGLISH Steam spray gun DA3 3 Safety and responsibility General safety instructions WARNING! Risk of death, risk of injury or property damage due to hazardous media! Potential consequences: The application of hazardous media can lead to death, severe inju- ries or property damage. -
Page 12: Intended Use
Do not operate the steam spray gun in areas that are at risk for explosions. WARNING! Misuse of the steam spray gun can cause hazardous situations. No claims of any kind can be asserted due to damage resulting from misuse! GB–12 mail@krautzberger.com, www.krautzberger.com... -
Page 13: Responsibility Of The Owner
Residual risks Devices, machines or systems made by Krautzberger GmbH have been manufactured based on state-of-the-art technology and in compliance with technical safety regulations. Nonetheless, their use may pose a threat to the life or health of users or third parties, or harm the device, the machine, the system or other material assets. -
Page 14: Transport, Storage, And Packaging
Packaging The steam spray gun is packaged in accordance with the anticipated transport conditions and the packaging needs to protect it against transport damage, corrosion, and other damage. Remove packaging material. Remove potentially present transport safety restraints. GB–14 mail@krautzberger.com, www.krautzberger.com... -
Page 15: Menu
ENGLISH Steam spray gun DA3 5 Menu Fig. 1: Menu Needle stroke setting * Type plate Cap nut Steam nozzle Steam connection Round jet control "R" Sound absorber Fluid connection outlet "M" (fluid circulation*) Control air connection "ST" Fluid connection input "M"... -
Page 16: Installation And Disassembly
Only operate the steam spray gun after properly fastening it on a suitable support structure. Operate the steam spray gun with processed, dried compressed air (air quality pursuant to DIN ISO 8573-1: quality class 4). Never point the steam jet and compressed air towards living beings. GB–16 mail@krautzberger.com, www.krautzberger.com... -
Page 17: Installing The Steam Spray Gun
ENGLISH Steam spray gun DA3 Installing the steam spray gun Changing the installation position of the steam spray gun To change the installation position of the steam spray gun, the optional retaining bolt can be screwed into the control part of the steam spray gun from the other side. -
Page 18: Connecting Connections Of The Steam Spray Gun
Connect material supply to fluid connection input "M" ( Fig. 3/3). Connect fluid circulation line to fluid connection output "M" ( Fig. 3/2) (optional). Connect the steam hose to steam connection ( Fig. 3/4). Ensure that all connections are properly connected. GB–18 mail@krautzberger.com, www.krautzberger.com... -
Page 19: Unfastening Connections Of The Steam Spray Gun
ENGLISH Steam spray gun DA3 Unfastening connections of the steam spray gun CAUTION! Risk of injury due to the discharge of hot steam! Exiting steam can reach high temperatures. Direct contact with expelled hot media can cause scalding of the skin. -
Page 20: Dismantling The Steam Spray Gun
Unfasten connections of the steam spray gun ( the steam spray gun’ on page 19). Fig. 5: Dismantling the steam spray gun Unfasten onsite fastening and pull the steam spray gun with the retaining bolt ( Fig. 5/1) out of the mounting. GB–20 mail@krautzberger.com, www.krautzberger.com... -
Page 21: Operation
ENGLISH Steam spray gun DA3 7 Operation Safety Personnel: User Specialised personnel Protective equipment: The selection of the personal protective equipment depends on the utilised medium of the system owner. The information provided by the medium manufacturer indicated on the safety data sheet must be adhered to in order to ensure the proper selection of personal protective equipment. - Page 22 Switch off steam generator and wait until the system has cooled down prior to working on the steam spray gun. – The steam pressure line of the steam spray gun can be under pressure and must be closed if necessary. – Do not direct the steam jet at people. GB–22 mail@krautzberger.com, www.krautzberger.com...
-
Page 23: General Information About Commissioning And Start-Up
Do not use sharply abrasive, chemically aggressive, very hot or very cold spray fluids without first consulting with and receiving approval from Krautzberger GmbH. Adhere to the spray fluid manufacturer's safety data sheets. Ä Chapter Only operate the steam spray gun in compliance with the values specified in the ( 13 ‘Technical data’... - Page 24 Steam exits from the centre of the steam nozzle (round jet). ð Close the round jet control ( Fig. 6/1) completely. To do so, turn the control clockwise to the stop. Minimal steam may exit from the steam nozzle. GB–24 mail@krautzberger.com, www.krautzberger.com...
-
Page 25: Adjusting The Spray Pattern
ENGLISH Steam spray gun DA3 Fig. 7: Regulators Open the flat jet control ( Fig. 7/2) completely. To do so, turn the control anti-clockwise to the stop. Steam exits from the sides of the steam nozzle (flat jet). ð Completely close the flat jet regulator ( Fig. 7/2). To do so, turn the control clockwise to the stop. - Page 26 Open the adjusting nut ( Fig. 9/1) of the needle stroke setting by no more than 5.5 mm ( Fig. 8). Adjusting the spray pattern Fig. 9: Adjusting the spray pattern Completely open the flat jet control [F] ( Fig. 9/3). Completely open the round jet control [R] ( Fig. 9/4). GB–26 mail@krautzberger.com, www.krautzberger.com...
- Page 27 ENGLISH Steam spray gun DA3 7.4.2 Fine adjustment Fig. 10: Adjusting the spray pattern Adjust the round jet on the round jet control ( Fig. 10/4). Do not close the round jet control ( Fig. 10/4) completely during operation. Adjust the flat jet on the flat jet regulator ( Fig. 10/3).
-
Page 28: Adjusting The Needle Stroke (Optional)
End spray process by switching off the control air (connection "St") and in accordance with the information in the operating instructions of the steam spray system. Interrupt the spray fluid supply. Ä Chapter 8.3 ‘Cleaning the steam spray gun’ on page 30). Clean steam spray gun ( GB–28 mail@krautzberger.com, www.krautzberger.com... -
Page 29: Maintenance
The use of incorrect or defective spare parts can cause hazards for the personnel as well as damage, malfunctions or complete failure. – Only use OEM parts from Krautzberger or Krautzberger-approved spare parts. – In case of questions, always contact our Customer Care department. -
Page 30: Maintenance Schedule
The level of wear depends on the abrasiveness of the spray fluid used. Escaping air and spray fluid as well as the deterioration of the spray pattern are signs that parts are worn. Con- tact Krautzberger Customer Care with any questions on maintenance work and maintenance inter- vals. - Page 31 For a gentle and thorough cleaning, we recommend our brush set. See the last page for contact information. Slightly grease sliding parts with special Krautzberger grease. The special grease can be purchased from Krautzberger GmbH (contact data see last page). Article no. ■200-0348...
-
Page 32: Changing Fluid And Steam Nozzle
Pay attention to position of distribution ring! WARNING! Risk of injury through the use of incorrect spare parts! Insert and tighten the fluid nozzle ( Fig. 12/3) and the steam nozzle ( Fig. 12/2). Tighten cap nut ( Fig. 12/1). GB–32 mail@krautzberger.com, www.krautzberger.com... -
Page 33: Changing The Fluid Needle
ENGLISH Steam spray gun DA3 Changing the fluid needle Removing the fluid needle Fig. 13: Removing the fluid needle Loosen the screws ( Fig. 13/1). The optional needle stroke setting ( Fig. 13/9) or the cover cap are under spring ten- sion. - Page 34 The fluid needle ( Fig. 14/2) is hooked into the control piston ( Fig. 14/1) via the screw. WARNING! Risk of injury through the use of incorrect spare parts! Ä Chapter Check condition of additional seals in the housing, replace seals if necessary ( 8.6 ‘Changing seals and needle pack’ on page 36). GB–34 mail@krautzberger.com, www.krautzberger.com...
- Page 35 ENGLISH Steam spray gun DA3 Attaching the fluid needle CAUTION! Risk of injury due to fluid needles! Hook the head part of the new fluid needle into the control piston. Place the O-ring and piston guide onto the control piston.
-
Page 36: Changing Seals And Needle Pack
Take off intermediate part ( Fig. 15/4) and check the O-rings ( Fig. 15/5 and 10), replace if necessary. Remove and check slotted rings ( Fig. 15/6 and 8) and guide sleeve ( Fig. 15/7) from the control part ( Fig. 15/9), replace if necessary. GB–36 mail@krautzberger.com, www.krautzberger.com... -
Page 37: Changing Connections
ENGLISH Steam spray gun DA3 Installing seals/needle pack WARNING! Risk of injury through the use of incorrect spare parts! Insert slotted rings and guide sleeves into the control part. Pay attention to the installation position. Insert O-rings. Put together intermediate part and control part. Ensure that the O-rings are not damaged during the process. -
Page 38: Troubleshooting
9 Troubleshooting Personnel: Qualified personnel Troubleshooting table If the fault is not included in the following tables or if it cannot be eliminated with the measures described, contact Krautzberger Customer Care. Spray pattern Error Cause Remedy Normal flat jet spray pattern... - Page 39 ENGLISH Steam spray gun DA3 Spray pattern Error Cause Remedy Spray pattern too thin Cap nut loose Tighten cap nut Fluid jet comes out in Insufficient mate- Increase material spurts or rapid bursts rial supply supply Blocked fluid path Clean...
-
Page 40: Customer Care
Operating instructions T-Dok-553-GB-Rev.4 Customer Care Krautzberger GmbH Customer service Stockbornstr. 13 65343 Eltville am Rhein +49 6123 - 698151 customercare@krautzberger.com GB–40 mail@krautzberger.com, www.krautzberger.com... -
Page 41: Spare Parts
– Item number according to spare parts list – Quantity – Desired shipping method (post, freight, sea, air, express) – Delivery address A complete spare part overview is available on the website of Krautzberger GmbH: www.krautzberger.de Article no. ■200-0348 GB–41... -
Page 42: Accessories
Accessories A wide range of accessories is available for the steam spray gun. For further information, visit us on the Internet (www.krautzberger.com) or contact your Krautzberger specialist dealer, consultant or our office staff. Here are a few examples: Air nozzles... -
Page 43: Disassembly And Disposal
ENGLISH Steam spray gun DA3 Disassembly and disposal 12.1 Safety Personnel: Specialised personnel Protective equipment: The selection of the protective equipment depends on the installation conditions on site and the medium utilized by the system owner. The applicable country-specific safety, accident prevention,... -
Page 44: Technical Data
Working pressure steam (9 bar version) 0 ... 9 Working pressure spray fluid 0 ... 7 Working pressure control air Spray fluid temperature 5 ... 50 °C 13.3 Dimensions The dimensions are approximate values and are stated in mm. Fig. 17: Dimensions GB–44 mail@krautzberger.com, www.krautzberger.com... -
Page 45: Declaration Of Incorporation
ENGLISH Steam spray gun DA3 Declaration of incorporation Fig. 18: Declaration of incorporation Article no. ■200-0348 GB–45... -
Page 46: Notes
Operating instructions T-Dok-553-GB-Rev.4 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ GB–46 mail@krautzberger.com, www.krautzberger.com... -
Page 47: Index
ENGLISH Steam spray gun DA3 16 Index Cleaning ............30 Complete machine . - Page 49 Krautzberger GmbH Stockbornstrasse 13 65343 Eltville am Rhein, Germany Hotline: +49 (0) 6123 698-222 Reception: +49 (0) 6123 698-0 Fax: +49 (0) 6123 698-200 Email: mail@krautzberger.com Internet: www.krautzberger.com © Krautzberger GmbH 2017 © Krautzberger GmbH 2017...
