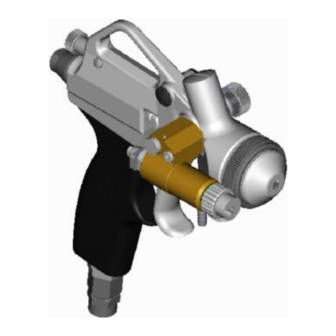

- Page 1 Operating instructions and spare parts list DOK-044-GB Rev. 2 Spray gun Type HS-25/2K Art. No. 2585-090-... - keep for future use –...
- Page 2 Rev. 2 The material is transported to the gun Operating instructions for the 2- through hoses; material feed can component spray gun HS-25/2K therefore be effected either from a pressure feed container or with the aid N.B.: of a pump.
-
Page 3: Cleaning And Maintenance
DOK-044-GB Rev. 2 Jet regulation adjust the setting dimension and fix the needle nuts in place using a locknut. The main nozzle system of the spray To change the air and material nozzle, gun is fitted as standard with a flat jet first loosen the nut (item 1) by hand nozzle (item 3). - Page 4 DOK-044-GB Rev. 2 ternal cleaning can be effected using a Incorrect functioning brush an solvent. Incorrect functioning can be caused by, After cleaning, the moving parts of the among other things, the following: gun which are accessible from the out- side should be lightly oiled.
-
Page 5: Spare Parts List
DOK-044-GB Rev. 2 Spare parts list I t e m A r t .N o . D e s ig n a t i o n 2 5 8 3 - 0 4 0 - 0 0 7 5 N u t 2 5 8 3 - 0 1 0 - 0 4 0 1 g a s k e t 2 5 8 3 - 0 6 0 - . - Page 6 DOK-044-GB Rev. 2 - 6 -...
-
Page 7: Declaration Of Conformity
Make: Krautzberger GmbH Serial no.: 2585-000 The spray gun type HS-25/2K was developed, designed and produced in compliance with the EC Directive 89/392/EEC. The following harmonised standards were applied: EN 292, Safety of Machines, Plant and Equipment EN 1953, Spraying Equipment for Coating Substances, Safety Requirements...
