SAT3 Programmer Manual
User Guide
SAT3PRGMA
Dec 08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Select Engineered Systems SAT3

Summary of Contents for Select Engineered Systems SAT3

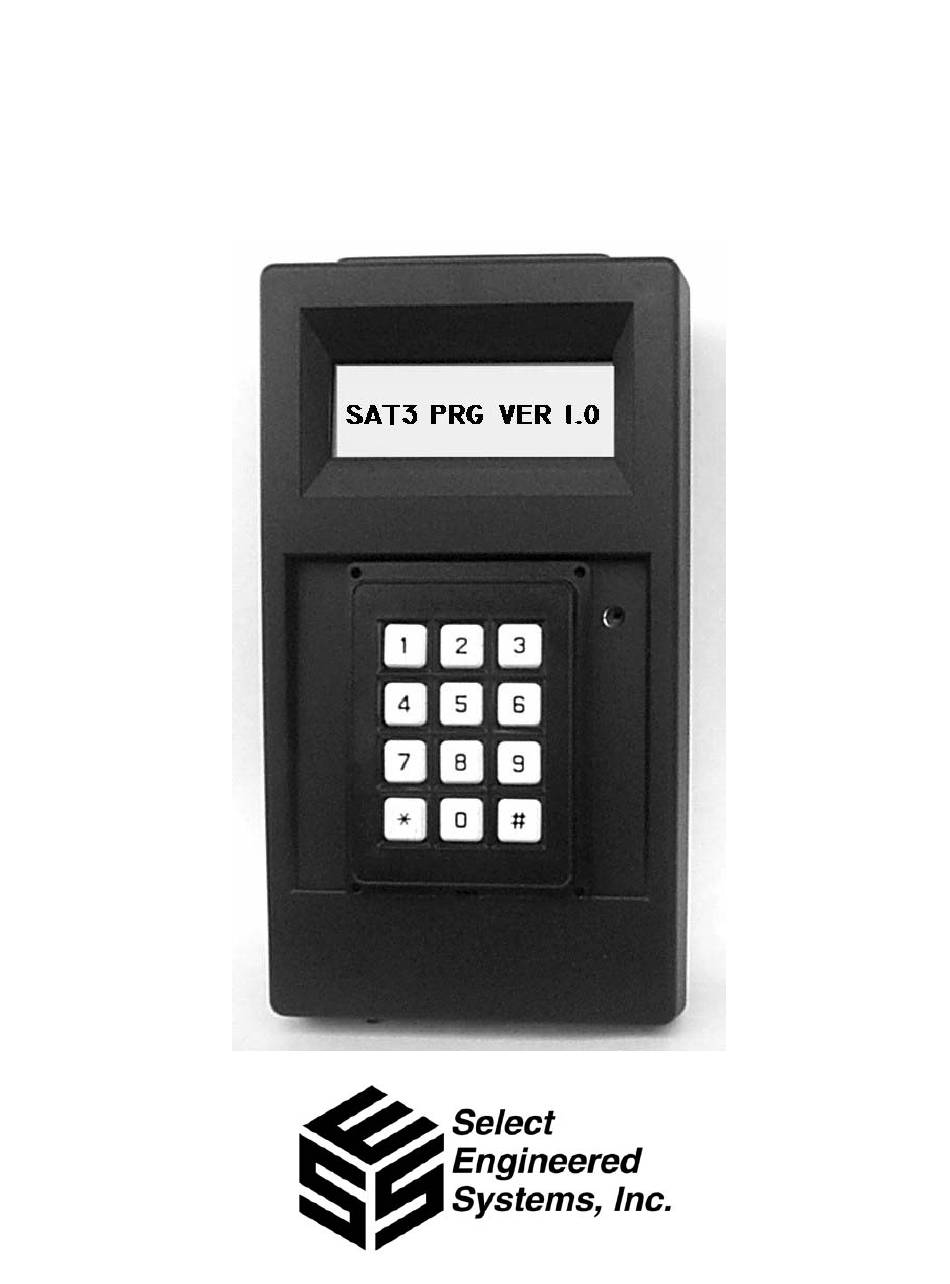

  • Page 1 SAT3 Programmer Manual User Guide SAT3PRGMA Dec 08...
  • Page 2 This page left intentionally blank.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FUNCTIONAL DESCRIPTION ................INTRODUCTION ....................2 HOOKUP CONNECTIONS ................... 3 GETTING STARTED ..................... 4 PROGRAMMING OPTIONS PROGRAMMING PHONE NUMBERS ............. PROGRAM INFO PHONE (optional 2nd button) ........PROGRAM RELAY FUNCTIONS ............PROGRAM SYSTEM PARAMETERS ............6 PROGRAM ACCOUNT & PASSWORD ............ 6 SET ALL MEMORY TO FACTORY DEFAULTS ............

  • Page 4: Functional Description

    See your SAT3 product manual that came with the SAT3 product purchased, in order to determine how you wish to configure your SAT3 product. In the event you no longer have the SAT3 product manual, please contact your dealer or download another manual from the factory website at: http://www.selectses.com/manuals.htm...

  • Page 5: Introduction

    Power Switch (Shown in On position.) WARNING: RJ-45 connector is NOT a standard Ethernet connection. Do NOT plug either SAT3 or SAT3 Programmer into an Ethernet jack on laptop or computer. You WILL damage the SAT3 and theSAT3 Programmer. Pg 2...

  • Page 6: Hookup Connections

    BEFORE connecting SAT3 Program- mer RJ-45cabling. It may damage the SAT3 product and WILL void the Warranty. Open up the SAT3 face plate to expose the RJ-45 jack on the upper right side of the SAT3. Remove the supplied RJ-45 7-foot...

  • Page 7: Getting Started

    B) - Turn OFF Power Switch. WARNING: Disconnect any and all RJ-11 phone cables BEFORE connecting SAT3 Programmer cabling. It MAY damage the SAT3 and WILL void the Warranty. C) - Plug in CAT5 CABLE (Cable should be previously connected to a SAT3 unit).

  • Page 8: Programming Phone Numbers

    7 PHONE # 8 8 PHONE # 9 4) If using a SAT3 product behind a PBX and an 8 or 9 plus a 3-second pause is 9 PHONE #10 required to reach an outside line, press the “#” key to set a 3-second pause.

  • Page 9: Program System Parameters

    1 - SET ALL MEMORY PARAMETERS BACK TO FACTORY DEFAULTS Display will show: INIT MEMORY 1+* Press 1* and all SAT3 setting return to factory parameters and all stored phone numbers are erased. 7 - SEND DATA TO SAT3 Display will show: SEND ALL MEM 1+* Press 1* and all settings in SAT3 programmer will be sent to the SAT3 product.

  • Page 10: Troubleshooting

    Unplug RJ-45 cable, wait 10 seconds and plug back in and retry. 3) After INIT or GT or SND command, SAT3 Programmer displays: NO SAT CONNECTED. This usually occurs from keying in a command while the SAT3 product’s memory is still being pro- grammed. To fix: Wait 10 seconds and try next command.

  • Page 11: Tips

    SAT3’s account number different. 5) If using a SAT3 product behind a PBX and an 8 or 9 plus a 3-second pause is required to reach an outside line, press the “#” key to set a 3-second pause.
  • Page 12 12/08 Select Engineered Systems, Inc. 7991 West 26th Avenue Hialeah, Florida 33016 Phone: 800.342.5737 Fax:305.823.5215 www.selectses.com...
