3 How to Install

3.1.4 Topology

The MCA 121 features a build-in Ethernet-switch, thus having two Ethernet RJ-45 connectors. This enables the possibility for connecting several EtherNet/
IP options in a line topology as an alternative to the typical star-topology.
The two ports are equal, in the sense that they are transparent for the option. If only one connector is used, either port can be used.
3

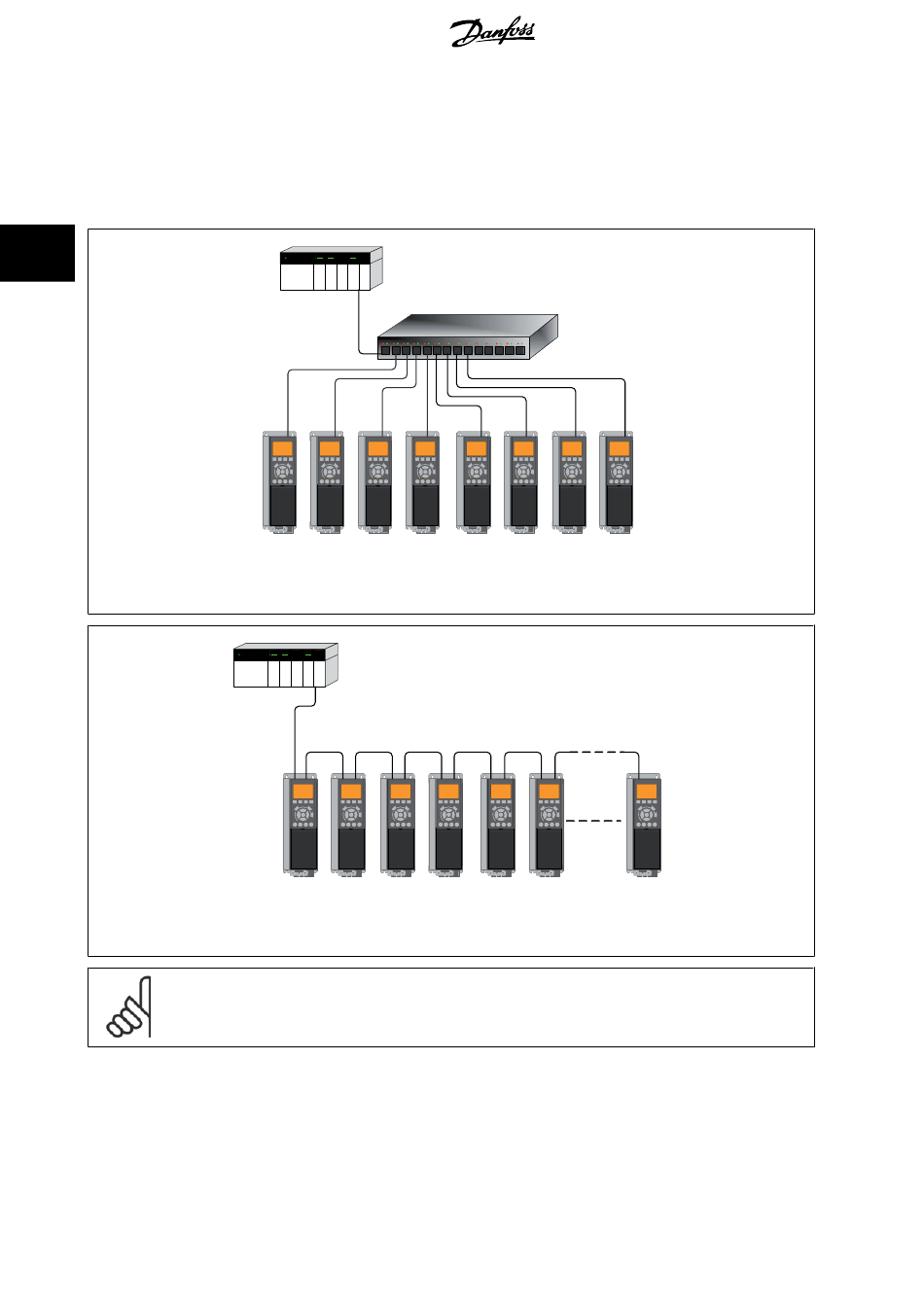

Illustration 3.2: Star topology
Illustration 3.3: Line topology
NB!
For line topology please refer to section: "Recommended design rules" In a line topology all drives must be powered, either by mains
or by their 24 V DC option cards, for the build-in switch to work.
10
VLT VLT VLT VLT
AutomationDrive AutomationDrive AutomationDrive AutomationDrive
VLT VLT VLT VLT
AutomationDrive AutomationDrive AutomationDrive AutomationDrive
MG.90.J2.02 - VLT
VLT VLT VLT VLT
AutomationDrive AutomationDrive AutomationDrive AutomationDrive
130BA903.10
VLT VLT
AutomationDrive AutomationDrive
130BA904.10
®
is a registered Danfoss trademark
MCA 121 EtherNet/IP
VLT
AutomationDrive
