manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002

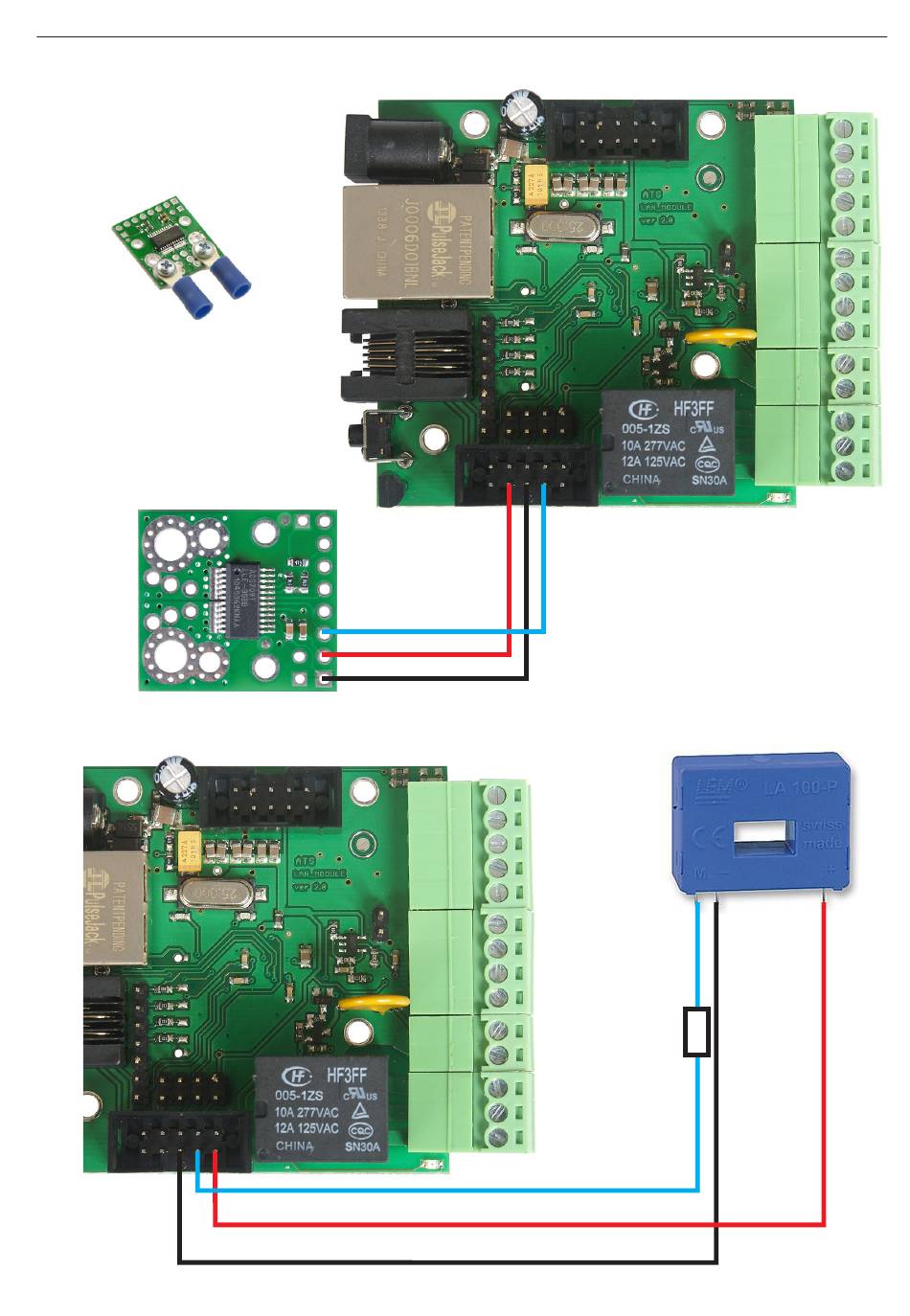

3. Connecting the current sensor ACS709
Recommended
installation of cables
IP+
IP–
4. Connecting the sensor LA100-P
IDC10-2
OUT – Pin7
Vcc – Pin3
GND – Pin5
IDC10-1
www.tinycontrol.eu
IDC10-1
IDC10-2
INP4
Vcc – Pin9 (12V)
GND – Pin5
8
–
72 Ω
+
