  • Page 1 Manual LAN Controller V2.0 Firmware: HOME: from 3.13 ISP: from 2.09...

  • Page 2: Lan Controller

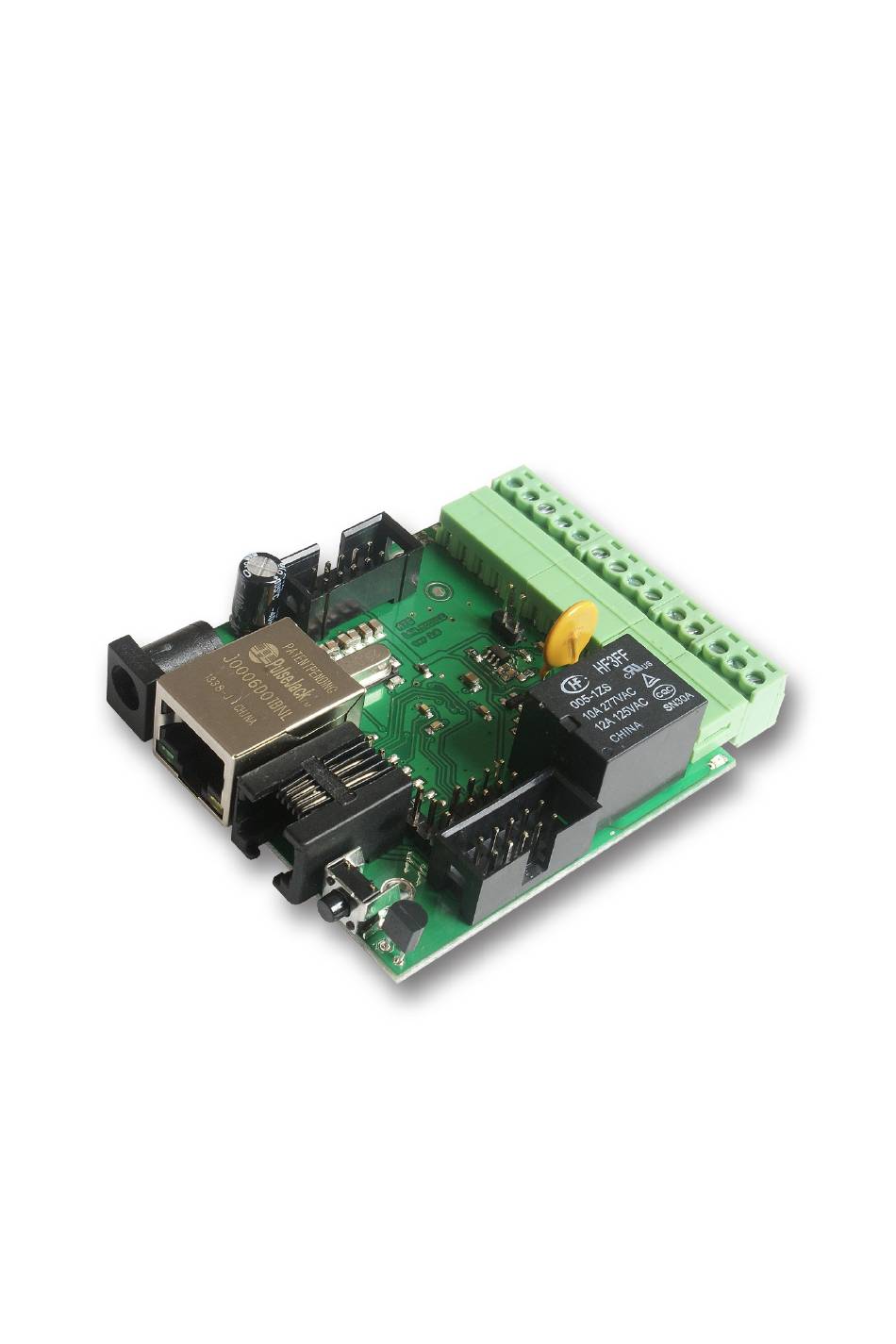

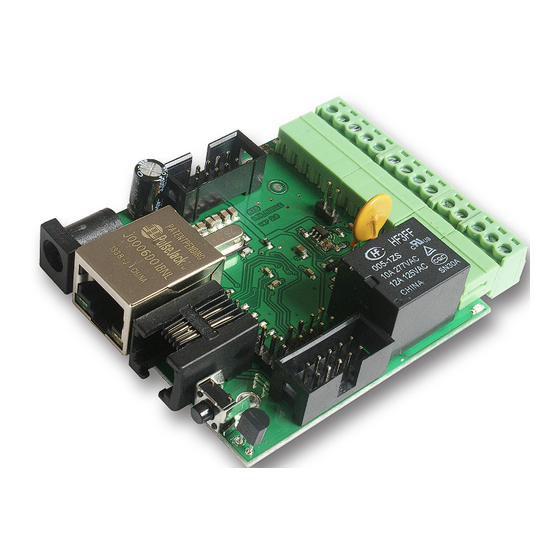

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 LAN Controller LAN Controller is a simple, but innovative device which has long been lacking in the mar- ket network solutions. A small board serves as a web server which presents the various sensor readings and allows you to remotely control up to 6 outputs.
  • Page 3 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 RESTARTER, MONITOR, CONTROLLER FEATURES: (may vary depending on the firmware version): • WWW or SNMP v2 management • firmware upgrade via TFTP • read data in real time without refreshing page • possibility switch on/off to 5 relay direct and 1 transistor output up to 1A from page...

  • Page 4: Factory Settings

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 FACTORY SETTINGS 192.168.1.100 IP address of the module: admin user: admin password: TECHNICAL SPECIFICATIONS • supply voltage: 8÷28 V DC • power consumption : about 1W • PoE supply: YES, passive (PoE max. <28V) • Protection from wrong supply polarization: YES...
  • Page 5 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 PINS and COMPONENTS DESCRIPTION IDC10-1 jumper pins power LED Power INP1D max 28V INP2D INP3D green LED INP4D Ethernet 10Mbit. INP1 - U 0÷7,2 V PoE max 28V INP2 - U 0÷36 V...

  • Page 6: Reset Button

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 RELAY BOND: NO – contact normaly open C – common contact NC – contact normaly closed ATTENTION: In spite of that relay can switch AC voltage 255 VAC 10A, board fail to com- ply with safety requirements (lack housing, earthing).

  • Page 7: Voltage Measurement

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 SENSORS CONNECT 1. Voltage measurement multiplier jumper Measure voltage: 0 ÷ 7.2 V DC INP1 (multiplier 2.0) or INP2 0 ÷ 3.6 V DC after using jumper...
  • Page 8 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 3. Connecting the current sensor ACS709 IDC10-1 Recommended installation of cables IDC10-2 OUT – Pin7 IP– Vcc – Pin3 GND – Pin5 4. Connecting the sensor LA100-P IDC10-1 –...
  • Page 9 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 5. Voltage connections to INP5 using a resistive divider IDC10-1 U = U IDC10-2 EXAMPLE U – Input voltage for the measurement – the voltage at the input INP5 (max. 3.6 V) INP5 –...

  • Page 10: Temperature Measurement

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 7. Temperature measurement INP3 PT1000 8. DHT22 sensor and pulse output from the counter (v. 3.13) The maximum frequency of counting pulses is 10 pulses per 1 second.
  • Page 11 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 9. PIR motion sensor interface IDC10-1 low state 0~0,8V IDC10-2 INP1D÷INP4D high state 0,8V~20V Vcc – Pin9 (9÷24V) GND – Pin5 delay setting after which...

  • Page 12: Control Panel

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 Management by WWW. Select the type of sensor 1. Control Panel connected to the corre- sponding input Reset time – „0” for normal outputs work (ON/OFF) , click cause for time >...
  • Page 13 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 1.1 ANALOG Inputs State (Control Panel) only v. 3.13 Added measurement of temperature diffe- The numbers of sensors: rence with the selected temperature sensors 0 – inserts 0 value, (then receive a value - the value of DIFF in the table.
  • Page 14 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 2. Events Config Delay of set outputs If checked it responds after occur events, to a change of state, in seconds max 65535 otherwise no reaction (off)
  • Page 15 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 For logical input INP1D ÷ INP4D, e-mail and SNMP Trap notification are send when in- put level change from 1 to 0 or 0 to 1, additional to email text (at end) will be add value 1 or 0 mark actual input state.
  • Page 16 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 3. Scheduler Allows you to block actions of Scheduler, if you change the input state INP1D allows you to choose which state INP1D turn on...

  • Page 17: Network Configuration

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 NOTE: Some servers (eg. Google) require authentication outgoing mail. Unfortunately, our device does not provide this functionality. To send e-mail messages, select the servers that do not require it.
  • Page 18 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 The user name and password to access the module. You can disable authorization. NTP server set- tings. Time Interval - the interval in minutes betwe- en synchroniza- tions.
  • Page 19 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 Enable Automatic Send TRAP – enable automatic send TRAP by SNMP (above TRAP Enable must be enable) only v. 3.13 Time Interval (max value 10555) – period...
  • Page 20 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 5. Watchdog (only v. 2.09) (max 65535s). Amount PING failures, after Time to respond is 4 seconds, this one of three events will be after this time if no response happen: set (ON) output, set one PING failure is counting.
  • Page 21 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 Remote Control - working as a server (receiving packets and enables / disables the corre- sponding output) or client (send packets to the server status change to INP1D or INP2D).
  • Page 22 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 Reading XML data Enter the IP address and the page name eg 192.168.1.100/st0.xml The values of the sensors should be divided by 10 Control Panel: - Dynamic data - st0.xml...
  • Page 23 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 Managing PWM by HTTP GET: change frequency: http://192.168.1.100/ind.cgi?pwmf=9777 – setup frequency to 9777 change duty: http://192.168.1.100/ind.cgi?pwmd=855 – setup duty to 85,5% http://192.168.1.100/ind.cgi?pwm=1 – activates pwm output http://192.168.1.100/ind.cgi?pwm=0 –...
  • Page 24 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 NUMBERS OID for SNMP #define SYS_DESCR (99) // iso.3.6.1.2.1.1.1.0: READONLY ASCII_STRING. #define SYS_UP_TIME (97) // iso.3.6.1.2.1.1.3.0: READONLY TIME_TICKS. #define SYS_NAME (98) // iso.3.6.1.2.1.1.4.0: READWRITE ASCII_STRING.

  • Page 25: Firmware Upgrade

    LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 Firmware Upgrade In the event that there is a new version of the software or special version for application, it is possible to load such software to the device. This can be done remotely over the ne- twork using TFTP.
  • Page 26 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 NOTES www.tinycontrol.eu...
  • Page 27 LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002 NOTES www.tinycontrol.eu...
  • Page 28 Konsorcjum ATS Sp.J. ul. Żeromskiego 75, 26–600 Radom, POLAND tel./fax: +48 48 383 00 30, e-mail: sales@ledats.pl www.tinycontrol.eu, www.ledats.pl, www.wirelesslan.pl, www.ats.pl...
