manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002

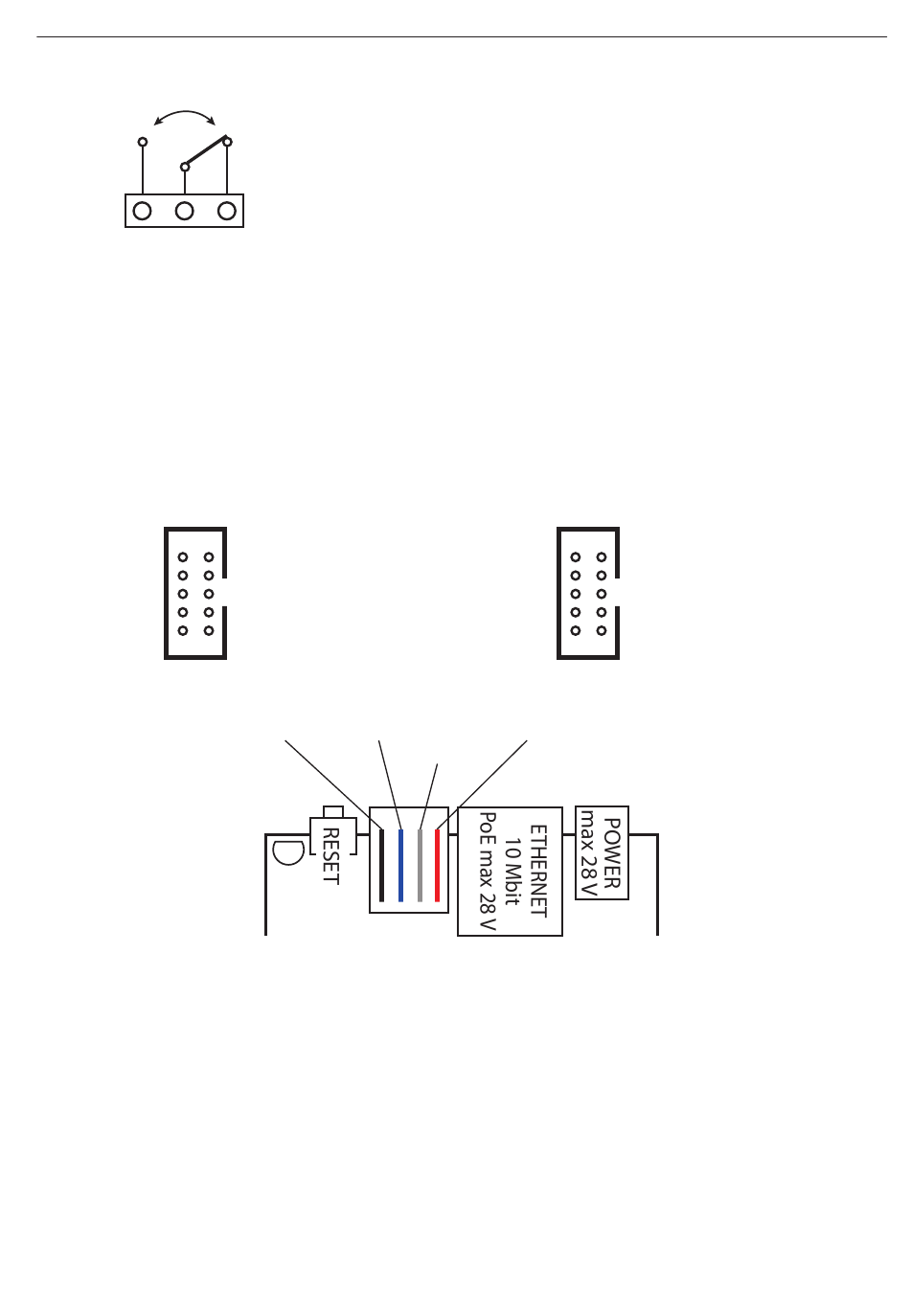

RELAY BOND:
NO C
ATTENTION: In spite of that relay can switch AC voltage 255 VAC 10A, board fail to com-
ply with safety requirements (lack housing, earthing). Therefore that receiver connect
with the assistance safety external relays eg. on DIN bus, controlled by relay on board.
IDC10-1, IDC10-2 and RJ11 (bus 1-WIRE):
IDC10-1
OUT1–10
OUT2 – 8
OUT3 – 6
OUT4 – 4
– 2

RESET BUTTON

Pressing for about 0.5 seconds to change state relays, and withstand longer to near 5 se-
conds (when we're not logged by the Web module) will reset the module, further deten-
tion for about 10 seconds to change all settings (both network and configuration ) on the
factory, reset confirmation of the settings is fast switching on and off the relay (click-click),
not to be confused with the change of status and exclusion of the relay after a reboot.
User and password: admin
IP: 192.168.1.100
NO – contact normaly open
C – common contact
NC – contact normaly closed
NC
9 – VCC
7 – PWM
5 – GND
3 – +3,6 V
1 –
GND 1-Wire
IDC10-2
INP5 –10
– 8
PWM2 – 6
PWM3 – 4
PWM1 – 2
not VCC=3.6V
use
6
www.tinycontrol.eu
9 – VCC
7 – INP4
5 – GND
3 – +3,6 V
1 – DHT22
(only v. 3.13)
