SENSORS CONNECT

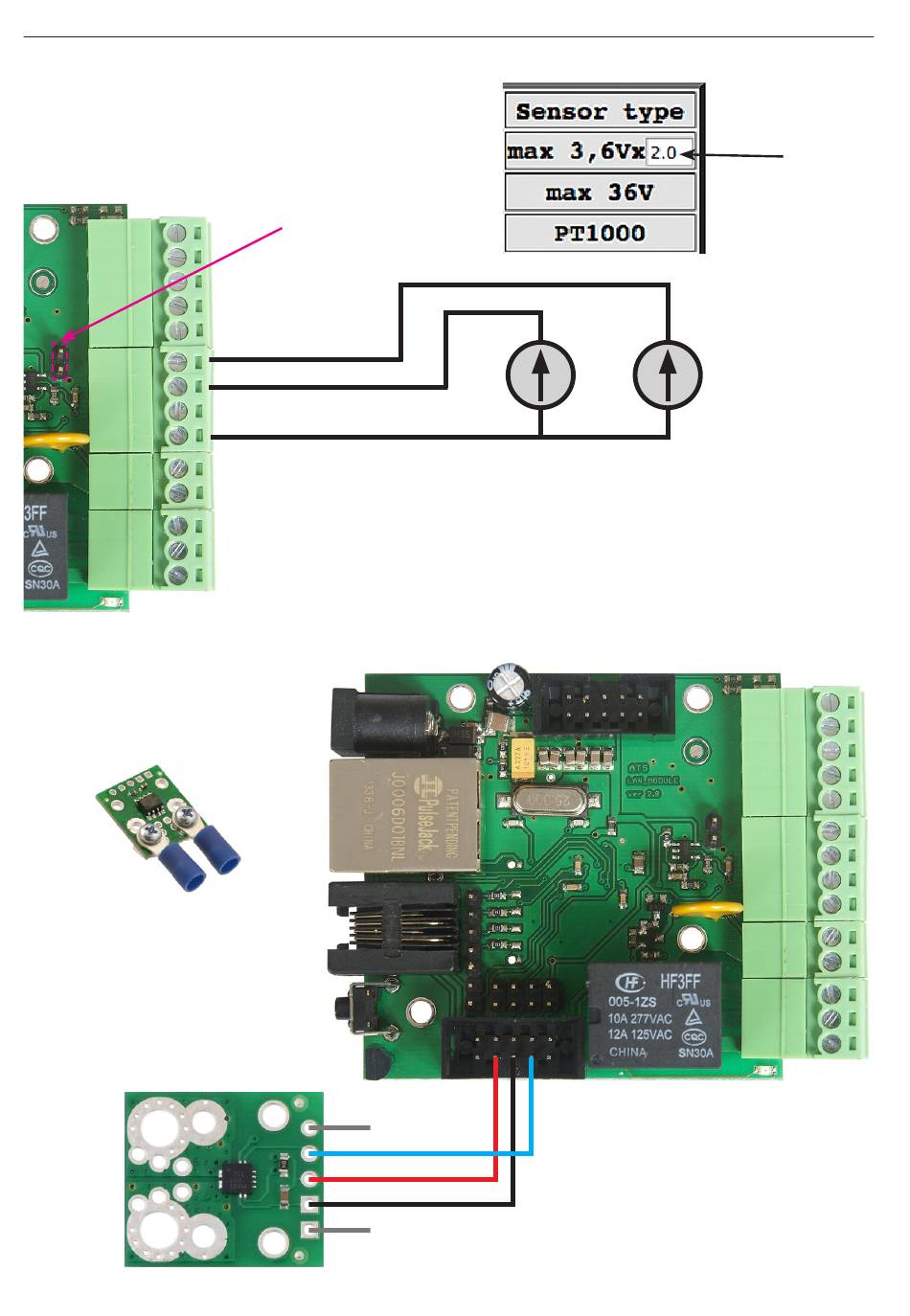

1. Voltage measurement

2. Connecting the current sensor ACS711ex
Recommended
installation of cables
IP+
IP–
manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002
jumper
INP1
INP2
GND
FAULT
OUT – Pin7
Vcc – Pin3
GND – Pin5
GND
www.tinycontrol.eu
Measure voltage:
0 ÷ 36 V DC
IDC10-1
IDC10-2
7
multiplier
Measure voltage:
0 ÷ 7.2 V DC
(multiplier 2.0) or
0 ÷ 3.6 V DC
after using jumper
and adjusting the
multiplier (multi-
plier 1.0)
