manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002

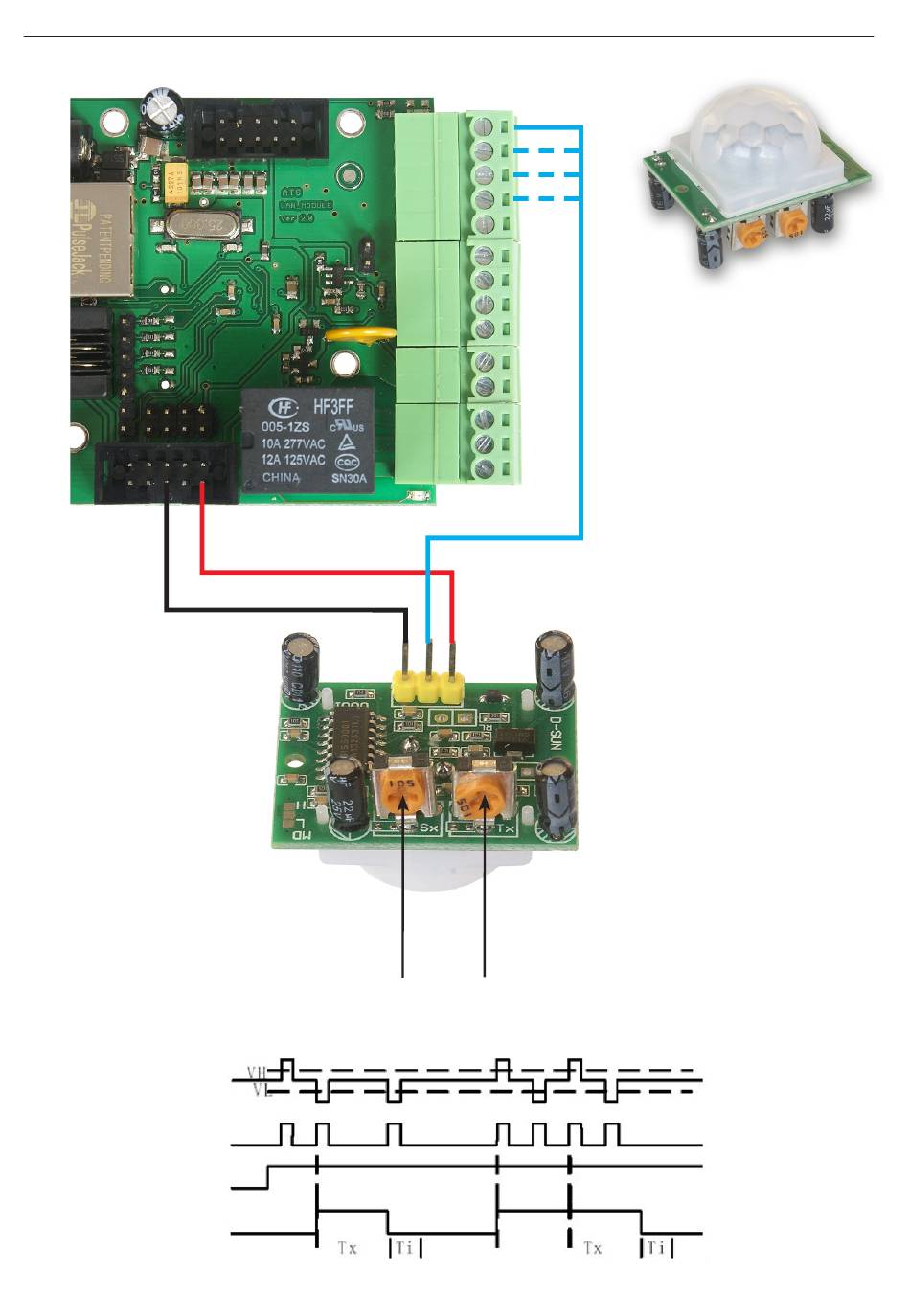

9. PIR motion sensor interface
IDC10-1
IDC10-2
Vcc – Pin9 (9÷24V)
GND – Pin5
delay setting after which
the loss of movement
can actuated output again
PIR
sensor
Detected
motion
Jumper
setting
Output
INP1D÷INP4D
setup
operation time
11
www.tinycontrol.eu
low state 0~0,8V
high state 0,8V~20V
