Tinycontrol LAN Controller V2.0 Manual page 15

For logical input INP1D ÷ INP4D, e-mail and SNMP Trap notification are send when in-
put level change from 1 to 0 or 0 to 1, additional to email text (at end) will be add value
1 or 0 mark actual input state.

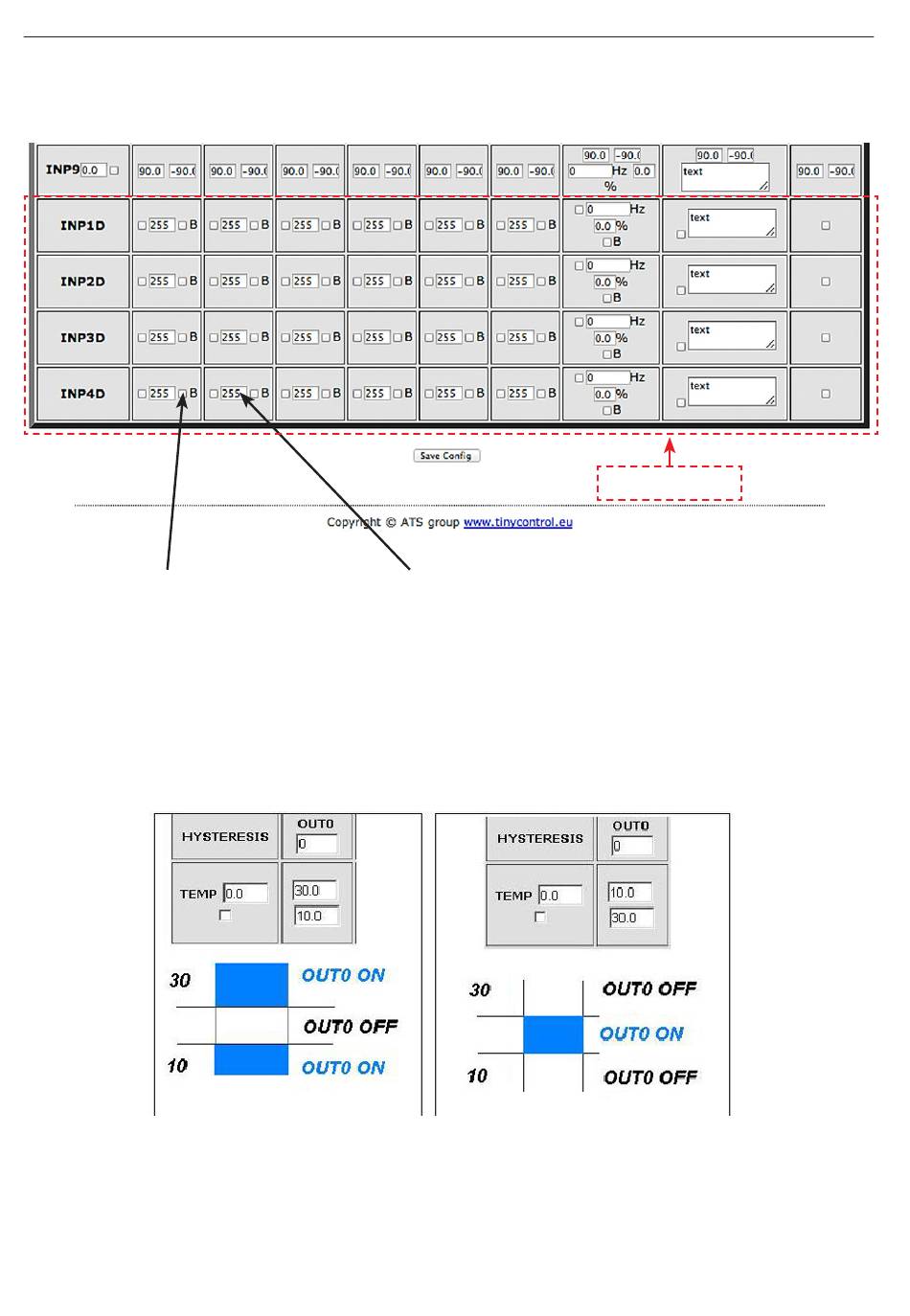

Bistable operation input
- the first change at INPD
to turn on output, the
second amendment to
disable output
Functional Description Event Table
With this change, you can flexibly define thresholds and intervals in which such slot is to
be enabled / disabled.
If you have the proper checks the condition of a number of sensors is to force the state
OUTX outputs and setting the PWM generator to be that was last registered event.
manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002
If a value greater than 0,
is at work bistable output
is automatically switched
off after this time,
max 255 seconds
