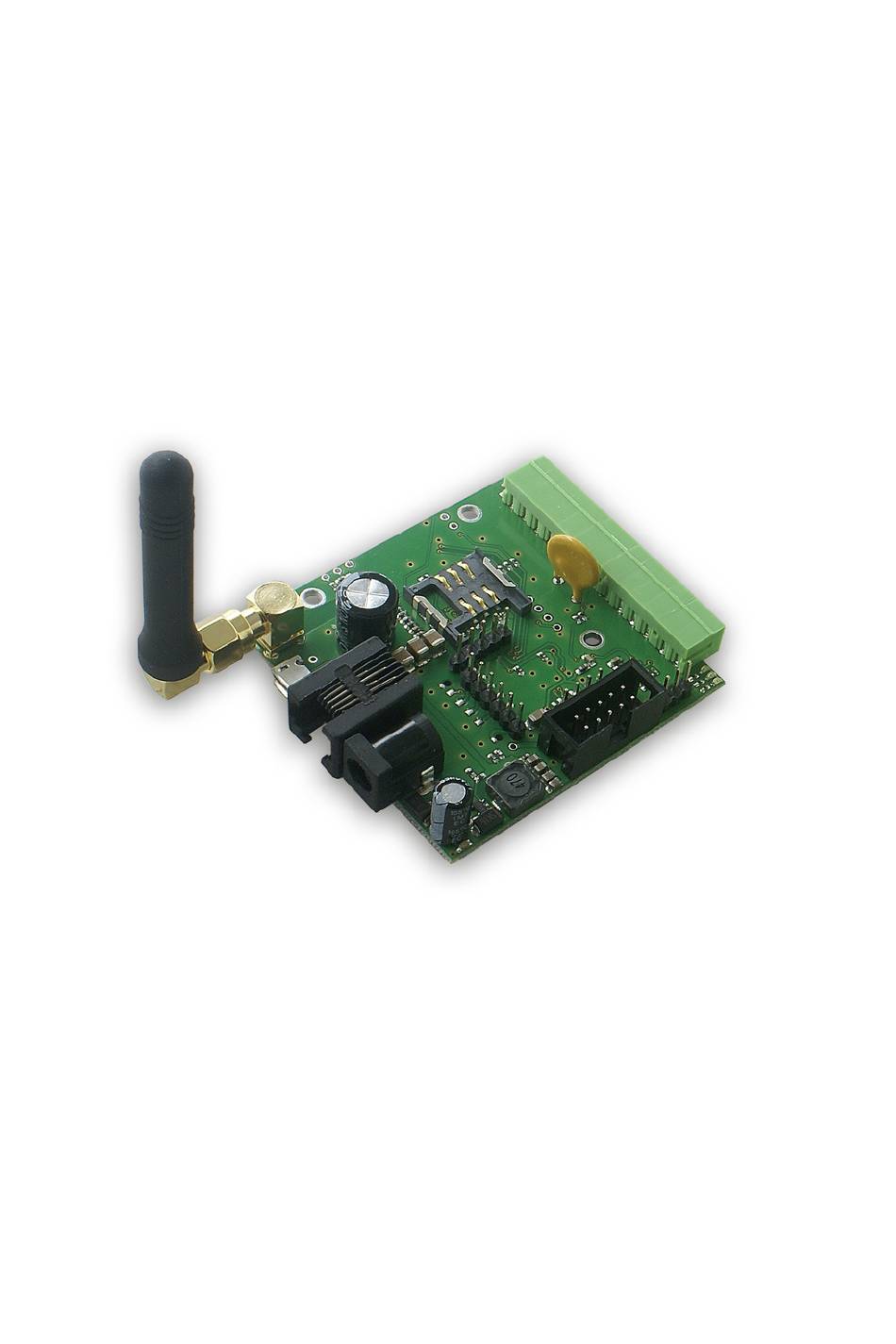

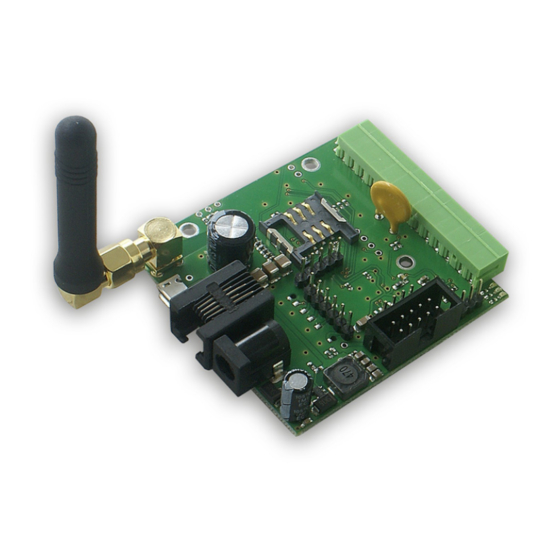

- Page 1 GSM Controller v3.0 Manual for firmware 3.15 and subsequent...
-
Page 2: Home Automation
GSM Controller v3.0 – GSMKON-030 GSM Controller GSM v3 controller allow monitor by gsm network different phisical parameters and con- trol remotely on/off 5 outputs. Control is done through SMS messages and monitoring can be run by SMS or gprs data transmission to internet server. Http datas can be sent for example to www.thingspeak.com server, where are not only collected but can be read as... - Page 3 GSM Controller v3.0 – GSMKON-030 RESTARTER, MONITOR, WATCHDOG, CONTROLLER BASIC POSSIBILITIES: • management by SMS or USB (after connecting to computer), • monitoring by gprs transmission to http server, by SMS received on user phone or by USB, • upgrade new firmware by USB port • monitoring logic states, for example move sensors, position detectors...
- Page 4 GSM Controller v3.0 – GSMKON-030 INPUT/OUTPUT: • 1 TRANSISTOR OUTPUT: to power other devices, it gets voltage from the power supply, max 28V - 1A • 4 OUTPUT open collector type (transistor BC847B): for switching relays, PoE ports, or other devices;...
- Page 5 GSM Controller v3.0 – GSMKON-030 PINS and COMPONENTS DESCRIPTION Upgrade PIN GND SIM card socket LED4 - GSM LED antenna, SMA INP1D INP2D INP3D micro USB INP4D OUT0=Usupply INP6 - RJ11- INP3A - U 0÷3.3 V 1-Wire for DS18B20 INP2A - U 0÷3.3 V...
-
Page 6: Description Of Commands
GSM Controller v3.0 – GSMKON-030 IDC10 and RJ11 (bus 1-Wire): 1-Wire VCC=3.6V used IDC10-1 IDC10-2 OUT1–10 9 – VCC INP5 –10 9 – VCC OUT2 – 8 7 – PWM – 8 7 – INP4 OUT3 – 6 5 – GND PWM2 –... -
Page 7: List Of Commands
GSM Controller v3.0 – GSMKON-030 LIST OF COMMANDS: 1. reboot – activates certain output / output for the specified time Examples: reboot=3,4 – will switch outputs 3 and 4 to the default time set by the command "time"; reboot=1,0,3,t34 – activates output 1, 0 (transistor output), 3 at time 34 seconds;... - Page 8 GSM Controller v3.0 – GSMKON-030 14. name – sets the name of the device, max. 32 characters Examples: name=home device 15. upgrade – runs the bootloader mode to update the software, flash simultaneously LED2 and LED3, to update special software is needed, the command without parameters 16.
- Page 9 GSM Controller v3.0 – GSMKON-030 must be divided by 100, for PT1000 and DHT divided by 10. adcprint=2 – displays the values directly (without any conversion to a voltage as above) with 12-bit converter for analog inputs VIN, PT1000, INP1A, INP2A, INP3A, values can vary from 0 to 4096, depending on the size of the measured voltage, eg for INP1A - for 0 volts will be set to 0, the 35V will be similar to 4096, for INP2A and INP3A, for 0 volts is 0 for 3.3V...
- Page 10 GSM Controller v3.0 – GSMKON-030 36. httpurl – sets the url as GET requests sent to the server Examples: httpurl=api.thingspeak.com/update?key=H2PN0O35KRVRG6Q0&field1=#1,&field2=#2 – hash of the value is the number of the sensor, and this place will insert the value of this sensor.
- Page 11 GSM Controller v3.0 – GSMKON-030 41. cusd – sending short codes Examples: cusd=*100# – shows the status of the account on the GSM operator (PLUS (PL)) 42. signal – reads the GSM signal strength 43. upinpd – determines the logic input activates the state of high Examples: upinpd=1,3 –...
-
Page 12: Software Upgrade
GSM Controller v3.0 – GSMKON-030 Software upgrade Upgrade PIN GND micro USB POWER max 28 V Upgrade Procedure Turn off the power. Connect GSM v3 controller to a Windows computer via a USB cable. Short together the pins Upgrade and GND.
