Tinycontrol LAN Controller V2.0 Manual page 16

manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002

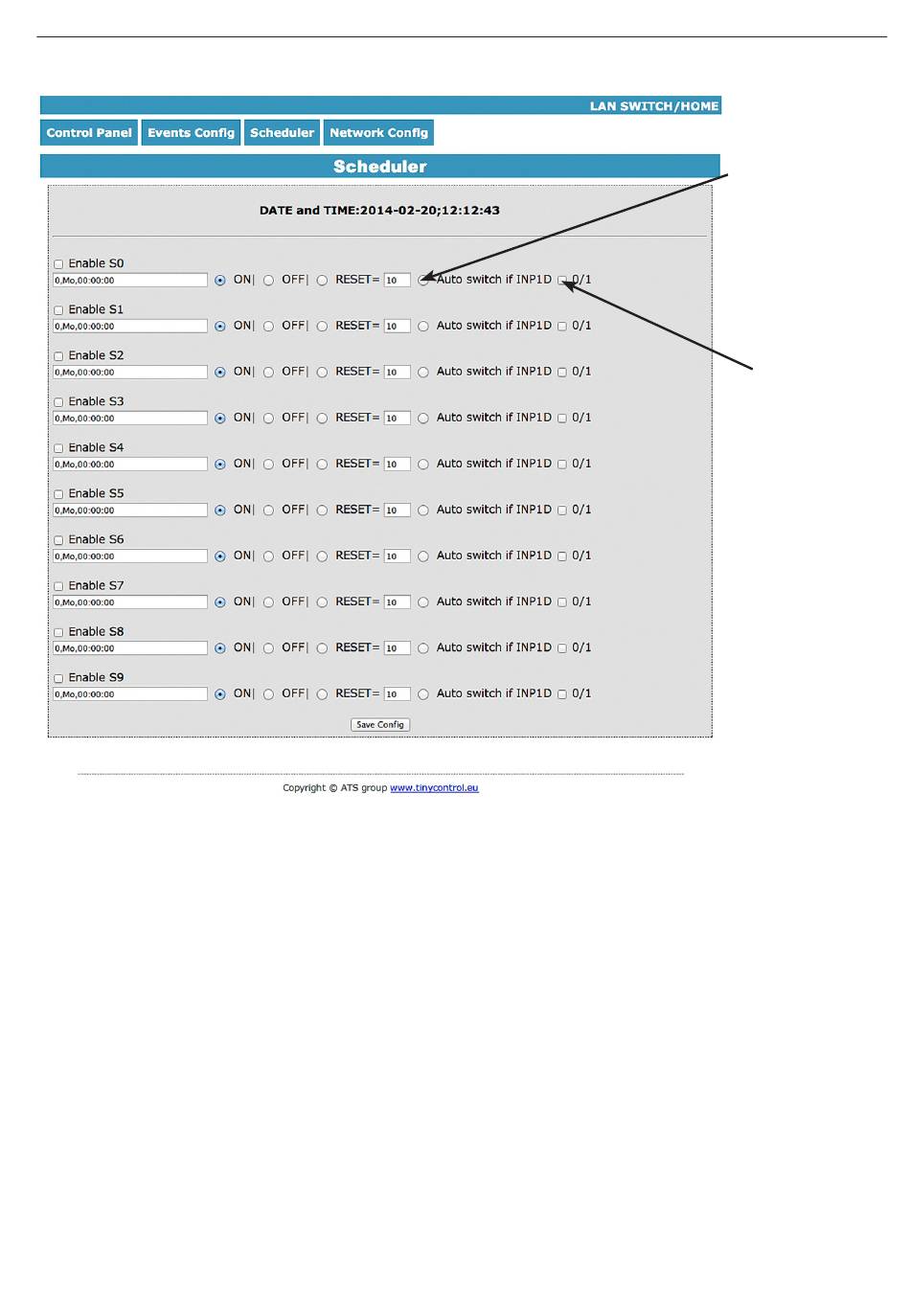

3. Scheduler
Format: number output (from 0 to 4),day1,day2,day3,day4,day5,day6, xx:xx:xx(time)
Week Day: Mo - Monday, Tu- Tuesday, We - Wednesday, Th - Thursday, Fi - Friday, Sa - Sa-
turday, Su - Sunday, ## - all week day. Letter size is important.
Example:
0,Mo,12:23:00 - sets out0 every Monday at 12:23:00
1,Sa;Fi,Mo,23:22:03 - sets out1 every Saturday, Friday and Monday at 23:22:03
1,Sa;Fi,Mo,Tu,Su,Th,23:22:03 - sets out1 every Saturday, Friday, Monday, Tuesday, Sunday
and Thursday at 23:22:03
0,##,12:01:30 - sets out0 every week day at 12:01:30
The effect of this may be the inclusion of a relay, switched off or reset (turn on and off) for
a limited period in seconds. (max 65535).
16
www.tinycontrol.eu
Allows you to
block actions
of Scheduler,
if you change
the input state
INP1D
allows you
to choose which
state INP1D
turn on
the lock
