Control Panel - Tinycontrol LAN Controller V2.0 Manual

manual LAN Controller V2.0 – Firmware: HOME v. 3.13 and ISP v. 2.09 – LANKONT-002
Management by WWW.

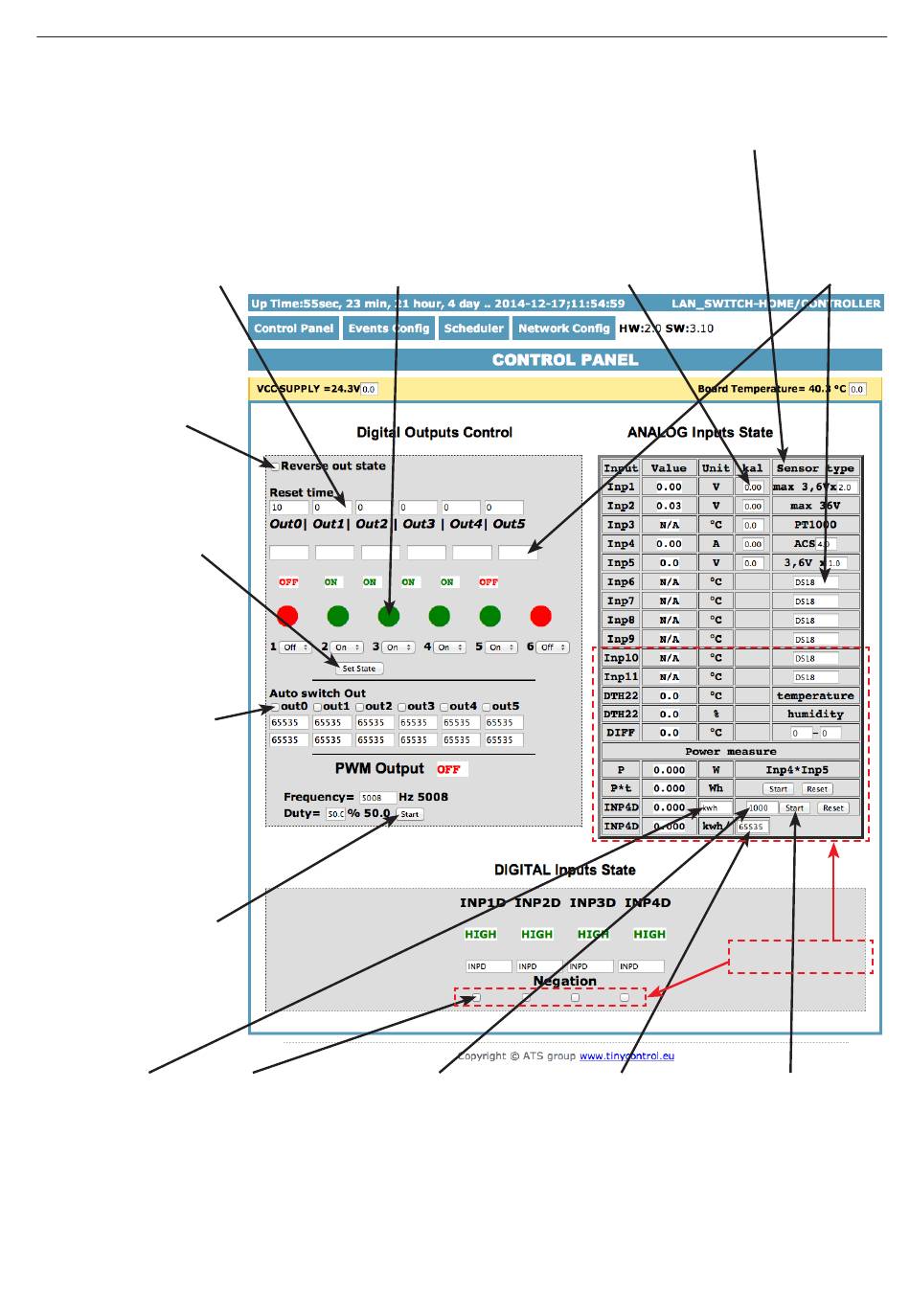

1. Control Panel

Reset time – „0" for normal
outputs work (ON/OFF) ,
for time > 0 output change
state and return to state be-
fore after the specified time
in seconds (max 65534).
Change outputs
state display
Set State
All output
simultaneously
according to
combo box
automatic socket
arming at fixed
time (two panes:
one - time arming,
second - break
time)
Run PWM genera-
tor (when chan-
ging frequency or
fill does not need
to turn off the
generator)
Any description Negation for
of the measured digital input
physical for Even Con-
quantity, fig tripping
(only v. 3.13)
such as kWh,
L/min, etc.
(only v. 3.13)
click cause
change relay
state on opposite
(OUT0 relay on
board)
Divider pulse counter
- for example as ours
energy meter sends 1000
pulses per 1 kWh is enter
1000, as it sends 1600
pulses enter 1600, etc.
(only v. 3.13)
12
www.tinycontrol.eu
Select the type of sensor
connected to the corre-
sponding input
Value of calibration
- adds to or subtracts
the desired value
Time avera-
ged over
a values
and INP5 (current)
of power
measurement
(in minutes)
(only v. 3.13)
Any text
description,
max 8 chars
only v. 3.13
Run Power
measure from
INP3 (voltage)
(only v. 3.13)
