Cockpit - Maxxus 7.3 Installation & Operating Manual

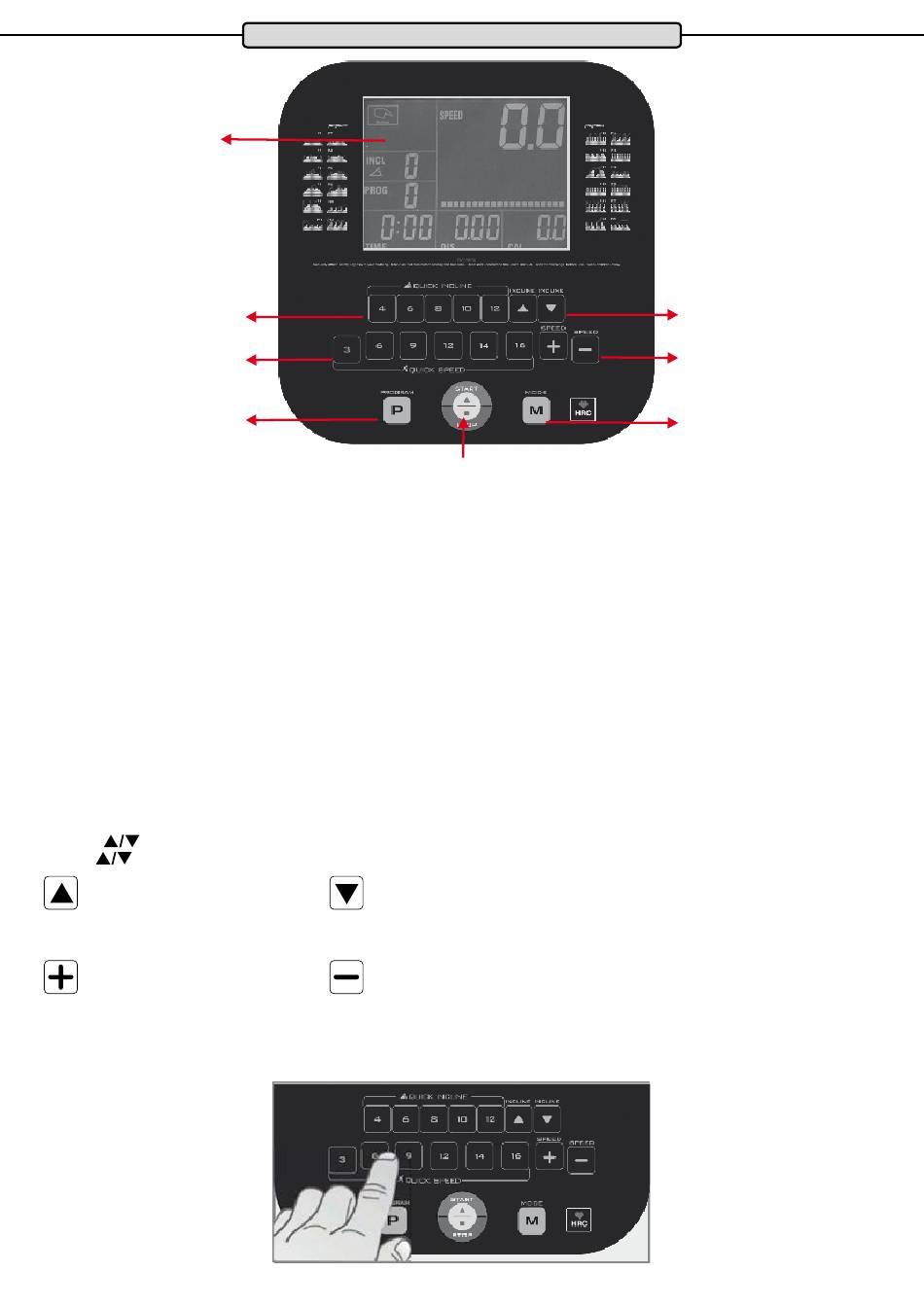

LCD display
Direct dial keys - slope
Speed dial buttons - km / h
PROGRAM button
The display informs you about the following training values:
CAL* Energy consumption in kcal
INCL Incline
PULSE
when using hand sensors: Pulse
When using a Transmitter Chest Belt*: Heart Rate
*not included in scope of delivery - available as accessory
* Note on calorie measurement
The calculation of the energy consumption is done by means of a general formula. It is not possible to determine an individual energy consumption exactly, without a large
amount of personal data. Therefore the displayed energy consumption is a generally calculated value, not one value individually aligned to the current user.
Display
The display of the cockpit is a blue backlight LCD display. The blue backlight allows a clear view of the training data even in the dark.
LCD profile matrix
The graphic representation of the programs is shown using a profile matrix. The current training area will be indicated by a flashing seg-
ment.
INCLINE buttons (slope)
Use the buttons to adjust the incline in 1% increments.
= Slope is increased
SPEED +/-
Use the +/- buttons to adjust the speed in 0.1 km / h increments.
= Speed is increased
Direct selection buttons
The cockpit on your treadmill has 5 direct-access keys for incline and 6 direct-access keys for speed. These speed dial buttons allow
you to quickly and easily select specific speeds or gradients.

Cockpit

START / STOP button
TIME
SPEED
DIS
= Slope is reduced
= speed is reduced
14
Control buttons - gradient
Control buttons - km / h
MODE button
Training time
Speed in km/h
Training distance in km
