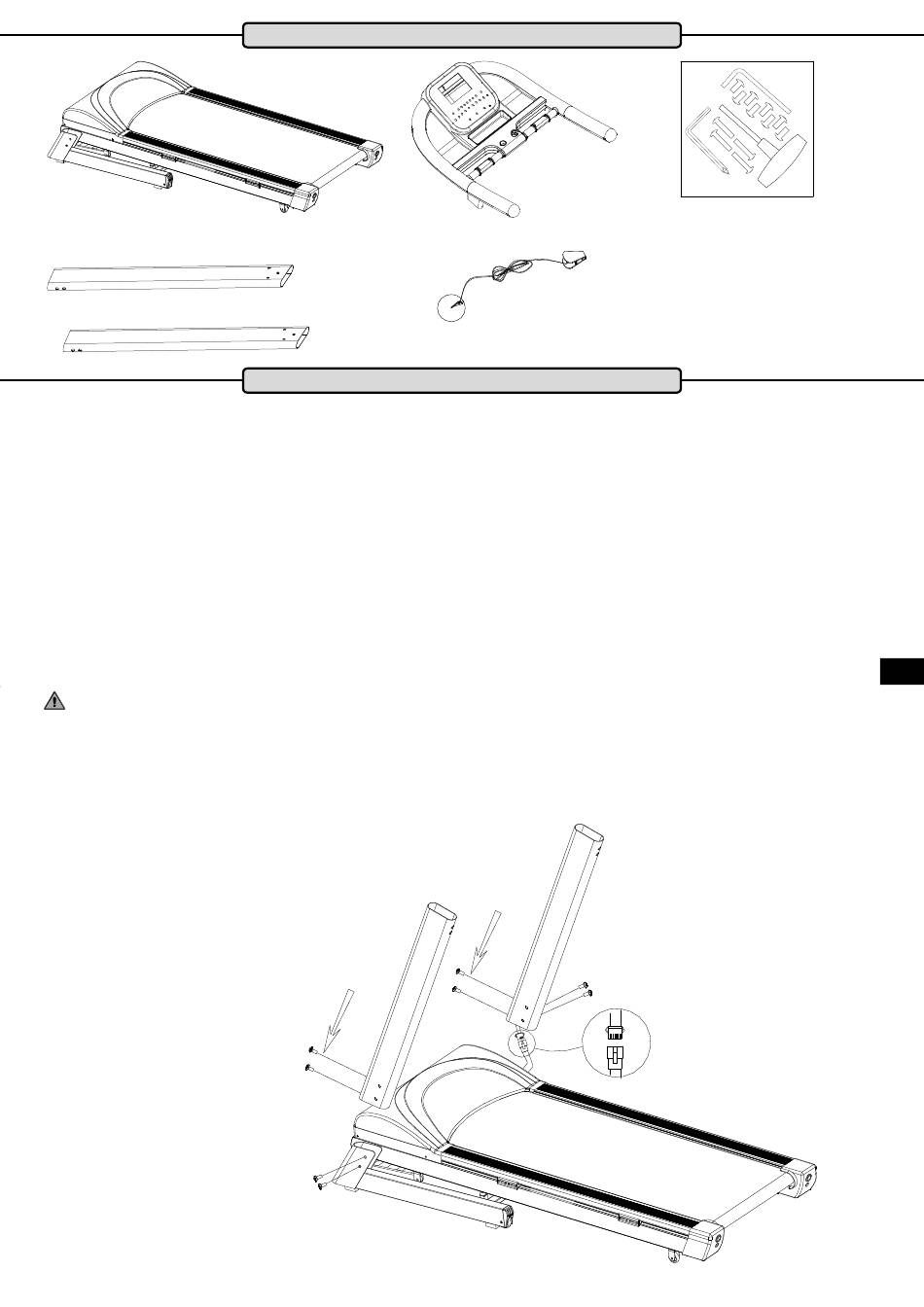

Scope Of Delivery - Maxxus 7.3 Installation & Operating Manual

Table of Contents

Base Frame

Side Frames

Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and

heavy.

Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered.

Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assembly are not

covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully before you start assemb-

ling, follow each assembly step exactly as described and keep to the correct sequence of assembly as instructed.

Assembly of the training device must be carried out carefully by adults only.

Assemble the training device in a location which is level, clean and clear of obstructions. 2 people are required to carry out

the assembly.

Training can only start when the training device has been fully assembled.

Step 1:

Connect the cockpit cable that sticks out from the right side frame, with the cable coming out of the

right side of the base frame.

Then insert the right side frame into the right frame of the base frame and fasten it with two hexagon socket screws M8x50

and from behind with two hexagon socket screws M8x20.

ATTENTION: Make sure that you do not squeeze or damage the cables.

Now insert the left side frame into the left frame of the base frame and fix it with two hexagon socket screws M8x50 and

from behind with two hexagon socket screws M8x20.

Hexagon socket screw, M8x20

Hexagon socket screw, M8x50
