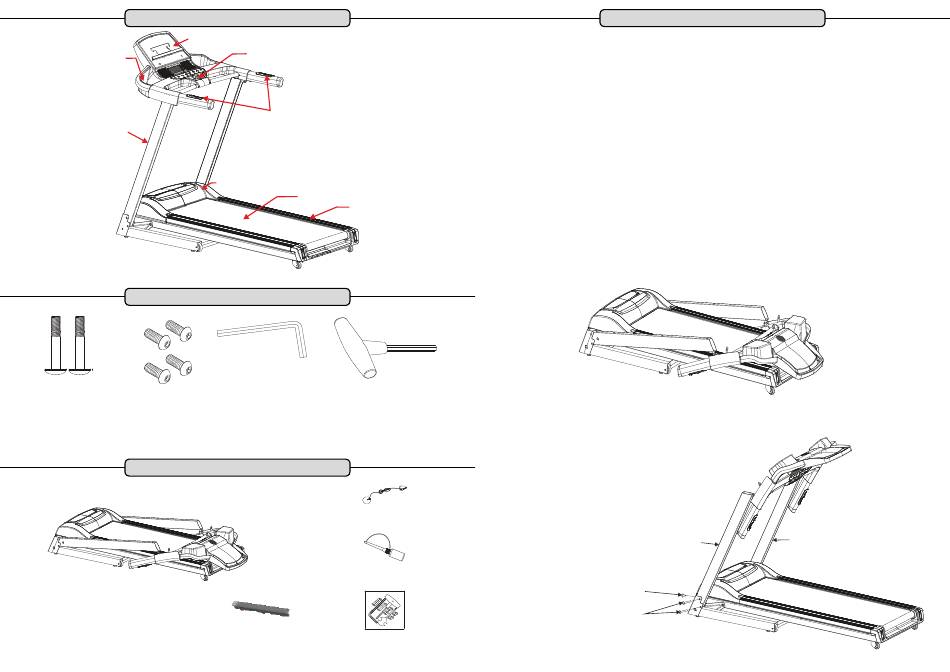

Overview of the Device

Cockpit
Storage Pocket
Side Frames
Assembly Material & Tools
Socket Head Screw Socket Head Screw
M8x50 M8x15
2 Pieces 4 Pieces
If preferred, the tools supplied may be supplemented or replaced by your own tools.
Make sure that each tools are an exact fitting to the parts.

Scope of Delivery

Base Frame
Safety Key
Hand Pulse Sensor
Motor Housing
Running Deck
Foot Rail
Spanner for Socket Head
Screw S6
Safety Key
Maintenance Oil
M8X15
Tablet-PC Holder
Set of Screws
4
Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and
heavy.
Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered.
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assembly are not
covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully before you start assem-
bling, follow each assembly step exactly as described and keep to the correct sequence of assembly as instructed.
Assembly of the training device must be carried out thoroughly by an adult person only.
Assemble the training device in a location which is level, clean and clear of obstructions.2 people are required to carry out
the assembly.
Training can only start when the training device has been fully assembled.
Step 1:
Lift both upright side frames (4L / 4R) simultaneously until they are pressed into the bearings on the base frame. The bore-
holes on the side frames should be in line with the boreholes on the base frame.
Screw in two socket head screws M8x50 at each side of the frame (4L/4R) and one M8x15 socket head screw at the front
of each side of the frame.
Allen Key
Assembly
4R
4L
M8x15
M8x50
