Chapter 9 Troubleshoot the System

System Identification Errors

224

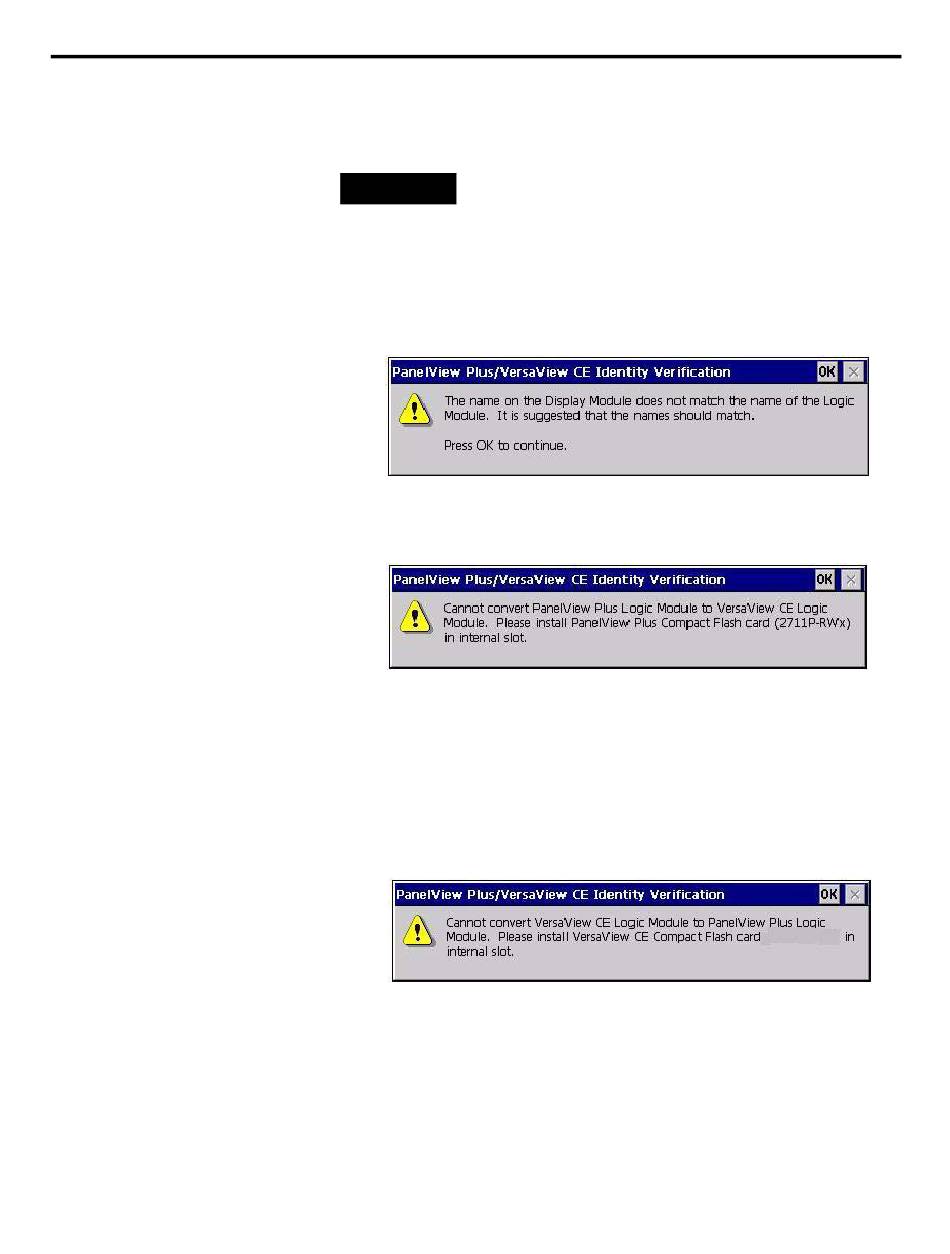

The error messages in this section appear on startup if incorrect or
invalid components are used with the 700 to 1500 terminals.
Terminals manufactured after January 2007 switch displays
TIP
without displaying the following error messages.
• This dialog appears if a PanelView Plus CE logic module is
attached to a PanelView display module. We recommend that
you use a PanelView Plus CE display module with a PanelView
Plus CE logic module. This is a warning letting you continue to
operate.
• This dialog appears if the PanelView Plus logic module contains
a 2711P-RWx internal CompactFlash card for the PanelView Plus
CE terminal.
After pressing OK, you will be asked to power off the terminal
and insert a valid 2711P-RWx internal CompactFlash card for the
PanelView Plus terminal.
• This dialog appears if the PanelView Plus CE logic module
contains a 2711P-RWx internal CompactFlash card for the
PanelView Plus terminal.
.
After clicking OK, you will be asked to power off the terminal
and insert a valid 2711P-RWx internal CompactFlash card for the
PanelView Plus CE terminal.
(6189-RWX)
