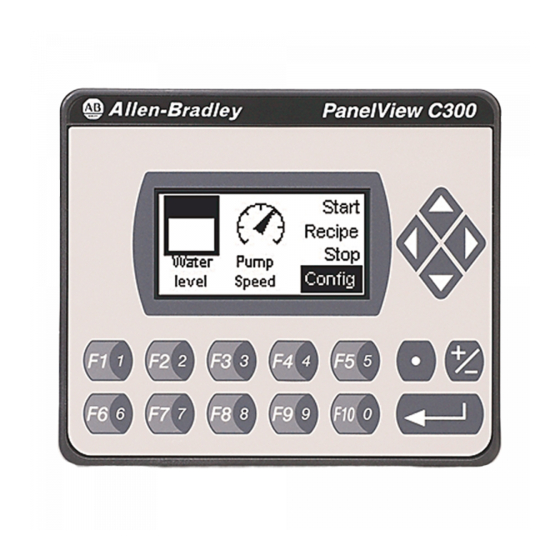

- Page 1 PanelView Component HMI Terminals Quick Start (Catalog Numbers 2711C-F2M, 2711C-K2M, 2711C-T3M, 2711C-K3M, 2711C-T6M, 2711C-T6C, 2711C-T6T, 2711C-T10C)
- Page 2 In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Where To Start
Where to Start Chapter 1 Review Sample Application Chapter 2 Make Terminal Connections Chapter 3 Open a New Application Chapter 4 Configure Communication Chapter 5 Create Tags Chapter 6 Create the Motor Status Screen Chapter 7 Create the Motor Speed Screen Chapter 8 Create Alarms Chapter 9... -
Page 4: Browser Configuration To Access The Design Environment
Browser Configuration to Access the Design Environment The PanelView Explorer design-time environment is accessed through a web browser by connecting your computer to the PanelView Component terminal over an Ethernet or USB connection. Before connecting your computer to the USB port of the PanelView Component terminal, IMPORTANT you must first install the "PanelView USB RNDIS Device"... -
Page 5: Df1 Runtime Configuration
DF1 Runtime Configuration The DF1 configuration shows the PanelView Component C600 terminal connected to the MicroLogix 1100 controller using the 1761-CBL-PM02 cable. One end of the cable connects to the RS-232 serial port of the terminal and the other end connects to the Channel 0 port of the controller. The terminal and computer are connected to a DHCP-enabled Ethernet network using an Ethernet switch. - Page 6 Notes: Publication 2711C-QS001F-EN-P - November 2010...
-
Page 7: Table Of Contents
Table of Contents Where to Start Browser Configuration to Access the Design Environment ..4 DF1 Runtime Configuration ........5 Ethernet Runtime Configuration. - Page 8 Table of Contents Follow These Steps ........38 Configure DF1 Communication .
- Page 9 Table of Contents Create a Numeric Display ........84 Create a Heading for the Numeric Display.
- Page 10 Table of Contents Notes: Publication 2711C-QS001F-EN-P - November 2010...
-
Page 11: Preface
This quick start was created to assist application designers on how to create applications to run in a PanelView Component HMI terminal. The designer may or may not be familiar with Rockwell Automation HMI software. An understanding of Rockwell Automation controllers and communication protocols is helpful but not necessary. -
Page 12: Required Software
Required Software To complete this quick start, the following software is required: • PanelView Explorer software, V1.0 or higher This software is resident on your PanelView Component terminal. Separate software is not required. After establishing an Ethernet connection between your terminal and computer, you can launch the PanelView Explorer software from your web browser by entering the IP address of the terminal. -
Page 13: Parts List
Parts List This quick start uses the following hardware. Quantity Catalog Number Description 2711C-T6C PanelView Component C600 touch-screen, color terminal 1763-L16xxx MicroLogix 1100 controller 2 or 3 Standard Ethernet cable or Standard Ethernet cable or crossover Ethernet cable 2711P-CBL-EX04 This cable is used to connect the terminal to the computer using the Ethernet port of the terminal for design-time configuration. -
Page 14: Additional Resources
Additional Resources Resource Description PanelView Explorer online help Provides information on how to use the design environment of the PanelView Explorer software. PanelView Component HMI Terminal Provides information on how to install the PanelView Component terminal in a Installation Instructions, publication panel. -
Page 15: Introduction
Chapter Review Sample Application Introduction In this chapter, you will review the purpose of the sample application and the actual screens in the application. Topic Page Purpose of Application Motor Status Screen Motor Speed Screen Alarm Banner Application Tags Before You Begin Review the where to start section and preface. -
Page 16: Follow These Steps
Chapter 1 Review Sample Application Follow These Steps Review the sample application. Purpose of Alarm Banner Application page 16 page 19 Motor Status Application Screen Tags page 17 page 20 Motor Speed Screen page 18 Purpose of Application The sample application contains screens and objects to control and monitor the status of a motor. The PanelView Component terminal reads and writes data to a MicroLogix controller using: •... -
Page 17: Motor Status Screen
Review Sample Application Chapter 1 Motor Status Screen The Motor Status screen is one of two screens in the application. It is the startup screen when the application is loaded and running in the terminal. The Motor Status screen lets you: •... -
Page 18: Motor Speed Screen
Chapter 1 Review Sample Application Motor Speed Screen The Motor Speed screen lets you: • enter a new motor speed. • increase or decrease the motor speed in increments. • monitor the motor speed. • navigate to the Motor Status screen. Objects on the Motor Speed Screen This object Performs this function... -
Page 19: Alarm Banner
Review Sample Application Chapter 1 Alarm Banner The alarm banner is a global display that pops up over the Motor Status or Motor Speed screen when an alarm is triggered. The alarm banner lets you: • read a message associated with a triggered alarm. •... -
Page 20: Application Tags
Chapter 1 Review Sample Application Application Tags The sample application uses read and write tags to define how objects interact with addresses in the MicroLogix 1100 controller. The tags read or write data to a bit or integer file. Objects that do not read or write to a controller address such as screen buttons or headings do not require a tag. -
Page 21: Introduction
Chapter Make Terminal Connections Introduction In this chapter, you will connect a PanelView Component C600 terminal to your computer, connect power, get the IP address of terminal, and launch the PanelView Explorer software. Topic Page Connect Terminal to Computer Connect Power to Terminal Get the IP Address of Terminal Launch PanelView Explorer Configure Browser Settings... -
Page 22: Follow These Steps
Chapter 2 Make Terminal Connections • Allen-Bradley PanelView USB remote NIDS Network Device driver installed on computer for USB port connection only. This driver does not work with the Windows 2000 operating system. See the PanelView Component Terminal User Manual, publication 2711C-UM001, for details on how to install this driver. -
Page 23: Connect Terminal To Computer
Make Terminal Connections Chapter 2 Connect Terminal to Computer For Ethernet Cable Connection PanelView Component C600 and C1000 terminals support an Ethernet port connection and will require a computer with the Windows 2000, XP, or Vista operating system. 1. Connect one end of a standard Ethernet cable to the Ethernet port on your PanelView Component... -
Page 24: Connect Power To Terminal
Chapter 2 Make Terminal Connections Connect Power to Terminal 1. Optionally, remove the terminal block from the terminal for ease of wiring. 2. Insert the DC+, DC-, and the functional-earth ground wires and tighten terminal screws. 3. Re-attach terminal block to Functional terminal. -
Page 25: Get The Ip Address Of Terminal
Make Terminal Connections Chapter 2 Get the IP Address of Terminal For Ethernet Port Connection 1. Press the Communication button. 2. Write down the IP address. You will need this IP address when launching PanelView Explorer from your Internet browser. If you are not using an IP address from a DHCP enabled network, then... -
Page 26: Launch Panelview Explorer
Chapter 2 Make Terminal Connections Launch PanelView Explorer Internet Explorer 7 Web Browser, or Mozilla Firefox 2.0 or 3.0 Web Browser 1. Launch your Internet browser. 2. Type the IP address of your PanelView Component terminal in the web address field. -
Page 27: Configure Browser Settings
Make Terminal Connections Chapter 2 Configure Browser Settings Browser changes are required before using the PanelView Explorer design environment. For optimal performance, the Internet Explorer 7 browser or the Firefox 2.0 or 3.0 browser is recommended. All Browsers 1. Verify that cookies are enabled. - Page 28 Chapter 2 Make Terminal Connections 5. If the preference name does not exist, right-click in the main window and select New>Boolean. 6. Type this preference name. signed.applets.codebase_principal_support 7. Enter true for the Value. The first time you copy and paste data from a PanelView Explorer grid or state editor to Excel, a security dialog will open to alert you that a...
- Page 29 Make Terminal Connections Chapter 2 Internet Explorer 6 and 7 The Windows clipboard is used to copy and paste data in applications such as Excel and text documents. To copy and paste data between PanelView Explorer and Windows applications, you must enable your browser to access the Windows clipboard.
- Page 30 Chapter 2 Make Terminal Connections Internet Explorer 7 6. Click the Sites button. 7. Click the Advanced button. 8. In the Add this website to the zone field, enter the IP address of your terminal, in the format http://10.90.95.13. 9. Click the Add button. 10.
-
Page 31: Introduction
Chapter Open a New Application Introduction In this chapter, you will open a new application and modify settings that are global to the application. Topic Page Open a New Application Modify Application Settings Before You Begin • Review the sample application. •... -
Page 32: Follow These Steps
Chapter 3 Open a New Application Follow These Steps Complete these steps to open a new application, review the screens view, and modify global application settings. Open a New Application page 32 Modify Application Settings page 35 Open a New Application Applications are created with default file names that you can change when saving the application. - Page 33 Open a New Application Chapter 3 The design environment opens in a separate window, showing the Screens view. 2. Review areas of screen. This is where you will spend most of your time. Screen area Description Navigation tabs Provides access to the different functional areas of an application. Application toolbar Provides common tools that are available toall views of the application.
- Page 34 Chapter 3 Open a New Application Screen area Description Screen toolbar Contains tools that operate on selected objects inthe screen workspace. Also contains a tool for turning the screen grid on or off. Properties panel Contains panels of properties to configure the appearance, navigation, common properties, or connection tags of a selected object.
-
Page 35: Modify Application Settings
Open a New Application Chapter 3 Modify Application Settings The Settings tab contains design-time settings that are global to an application. Changes made on this tab affect all screens in the application. 1. Click the Settings tab. 2. Check the Default Font Bold checkbox. - Page 36 Chapter 3 Open a New Application Notes: Publication 2711C-QS001F-EN-P - November 2010...
-
Page 37: Introduction
Chapter Configure Communication Introduction In this chapter, you will configure runtime communication settings for your application. Topic Page Configure DF1 Communication Configure Ethernet Communication Load Runtime Settings with Application Save the Application Before You Begin • Review the sample application. •... -
Page 38: Follow These Steps
Chapter 4 Configure Communication Follow These Steps Complete the appropriate steps to configure DF1 or Ethernet runtime communication settings for the PanelView Component terminal and the MicroLogix 1100 controller. Configure DF1 Communication page 39 Configure Ethernet Communication page 40 Load Runtime Settings with Application page 42... -
Page 39: Configure Df1 Communication
Configure Communication Chapter 4 Configure DF1 Communication This topic shows how to configure runtime settings to enable DF1 point-to-point communication between your PanelView Component terminal and a MicroLogix 1100 controller. The DF1 settings for the PanelView Component terminal match the default settings of the MicroLogix controller. 1. -
Page 40: Configure Ethernet Communication
Chapter 4 Configure Communication Configure Ethernet Communication This topic shows how to configure runtime settings to enable Ethernet communication between your PanelView Component terminal and a MicroLogix 1100 controller. It is not necessary to configure settings for the terminal if using DHCP-enabled network IP addresses. If the target terminal for an application uses a static IP network address, you would enter the address on the USB/Ethernet tab. - Page 41 Configure Communication Chapter 4 4. Under Controller Settings: a. Accept the default name PLC-1. a. Verify that MicroLogix 1100 is selected in the Controller Type field. b. Type the IP address of the controller in the Address field. Publication 2711C-QS001F-EN-P - November 2010...
-
Page 42: Load Runtime Settings With Application
Chapter 4 Configure Communication Load Runtime Settings with Application This section does not apply to the sample application but is information that you may find helpful when creating future applications. There may be times when you want to load an application on a terminal that has a static IP network address. -
Page 43: Save The Application
Configure Communication Chapter 4 Save the Application The first time you save an application, a dialog opens where you can rename the application to something more meaningful. By default, applications are saved to internal storage of the terminal. You can also save applications to a USB flash drive or SD memory card if one is loaded in the terminal. - Page 44 Chapter 4 Configure Communication Notes: Publication 2711C-QS001F-EN-P - November 2010...
-
Page 45: Create Tags
Chapter Create Tags Introduction In this chapter, you will create tags used by the sample application. You must create tags before you can assign them to objects. Topic Page Review Application Tags Open the Tags View Create External Tags Before You Begin •... -
Page 46: Follow These Steps
Chapter 5 Create Tags Follow These Steps Complete these steps to enter application tags. Review Application Tags page 46 Open the Tags View page 47 Create External Tags page 47 Review Application Tags The sample application uses read and write tags to define how objects interact with the addresses of a MicroLogix 1100 controller. -
Page 47: Open The Tags View
Create Tags Chapter 5 Open the Tags View 1. Click the Tags tab to open the tag editor. 2. Verify that the External tab is selected. Adds a tag Tag fields Shows more tag fields Create External Tags Each tag occupies a separate row in the Tags view. The fields in each row define the attributes of a tag. Tags are created with a default tag name, TAG0001, where the number increments with each new tag. - Page 48 Chapter 5 Create Tags 4. Click in the Address field and type B3:0/0. 5. Click in the Controller field and select PLC-1. This is the controller name defined on the Communication tab. 6. Optionally, enter the tag description. 7. Repeat steps 1 through 6 to add the other five tags.
-
Page 49: Create The Motor Status Screen
Chapter Create the Motor Status Screen Introduction In this chapter, you will create the Motor Status screen of the application. Topic Page Change the Screen Name Change the Grid Attributes Create the Start Motor Push Button Create the Stop Motor Push Button Create the Motor Speed Screen Button Create a Goto Config Button Create the Motor Control List Selector... -
Page 50: Follow These Steps
Chapter 6 Create the Motor Status Screen Follow These Steps Complete these steps to create the Motor Status screen. Change the Screen Name page 51 Change the Grid Attributes page 52 Create the Start Motor Push Button page 52 Create the Stop Motor Push Button page 54... -
Page 51: Change The Screen Name
Create the Motor Status Screen Chapter 6 Change the Screen Name New applications open with the first screen created. Each screen is created with a default name, Screen_NN, where NN is a number from 1 to 99. The first screen is named Screen_1. You can rename the screen using a maximum of 50 characters. -
Page 52: Change The Grid Attributes
Chapter 6 Create the Motor Status Screen Change the Grid Attributes For easier alignment and positioning of screen objects, you can adjust the grid settings of a screen. The settings will vary with each PanelView Component terminal size. 1. In the toolbar above the screen, scroll to the right. - Page 53 Create the Motor Status Screen Chapter 6 3. Resize the button by clicking a corner handle and dragging diagonally or move the button by dragging it on the screen. 4. Open the States editor. a. Double-click object; b. Or, right-click object and select Edit States;...
-
Page 54: Create The Stop Motor Push Button
Chapter 6 Create the Motor Status Screen 9. Resize object if needed. An asterisk * appears if the text exceeds the size of the object. 10. On the Appearance tab, set the Border Width to 6. 11. Assign tags to the Start Motor push button. - Page 55 Create the Motor Status Screen Chapter 6 4. Move the pasted button to the right of the original push button. 5. Double-click the object to open the States editor. 6. Edit state 1 (row 1). a. Replace the text with STOP MOTOR.
-
Page 56: Create The Motor Speed Screen Button
Chapter 6 Create the Motor Status Screen Create the Motor Speed Screen Button The Motor Speed (Goto Screen) button lets you open the Motor Speed screen when the button is pressed. You will create the button now, but will not link it to the Motor Speed screen until later, page 86. The Motor Speed screen must be created before you can assign it to the button. - Page 57 Create the Motor Status Screen Chapter 6 4. Resize the Goto Screen button if necessary to fit the text. 5. Verify the view of the Motor Speed (Goto Screen) button on the terminal. Publication 2711C-QS001F-EN-P - November 2010...
-
Page 58: Create A Goto Config Button
Chapter 6 Create the Motor Status Screen Create a Goto Config Button The Goto Config button lets you access the configuration mode screens of the terminal when the button is pressed at runtime. 1. Click the Advanced cursor on the object palette and scroll down until you see the Goto Config button. -
Page 59: Create The Motor Control List Selector
Create the Motor Status Screen Chapter 6 Create the Motor Control List Selector The motor control list selector lets you switch the motor between manual and automatic mode. 1. Open the Entry tab of the object palette. 2. Drag the List Selector object to the area above the Start Motor and Stop Motor push buttons. - Page 60 Chapter 6 Create the Motor Status Screen 4. Select row 3, hold down the Shift key, and select row 4. 5. Click the Delete button. 6. Edit state 1 (row 1). a. Replace the Item1 text with AUTOMATIC. b. Set the Font Size to 17. c.
- Page 61 Create the Motor Status Screen Chapter 6 10. On the Appearance tab of the Properties panel: a. Select White as the List Selection Text Color. b. Select Black as the List Selection Background Color. c. Change the Border Width to 6. d.
- Page 62 Chapter 6 Create the Motor Status Screen Create List Keys for the Motor Control List Selector Terminals with a touch screen, or without an attached keyboard, require the up and down list keys on the screen to move the cursor in the list, and the Enter key to make a selection. List keys 1.
- Page 63 Create the Motor Status Screen Chapter 6 6. Modify the key type of the pasted key objects. a. Select one of the pasted key objects. b. Open the Navigation tab of the Properties panel. c. Select Down as the Key Type.
-
Page 64: Create The Motor Status Indicators
Chapter 6 Create the Motor Status Screen 3. On the Appearance tab: a. Type SELECT MODE in the Text box. b. Set the Font Size to 16. c. Check the Font Underline checkbox. d. Set the Border Style to None. 4. - Page 65 Create the Motor Status Screen Chapter 6 3. Double-click the object to open the States editor. The indicator is created with four states. This example uses only two. 4. Delete rows 3 and 4. 5. Edit state 1 (row 1). a.
- Page 66 Chapter 6 Create the Motor Status Screen Create a Heading for the Mode Indicator 1. Open the Drawing Tools tab of the object palette. 2. Drag the Text tool above the Mode indicator. 3. On the Appearance tab: a. Type MODE in the Text box.
- Page 67 Create the Motor Status Screen Chapter 6 Create the Status Indicator 1. Select the Mode indicator you just created. 2. Click the Copy tool or press Ctrl+C. 3. Click the Paste tool or press Ctrl+V. 4. Move the pasted object to the right of the original indicator object.
- Page 68 Chapter 6 Create the Motor Status Screen 8. Click OK to close the editor. 9. On the Connections tab of the Properties panel, select Motor_Status_Ind as the Read Tag. 10. Resize and move object as needed. Publication 2711C-QS001F-EN-P - November 2010...
- Page 69 Create the Motor Status Screen Chapter 6 Create a Heading for the Status Indicator 1. Select the heading for the Mode Indicator. 2. Copy and paste the MODE heading. 3. Move the pasted heading to the right above the status indicator.
-
Page 70: Save The Motor Status Screen
Chapter 6 Create the Motor Status Screen Create a Heading for the Motor Status Indicators 1. Drag the Text tool above the border just created. 2. On the Appearance tab: a. Type MOTOR STATUS in the Text box. b. Set the Font Size to 16. c. -
Page 71: Introduction
Chapter Create the Motor Speed Screen Introduction In this chapter, you will create and design the Motor Speed screen in the application. Topic Page Create a New Screen Create the Motor Status Screen Button Create a Numeric Entry Object Create a Heading for the Numeric Entry Object Create a Increment Decrement Object Create Increment Decrement Keys Create a Bar Graph... -
Page 72: Create The Motor Speed Screen
Chapter 7 Create the Motor Speed Screen What You Need • Tags to assign to objects. These tags were defined in the Tags view. Follow These Steps Complete these steps to create the Motor Speed screen. Create a New Screen page 73 Create the Motor Status... -
Page 73: Create A New Screen
Create the Motor Speed Screen Chapter 7 Create a New Screen 1. Click the Add button in the Screen List to add a new screen. Screen 2 is added to the list with a default name. 2. On the Screen tab of the Properties panel, change the Horizontal and Vertical Grid Spacing from 10 to 5 and... -
Page 74: Create The Motor Status Screen Button
Chapter 7 Create the Motor Speed Screen Create the Motor Status Screen Button A copy and paste operation copies the Motor Speed (Goto Screen) button from the Motor Status screen to the Motor Speed screen. 1. Click on MOTOR STATUS in the Screen List to open the screen. -
Page 75: Create A Numeric Entry Object
Create the Motor Speed Screen Chapter 7 Create a Numeric Entry Object The numeric entry object lets you change the speed of the motor in manual mode by entering an integer value. The object does not display a value until runtime. 1. -
Page 76: Create A Heading For The Numeric Entry Object
Chapter 7 Create the Motor Speed Screen Create a Heading for the Numeric Entry Object This topic shows how to create a heading above the numeric entry object. 1. Open the Drawing Tools tab of the object palette. 2. Drag the Text object above the numeric entry object. -
Page 77: Create A Increment Decrement Object
Create the Motor Speed Screen Chapter 7 Create a Increment Decrement Object The numeric increment decrement object lets you increase or decrease the rpm speed of the motor in manual mode using small or large steps when a key is pressed. The object does not display a value until runtime. 1. -
Page 78: Create Increment Decrement Keys
Chapter 7 Create the Motor Speed Screen Create Increment Decrement Keys Keys are used to increase or decrease the motor speed displayed in the numeric increment decrement object. The double arrows increase or decrease the speed in 10 rpm increments. The single arrows increase or decrease the speed in 1 rpm increments. - Page 79 Create the Motor Speed Screen Chapter 7 8. Click on the Up key just created, then press Ctrl+C then Ctrl+V to copy and paste the key. 9. Move the pasted object to right of the second key. 10. On the Navigation tab, select Down as the Key Type.
-
Page 80: Create A Bar Graph
Chapter 7 Create the Motor Speed Screen Create a Bar Graph The bar graph monitors and displays the speed of the motor in a graphic form. 1. Open the Display tab of the object palette. 2. Drag the Bar Graph object to the right side of the screen. -
Page 81: Create A Bar Graph Scale
Create the Motor Speed Screen Chapter 7 Create a Bar Graph Scale 1. On the Display tab of the object palette, drag the Linear Scale object to the screen. 2. On the Appearance tab of the Properties panel select Left as the Tick Mark Direction. -
Page 82: Create Text Labels For The Scale
Chapter 7 Create the Motor Speed Screen Create Text Labels for the Scale 1. Open the Drawing Tools tab of the object palette. 2. Drag the Text tool next to the linear scale. 3. On the Appearance tab of the Properties panel: a. -
Page 83: Create A Bar Graph Heading
Create the Motor Speed Screen Chapter 7 Create a Bar Graph Heading 1. Drag another text object from the object palette above the bar graph. 2. On the Appearance tab: a. Type MOTOR SPEED in the Text box. b. Set the Font Size to 16. c. -
Page 84: Create A Numeric Display
Chapter 7 Create the Motor Speed Screen Create a Numeric Display The numeric display object appears next to the bar graph and displays the speed of the motor as a numeric value. 1. Open the Display tab of the object palette. 2. -
Page 85: Create A Heading For The Numeric Display
Create the Motor Speed Screen Chapter 7 Create a Heading for the Numeric Display 1. Open the Drawing Tools tab of the object palette. 2. Drag the Text tool above the numeric display object. 3. On the Appearance tab: a. Type RPM in the Text field. -
Page 86: Update The Motor Speed Screen Button
Chapter 7 Create the Motor Speed Screen Update the Motor Speed Screen Button You need to update the Motor Speed screen button on the Motor Status screen so that it displays the correct screen when the button is pressed. The Motor Speed screen did not exist when you first created the screen button so you must go back and update the object. -
Page 87: Introduction
Chapter Create Alarms Introduction In this chapter, you will create alarms that will be triggered when the motor speed is at its ideal operating speed or near its upper threshold. Topic Page Review Application Alarms Open the Alarms View Create Alarms Before You Begin •... -
Page 88: Follow These Steps
Chapter 8 Create Alarms Follow These Steps Complete these steps to create alarms for the sample application. Review Application Alarms page 88 Open the Alarms View page 89 Create Alarms page 89 Review Application Alarms The speed of the motor in the sample application ranges from 0 to 1000 rpm. The tag that controls the speed of the motor is MOTOR_SPEED. -
Page 89: Open The Alarms View
Create Alarms Chapter 8 Open the Alarms View 1. Click the Alarms tab to open the Alarms view. Adds an alarm. Alarm fields Switches the view between typical and advanced tag properties. Create Alarms Each alarm occupies a separate row in the Alarms view. The fields in each row define the properties of an alarm. - Page 90 Chapter 8 Create Alarms 4. Click in the Alarm Type field and select Numeric. Verify that the Edge Detection is Rising. 5. Type 850 as the Value. 6. Type MOTOR AT IDEAL OPERATING SPEED! in the Message field. You can also click the ... button in the Message field to type the text in the text dialog.
- Page 91 Create Alarms Chapter 8 8. Edit the alarm fields. c. Change the Value to 900. d. Type MOTOR SPEED NEAR THRESHOLD! in the Message field. 9. Click the Save icon to save the application. Publication 2711C-QS001F-EN-P - November 2010...
- Page 92 Chapter 8 Create Alarms Notes: Publication 2711C-QS001F-EN-P - November 2010...
-
Page 93: Introduction
Chapter Validate and Run Application Introduction In this chapter, you will validate the application for correct operation and run the application in the terminal while connected to the MicroLogix 1100 controller. Topic Page Validate the Application Connect Terminal to Controller Download Ladder Logic to Controller Run the Application Run the Motor in Manual Mode... -
Page 94: Follow These Steps
Chapter 9 Validate and Run Application Follow These Steps Complete these steps to run the sample application on the terminal while connected to the MicroLogix controller. Validate the Application page 97 Connect Terminal to Controller page 96 Download Ladder Logic to Controller page 96 Run the... -
Page 95: Validate The Application
Validate and Run Application Chapter 9 Validate the Application Before you can run an application on the PanelView Component, it is strongly recommended that you validate the application for errors and warnings. The application does not need to be error-free to run, however, it is good practice to fix both errors and warnings to ensure expected system behavior. -
Page 96: Connect Terminal To Controller
Chapter 9 Validate and Run Application Connect Terminal to Controller DF1 Connection to MicroLogix Controller using 1761-CBL-PM02 For DF1 runtime operation, you will need to connect the 1761-CBL-PM02 between the RS-232 serial port of the terminal and the Channel 0 port of the MicroLogix 1100 controller. To Ethernet DHCP-enabled Network DF1 Connection 1761-CBL-PM02 Cable... -
Page 97: Run The Application
Validate and Run Application Chapter 9 Run the Application This topic shows you how to run the sample application from the PanelView Explorer Startup window. 1. Verify the PanelView Explorer Startup window is open. 2. Select the SampleApplication just created. 3. -
Page 98: Run The Motor In Manual Mode
Chapter 9 Validate and Run Application Run the Motor in Manual Mode In manual mode, you have control of the motor. You can change the motor speed by using the numeric entry object or the numeric increment decrement object. The numeric entry object opens a keypad where you enter a new value. - Page 99 Validate and Run Application Chapter 9 3. Press the numeric entry object to enter a speed. A numeric keypad opens with the current speed highlighted. Numeric 4. Enter 550 by pressing the Entry number keys. 5. Press the Enter key to save the new speed and close the keypad.
- Page 100 Chapter 9 Validate and Run Application 7. Update the motor speed in steps using the numeric increment decrement object. a. Press the page up key twice to increase the speed by 20 rpm. b. Press the up key three times to increase the speed by 3 rpm.
-
Page 101: Run The Motor In Automatic Mode
Validate and Run Application Chapter 9 Run the Motor in Automatic Mode In Auto mode, the ladder logic in the MicroLogix controller controls the motor speed. The speed will never rise above 480. In Auto mode, you can start and stop the motor, and verify that the speed updates in the bar graph and numeric display. -
Page 102: Go To Configuration Mode
Chapter 9 Validate and Run Application Go to Configuration Mode You can access the configuration screens of the terminal while in Run mode. 1. Press the Motor Status button to return to the Motor Status screen. 2. Press the Config Screen button. -
Page 103: Introduction
Appendix Other Terminal Operations Introduction The PanelView Explorer Startup window provides links for transferring files and adjusting terminal settings while your computer is connected to the PanelView Component terminal. Transfer Files While connected to a terminal through your web browser, you can easily transfer files between terminal storage and your computer. - Page 104 Appendix A Other Terminal Operations Follow these steps to copy an application from internal storage of the terminal to your computer. For details on how to transfer other files, refer to the PanelView Explorer help or the PanelView Component Terminal user manual, publication 2711C-UM001.
- Page 105 Other Terminal Operations Appendix A 6. Select My Computer as the destination for the transfer and click Transfer. USB Storage or SD Storage will appear if either media is loaded in the terminal. 7. Click Save to save the file to your desktop.
-
Page 106: Terminal Settings
Appendix A Other Terminal Operations Terminal Settings The Terminal Settings link in the Startup window lets you access and update terminal settings from your web browser. Select from four tabs to view or modify information. For more information on these terminal settings, refer to the PanelView Explorer help or the PanelView Component Terminal user manual, publication 2711C-UM001. - Page 107 Other Terminal Operations Appendix A • view and change the time and date settings on the terminal, including setting your time zone and automatically adjusting for daylight saving time. From the Communication tab, you can change the IP address of the USB port or the Ethernet port of your terminal.
- Page 108 Appendix A Other Terminal Operations • change the length of time after which the terminal times out and prompts for a user name and password. Publication 2711C-QS001F-EN-P - November 2010...
