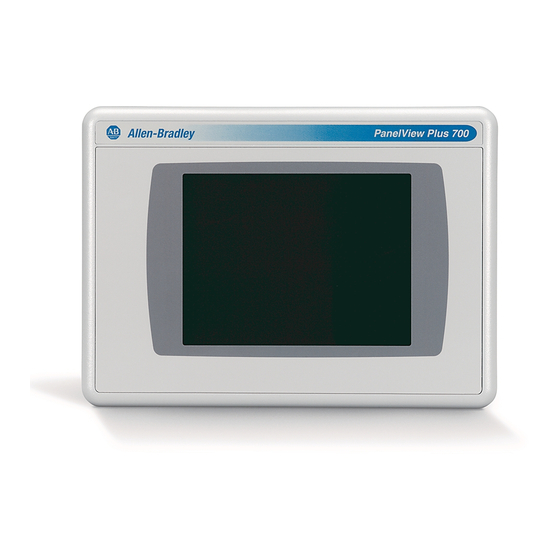

Rockwell Automation PanelView Plus Series User Manual
  1. Manuals
  2. Brands
  3. Rockwell Automation Manuals
  4. Touch terminals
  5. PanelView Plus Series
  6. User manual

Rockwell Automation PanelView Plus Series User Manual

Hide thumbs Also See for PanelView Plus Series:
Table of Contents

Advertisement

Quick Links

PanelView Plus Terminals
User Manual
Catalog Number 2711P
400, 600, 700, 1000, 1250, 1500
Terminals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PanelView Plus Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rockwell Automation PanelView Plus Series

Summary of Contents for Rockwell Automation PanelView Plus Series

  • Page 1 PanelView Plus Terminals User Manual Catalog Number 2711P 400, 600, 700, 1000, 1250, 1500 Terminals...
  • Page 2 No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.
  • Page 3 Summary of Changes The information below summarizes the changes to this manual since the last revision. Revision bars, as shown in the margin, identify updated information. This document includes the following changes. Topic Page Corrected touchscreen stylus tip radius 15, 16, 21, 22, 88 Added catalog numbers for marine-certified terminals and added 23, 25 OEM option to catalog number configuration diagram...
  • Page 4 Summary of Changes Publication 2711P-UM001I-EN-P - December 2008...

  • Page 5: Table Of Contents

    Table of Contents Preface Objectives........9 Intended Audience .
  • Page 6 Table of Contents Modify Display Settings ......81 Font Linking ........85 Configure Keypad, Keyboard, or Mouse.
  • Page 7 Table of Contents Ethernet Connections ......176 DH-485/DH+/Remote I/O Module ....178 ControlNet Module .
  • Page 8 Table of Contents Appendix B Compatible USB Devices ..........233 Appendix C Available Fonts for Terminal Download Fonts to Terminal .

  • Page 9: Objectives

    Preface Objectives This preface provides information on these topics. • Intended audience • Parts list • Additional resources • Software and firmware upgrades Intended Audience Use this manual if you are responsible for installing, operating, or troubleshooting the PanelView Plus or PanelView Plus CE terminals. No special knowledge is required to understand this manual or operate the terminal.

  • Page 10: Additional Resources

    • documentation for your controller. Software and Firmware To receive software updates (software serial number required) and firmware upgrades for your terminal: Upgrades • call your local Rockwell Automation sales office or distributor. • access http://support.rockwellautomation.com Publication 2711P-UM001I-EN-P - December 2008...

  • Page 11: Chapter 1 Chapter Objectives

    Chapter Overview Chapter Objectives This chapter gives an overview of the PanelView Plus terminals. • Software support • PanelView Plus 400 and 600 features • PanelView Plus 700 to 1500 features • Catalog number configuration • Product components Software Support FactoryTalk View ME runtime software is included with all PanelView Plus and PanelView Plus CE terminals.

  • Page 12: Panelview Plus 400 And 600 Terminals

    Chapter 1 Overview PanelView Plus 400 and 600 The PanelView Plus 400 and 600 terminals offer: Terminals • base-configured units. • communication modules. • power supply, AC or DC. • grayscale and color displays. The PanelView Plus 400 and 600 terminals are HMI devices that provide these features: •...
  • Page 13 Overview Chapter 1 Base-configured Units The base-configured unit of the 400 and 600 terminals is available in two versions. • Base unit with RS-232 port and one USB port • Base unit with RS-232 port, 10/100BaseT Ethernet port, one USB port, and a network interface for a communication module Base Unit with RS-232 Only Power Input, AC or DC...
  • Page 14 Chapter 1 Overview Communication Modules You can attach a communication module with a network interface to the base-configured unit of the PanelView Plus 400 and 600 terminals to increase your communication capability with these networks: • DH-485 • DH+ • Remote I/O (single rack) •...
  • Page 15 Overview Chapter 1 Display and Input Options PanelView Plus 400 and 600 terminals are available with these display and operator input options: • 400 terminals: 3.8 in. grayscale (320 x 240) graphics display with keypad or 3.5 in. (320 x 240) color with keypad or keypad and touch support •...
  • Page 16 Chapter 1 Overview Keypad or Keypad and Touch The keypad versions of the PanelView Plus 400 and 600 terminals are available with these options: • 400 terminals: grayscale display with keypad or color display with keypad or keypad and touch input •...

  • Page 17: Panelview Plus 700 To 1500 Terminals

    Overview Chapter 1 PanelView Plus 700 to 1500 This section gives an overview of the PanelView Plus 700, 1000, 1250, 1250H, and 1500 terminals. Terminals • Modular components • Base-configured unit • Communication modules • Logic module, standard or CE •...
  • Page 18 Chapter 1 Overview Modular Components The terminals use modular components allowing for flexible configuration, installation, and upgrades. You can order items as separate components or factory assembled per your configuration. Communication Module Logic Module Display Module Base-configured Unit The base-configured unit of the terminal consists of: •...
  • Page 19 Overview Chapter 1 Logic Modules and CompactFlash The logic module is available with or without internal CompactFlash. The contents of the internal CompactFlash is what differentiates a PanelView Plus device from a PanelView Plus CE device. • For the PanelView Plus terminals, the internal CompactFlash contains FactoryTalk View ME software and flash memory.
  • Page 20 Chapter 1 Overview Power Options The basic configured units of the 700 to 1500 PanelView Plus terminals provide application flexibility with three available power power options: • AC (85...264V) • unisolated DC (18...32V) • isolated DC (18...32V) For DC applications using AC power, a remote AC-to-DC power supply, cat.
  • Page 21 Overview Chapter 1 Touch Screen All touch-screen displays are analog resistive and similar except for size. Replaceable ID Label Touch Screen The touch screen may be operated with a finger, gloved finger, IMPORTANT or plastic stylus device with a minimum tip radius of 1.3 mm (0.051 in.) to prevent damage to the touch screen.
  • Page 22 Chapter 1 Overview Keypad or Keypad and Touch All displays are similar except for size and the number of function keys available. Allen-Bradley Label Numeric Keypad Backspace and Enter Keys Programmable Function Keys Tab and Shift Keys (optional custom legends) Esc, CT, Alt Keys Navigation Keys Programmable Function Keys...

  • Page 23: Catalog Number Configuration

    Overview Chapter 1 Catalog Number The table shows the catalog number configuration for configured versions of the PanelView Plus and PanelView Plus CE terminals. Not Configuration all combinations of options are available for sale. Input Display Display Type Power Logic Module with Communication Special Option Type...
  • Page 24 Chapter 1 Overview Display Modules (700 to 1500 only) Cat. No. Description 2711P-RDT12CK Conformal-coated 1250 touch color display 2711P-RDT12H 1250 high-bright touch color display 2711P-RDB12C 1250 keypad and touch color display 2711P-RDK15C 1500 keypad color display 2711P-RDT15C 1500 touch color display 2711P-RDT15AG 1500 touch color display with antiglare overlay 2711P-RDB15C...
  • Page 25 Overview Chapter 1 Logic Modules (700 to 1500 only) Cat. No. Description 2711P-RP7 CE logic module with 256 MB flash/256 MB RAM, DC input 2711P-RP7A CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified 2711P-RP7D CE logic module with 256 MB, isolated DC input, marine certified Communication Modules Terminal Type Cat.
  • Page 26 Chapter 1 Overview RAM Memory (700 to 1500 only) Cat. No. Description 2711P-RR64 64 MB SODIMM memory 2711P-RR128 128 MB SODIMM memory 2711P-RR256 256 MB SODIMM memory Compact Flash Cards (Blank) Cat. No. Description 2711P-RC2 128 MB blank CompactFlash card 2711P-RC3 256 MB blank CompactFlash card 2711P-RC4...
  • Page 27 Overview Chapter 1 Replacement Bezels Cat. No. Description 2711P-RBK12 Replacement bezel for 1250 keypad terminal 2711P-RBT12 Replacement bezel for 1250 touch terminal 2711P-RBT12H Replacement bezel for 1250 high-bright touch terminal 2711P-RBB12 Replacement bezel for 1250 keypad or keypad/touch terminal 2711P-RBK15 Replacement bezel for 1500 keypad terminal 2711P-RBT15 Replacement bezel for 1500 touch terminal...
  • Page 28 Chapter 1 Overview Adapter Plates Cat. No. Description 2711P-RAT10 Adapts a PanelView Plus 1000 touch terminal to a PanelView 1000/1000E touch cutout 2711P-RAK12E Adapts a PanelView Plus 1250 (or PV1000/1000E) keypad terminal to a PanelView 1200/1400E keypad cutout 2711P-RAT12E2 Adapts a PanelView Plus 1250 (or PV1000/1000E) touch terminal to a PanelView 1200E touch cutout 2711P-RAT12E Adapts a PanelView Plus 1250 (or PV1000/1000E) touch terminal to a...
  • Page 29 Overview Chapter 1 Miscellaneous Cat. No. Description 2711P-RVT12 Solar visor for outdoor high-bright 1250 touch screen display modules 2711P-RY2032 Replacement battery for 700 to 1500 terminals 2711P-RTMC Replacement mounting clips for 700 to 1500 terminals, quantity of 8 2711P-RTFC Replacement mounting levers for 400 and 600 terminals, quantity of 8 2711P-RVAC Replacement AC power terminal block for 400 and 600 terminals 2711-TBDC...
  • Page 30 Chapter 1 Overview Publication 2711P-UM001I-EN-P - December 2008...

  • Page 31: Chapter 2 Chapter Objectives

    Chapter Installation Chapter Objectives This chapter provides pre-installation information and procedures on how to install the terminals. • Hazardous locations • Environment and enclosure • Outdoor installation for 1250 high-bright display module • Required tools • Clearances • Panel cutout dimensions •...
  • Page 32 Chapter 2 Installation The terminals have a temperature code of T4 when operating in a 55 °C (131 °F) maximum ambient temperature. Do not install the terminals in environments where atmospheric gases have ignition temperatures less than 135 °C (275 °F). USB Ports The terminals contain universal serial bus (USB) ports that comply with hazardous location environments.
  • Page 33 Installation Chapter 2 Application Information Per the National Electrical Code the circuit parameters of nonincendive field wiring apparatus for use in hazardous locations shall be coordinated with the associated nonincendive field wiring apparatus such that their combination remains nonincendive. The PanelView Plus terminal and the USB peripheral device shall be treated in this manner.

  • Page 34: Environment And Enclosure

    Chapter 2 Installation Environment and Enclosure This equipment is intended for use in a Pollution Degree 2 ATTENTION industrial environment, in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 m (6561 ft) without derating. The terminals are intended for use with programmable logic controllers.
  • Page 35 The paint color, size, and power dissipated by the internal components of an enclosure affect the temperature rise inside the cabinet. Hoffman, a Rockwell Automation Encompass Partner, has information to assist you with enclosure selection and heating/cooling accessories to meet the temperature requirements of the installed equipment.

  • Page 36: Required Tools

    Chapter 2 Installation Required Tools These tools are required for panel installation: • Panel cutout tools • Small, slotted screwdriver • Torque wrench (lb•in) for tightening the mounting clips on the PanelView Plus 700 to 1500 and PanelView Plus CE terminals Clearances Allow adequate clearance around the terminal, inside the enclosure, for adequate ventilation.

  • Page 37: Mount The 400 Or 600 Terminal In A Panel

    Installation Chapter 2 Mount the 400 or 600 Mounting levers secure the terminal to the panel. The number of levers you use (4 or 6) varies by terminal type. Terminal in a Panel Disconnect all electrical power from the panel before making ATTENTION the panel cutout.
  • Page 38 Chapter 2 Installation 6. Insert all mounting levers into the mounting slots on the terminal. Slide each lever until the flat side of the lever touches the surface of the panel. Mounting Levers Mounting Slots Flat Side of Lever 7. When all levers are in place, slide each lever an additional notch or two until you hear a click.

  • Page 39: Mount The 700 To 1500 Terminal In A Panel

    Installation Chapter 2 Mount the 700 to 1500 Mounting clips secure the terminal to the panel. The number of clips you use (4, 6, or 8) varies by terminal type. Terminal in a Panel Disconnect all electrical power from the panel before making ATTENTION the panel cutout.
  • Page 40 Chapter 2 Installation 5. Slide the ends of the mounting clips into the slots on the terminal. Mounting Clip Mounting Clip Slot 6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting surface uniformly. 7. Tighten the mounting clips screws to a torque of 0.90…1.1 Nm (8…10 lb•in) by using the specified sequence, making sure not to overtighten.

  • Page 41: Product Dimensions

    Installation Chapter 2 Product Dimensions Product dimensions for each terminal are in mm (in.). PanelView Plus 400 Dimensions 400 Keypad or Keypad/Touch Terminal (6.0) 185 (7.28) (2.35) (3.54) 71 (2.81) 154 (6.08) Publication 2711P-UM001I-EN-P - December 2008...
  • Page 42 Chapter 2 Installation PanelView Plus 600 Dimensions 600 Keypad or Keypad/Touch Terminal 268 (10.47) 154 (6.08) 600 Touch Terminal 154 (6.08) The depth dimensions are shown for: • base-configured unit (display module and logic module). • base-configured unit with communication module. Publication 2711P-UM001I-EN-P - December 2008...
  • Page 43 Installation Chapter 2 PanelView Plus and PanelView Plus CE 700 Dimensions 700 Keypad or Keypad/Touch Terminal a 55 (2.18) Display to Logic Module (7.58) (11.40) 700 Touch Screen Terminal a 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module (7.04) (9.68) The depth dimensions are shown for:...
  • Page 44 Chapter 2 Installation PanelView Plus and PanelView Plus CE 1000 Dimensions 1000 Keypad or Keypad/Touch Terminal a 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module (9.77) (15.72) 1000 Touch Screen Terminal a 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module (9.7) The depth dimensions are shown for:...
  • Page 45 Installation Chapter 2 PanelView Plus and PanelView Plus CE 1250 Dimensions 1250 Keypad or Keypad/Touch Terminal a 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module (11.12) (16.36) 1250 Touch Screen Terminal a 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module 1250 (11.12)
  • Page 46 Chapter 2 Installation PanelView Plus and PanelView Plus CE 1500 Dimensions 1500 Keypad or Keypad/Touch Terminal a 65 (2.55) Display to Logic Module (12.97) b 93 (3.65) Display to Communication Module (18.46) 1500 Touch Screen Terminal a 65 (2.55) Display to Logic Module b 93 (3.65) Display to Communication Module (12.97) (16.37)

  • Page 47: Chapter 3 Chapter Objectives

    Chapter Power Connections Chapter Objectives This chapter covers wiring and safety guidelines, and provides procedures to: • remove and install the power terminal block. • connect DC power. • connect AC power. • reset the terminal. Wiring and Safety Use publication NFPA 70E Electrical Safety Requirements for Employee Workplaces, IEC 60364 Electrical Installations in Buildings, Guidelines or other applicable wiring safety requirements for the country of...

  • Page 48: Remove And Install The Power Terminal Block

    Chapter 3 Power Connections Remove and Install the The terminals are shipped with the power terminal block installed. You can remove the terminal block for ease of installation, wiring, and Power Terminal Block maintenance. Explosion Hazard WARNING Substitution of components may impair suitability for hazardous locations.
  • Page 49 Power Connections Chapter 3 2. Gently pry the terminal block away from terminal to release the locking mechanism. Follow these steps to replace the terminal block. 1. Press terminal block base in first with block leaning outward. 2. Gently push the top of the terminal block back to the vertical position to snap in locking tab.
  • Page 50 Chapter 3 Power Connections Follow these steps to remove the terminal block. 1. Loosen the two screws that secure the terminal block. 2. Gently pull the terminal block away from the connector. 2-position DC Terminal 3-position AC or DC Block (Series E or later) Terminal Block Follow these steps to install the terminal block.

  • Page 51: Dc Power Connections

    Power Connections Chapter 3 DC Power Connections PanelView Plus terminals with an integrated, 24V DC power supply have these power ratings Power Type Terminal Input Range 400 and 600 24V DC nom (18…30 V DC) 25 W max (1.0 A at 24V DC) 700 to 1500 24V DC nom (18…32 V DC) 70 W max (2.9 A at 24V DC)
  • Page 52 Chapter 3 Power Connections External Power Supply For Non-insolated DC Terminals To identify non-isolated DC logic modules refer to the Logic Modules (700 to 1500 only) table on page All 400 and 600 DC terminals contain non-isolated DC power supplies. Use a single, 24V DC power supply to power each PanelView Plus device, such as cat.
  • Page 53 Power Connections Chapter 3 External Power for 700 to 1500 Isolated DC Terminals (2711P-RxxDx Logic Modules) Use an SELV or PELV 24V DC power supply, such as cat. no. 2711P-RSACDIN, to power the isolated DC PanelView Plus terminal. The isolated DC terminals may be powered by the same power source as other equipment, by a DC power bus.
  • Page 54 Chapter 3 Power Connections On most PanelView Plus DC terminals, the earth/ground terminal is internally connected to the DC- terminal within the product. Damage or malfunction can occur when a voltage potential ATTENTION exists between two separate ground points. Make sure the terminal does not serve as a conductive path between ground points at different potentials.
  • Page 55 Power Connections Chapter 3 Connect DC Power Explosion Hazard - Do not disconnect equipment unless power WARNING has been switched off and area is known to be nonhazardous. Disconnect all power before installing or replacing components. Failure to disconnect power may result in electrical shock or damage to the terminal.

  • Page 56: Ac Power Connections

    Chapter 3 Power Connections AC Power Connections PanelView Plus devices with an integrated AC power supply have these power ratings. Terminal Voltage Range Frequency 400 and 600 85…264V AC 47…63 Hz 60V A max 700 to 1500 85…264V AC 47…63 Hz 160V A max The input power terminal block supports these wire sizes.
  • Page 57 Power Connections Chapter 3 Functional Earth Connection The PanelView Plus 700 to 1500 devices with an AC power input also have a functional earth connection on the back of the display. On 700 to 1500 devices, you must connect both protective earth IMPORTANT and functional earth to ground.
  • Page 58 Chapter 3 Power Connections Connect AC Power Explosion Hazard - Do not disconnect equipment unless power WARNING has been switched off and area is known to be nonhazardous. Disconnect all power before installing or replacing components. Failure to disconnect power may result in electrical shock or damage to the terminal.

  • Page 59: Reset The Terminals

    Power Connections Chapter 3 Reset the Terminals Use the reset switch to restart a terminal without having to disconnect and reapply power. After a reset, the terminal performs a series of startup tests and then either: • runs the .MER application loaded in the terminal. •...
  • Page 60 Chapter 3 Power Connections Publication 2711P-UM001I-EN-P - December 2008...

  • Page 61: Chapter 4 Chapter Objectives

    Chapter Configuration Mode Chapter Objectives This chapter shows how to use the Configuration mode of your PanelView Plus terminal to: • perform data entry and navigation. • load an application. • run an application. • modify application settings. • modify terminal settings. •...
  • Page 62 Chapter 4 Configuration Mode Configuration Mode Main Screen Name of application that is currently loaded. Only appears if application is loaded. Terminal Operation Description Load Application (F1) Opens another screen where you can select an application to load. Once loaded, the application name will appear under Current Application.
  • Page 63 Configuration Mode Chapter 4 Navigation Buttons Screen buttons are used for data entry and navigation. • On touch-screen terminals, tap the button with your finger or stylus. • On keypad terminals, select the function key listed on the button, or in some cases, the corresponding key on the keypad. •...
  • Page 64 Chapter 4 Configuration Mode Enter or Edit Data Many screens have buttons that access fields where you must enter or edit data. When you press the button or function key, the input panel opens ready for you to enter data. If a field is restricted to a numeric value, only the 0…9 keys will be enabled.

  • Page 65: Load An Application

    Configuration Mode Chapter 4 Load an Application You can load a FactoryTalk View ME .MER application from the internal CompactFlash in the terminal or an external CompactFlash card. List of .MER applications stored in the CompactFlash of Moves the terminal. highlight up Moves highlight down...

  • Page 66: Run An Application

    Chapter 4 Configuration Mode Run an Application After loading an .MER application, you can run the application. To load an application, select the Run Application button on the main screen. Log files are generated by the application. To delete the log files before running an application, select the Delete Log Files Before Running button on the main screen.

  • Page 67: Configure Communications

    Configuration Mode Chapter 4 Follow these steps to access terminal settings and select a function. 1. Select Terminal Settings from the main screen. Diagnostics Setup Display File Management Moves highlight up. Font Linking Input Devices Networks and Communications Print Setup Startup Options System Event Log Moves highlight...
  • Page 68 Chapter 4 Configuration Mode Configure Communication Properties Follow these steps to configure driver settings for the communication protocol used by your application. 1. Select Terminal Settings>Networks and Communications>RSLinx Enterprise Communications. You see a tree view of installed communication cards and network configurations.
  • Page 69 Configuration Mode Chapter 4 DHPlus Properties Field Description Valid Values Jumper ID Identifies the communication card if multiple 0…3 cards are installed on terminal. Station Number The unique address of the terminal on the 0…77 (octal) DHPlus network. Baud Rate The communication rate of the DHPlus 57,600 (default) network.
  • Page 70 Chapter 4 Configuration Mode Serial Properties Field Description Valid Values Device The serial device your terminal is connected PLC_CH0 SLC_CH0 KFC15 AC_CH0 Error Check Type of error checking used. Error checking is BCC, CRC automatically configured if Use Auto Config is set to Yes.
  • Page 71 Configuration Mode Chapter 4 Configure the Controller Address Follow these steps to edit the device address of the logic controller. 1. From the RSLinx Configuration screen, select a device node. 2. Press the Edit Device button to view the device name and current address of the logic controller.

  • Page 72: Configure Network Information

    Chapter 4 Configuration Mode Configure Network You can configure network information for your terminal. • Device name to identify terminal on network Information • IP address of terminal on network • Username and password to access network resources Define a Device Name for the Terminal You can configure a device name and description to identify your your terminal on the network.
  • Page 73 Configuration Mode Chapter 4 Define an Ethernet IP Address Some networks automatically assign IP addresses to Ethernet devices if DHCP is enabled. If DHCP is not enabled, you can manually enter an IP address for the terminal. Follow these steps to view or enter an IP address for your terminal. 1.
  • Page 74 Chapter 4 Configuration Mode Field Description Valid Values Use DHCP Enables or disables Dynamic Host Yes (default) Configuration Protocol (DHCP) settings. DHCP automatically allocates network devices and configurations to newly attached devices on the network. If DHCP is set to Yes, the terminal is automatically assigned an IP address, Subnet Mask, and Gateway.
  • Page 75 Configuration Mode Chapter 4 Define Name Server Addresses You can define name server addresses for the EtherNet/IP network adapter. These addresses are automatically assigned if DHCP is enabled for the network adapter. Follow these steps to define name server address. 1.

  • Page 76: Configure Diagnostics

    Chapter 4 Configuration Mode Authorize Terminal to Access Network Resources The terminal can access network resources with proper identification. A user name, password, and domain must be provided by your network administrator. 1. Select Terminal Settings>Network and Communications>Network Connections>Network Identification. 2.
  • Page 77 Configuration Mode Chapter 4 Remote Log Destination The Remote Log Destination forwards messages that it receives to a Windows 2000/XP computer running diagnostics. The location is determined by the IP address and port number. Field Description Valid Values Address Address of the remote Windows xxx.xxx.xxx.xxx 2000/XP computer.

  • Page 78: Manage Files On The Terminal

    Chapter 4 Configuration Mode Manage Files on the The terminal provides operations for managing files that are stored on the terminal. Terminal • Delete application .MER files, font files, or log files that reside in a storage location on the terminal. •...
  • Page 79 Configuration Mode Chapter 4 Delete Log Files from Terminal You can delete log files, alarm history files, and alarm status files from the System Default location on the terminal. 1. Select Terminal Settings>File Management>Delete Files>Delete Log Files. You are asked to confirm the deletion of the files. Do you want to delete all of the FactoryTalk View ME Station Log Files? 2.
  • Page 80 Chapter 4 Configuration Mode 3. Select a file from the storage location. 4. Press the Destination button on the same screen. 5. Press the Destination button to choose the storage location where you want to copy the application or font file. The destination must be different than the source location.

  • Page 81: Modify Display Settings

    Configuration Mode Chapter 4 Modify Display Settings You can access and modify these display settings for your terminal: • View display temperature • Adjust display contrast • Adjust display intensity • Configure the screen saver • Enable or disable the screen cursor View the Display Temperature To view the current temperature of the display, select Terminal Settings>Display>Display Temperature.
  • Page 82 Chapter 4 Configuration Mode Adjust the Display Contrast You can view or modify the display contrast for PanelView 400 and 600 grayscale terminals. Displays are shipped with the contrast level set at 50%, which is the optimum setting. 1. Select Terminal Settings>Display>Display Contrast. 2.
  • Page 83 Configuration Mode Chapter 4 Configure the Screen Saver The terminal screen saver activates after an idle period using a specific intensity. You can adjust the idle timeout and intensity, disable the screen saver, and enable or disable the screen saver bitmap. 1.
  • Page 84 Chapter 4 Configuration Mode Enable or Disable the Screen Cursor The terminal has a screen cursor that you can enable or disable. 1. Select Terminal Settings>Display>Cursor. 2. Press the Enable Cursor button to enable or disable the cursor. 3. Press OK to exit and return to Terminal Settings. Publication 2711P-UM001I-EN-P - December 2008...

  • Page 85: Font Linking

    Configuration Mode Chapter 4 Font Linking Font linking lets you run a translated application on the terminal by linking a font file to the base font (for example, linking a Chinese font Terminal Settings file to the base font Arial). For more details on preinstalled terminal fonts and additional fonts Font Linking available for downloading, see Appendix C.

  • Page 86: Configure Keypad, Keyboard, Or Mouse

    Chapter 4 Configuration Mode Configure Keypad, You can configure input devices used with your terminal, including the keyboard, keypad, mouse, and attached keyboard. Keyboard, or Mouse Configure Keyboard Settings You can adjust settings for the keys on the terminal keypad or for keys on an attached keyboard.
  • Page 87 Configuration Mode Chapter 4 Configure Keypad Settings for the Terminal You can restrict multiple or simultaneous key presses on the keypad of your terminal. 1. Select Terminal Settings>Input Devices>Keypad. 2. Press the Single Key Mode button to select a key option. •...

  • Page 88: Configure The Touch Screen

    Chapter 4 Configuration Mode Configure the Touch Screen You can configure these operations for terminals with a touch screen: • Calibrate the touch screen • Enable or disable Cursor • Set the double-tap sensitivity Calibrate the Touch-screen Use a plastic stylus device with a minimum tip radius of 1.3 mm IMPORTANT (0.051 in.) to prevent damage to the touch screen.
  • Page 89 Configuration Mode Chapter 4 Enable or Disable the Cursor on Touch Screens You can enable or disable the cursor on terminals with a touch screen. Disabling the cursor will not disable the mouse. 1. Select Terminal Settings>Input Devices>Touch Screen>Cursor. 2. Press the Enable Cursor button to enable or disable the cursor. 3.
  • Page 90 Chapter 4 Configuration Mode Set the Double-tap Sensitivity You can set and test the sensitivity for both the speed and physical distance between touch-screen presses. The process is identical to setting the double-tap sensitivity for the mouse. 1. Select Terminal Settings>Input Devices>Touch Screen>Double-tap Sensitivity.

  • Page 91: Configure Print Options

    Configuration Mode Chapter 4 Configure Print Options You can configure settings for printing displays, alarm messages, or diagnostic messages from FactoryTalk View ME .MER applications. The general setup for printing displays and messages is the same, however, the advanced settings are different. 1.
  • Page 92 Chapter 4 Configuration Mode • The advanced settings for printing diagnostic and alarm messages determines when to print messages that are sent to the network or USB port. Print Messages After Default Value Example Specified number of messages 60 messages When the queue has 60 messages, the messages are printed regardless of how long they have been in the queue.

  • Page 93: Configure Startup Options

    Configuration Mode Chapter 4 Configure Startup Options FactoryTalk View ME Station software starts based on shortcuts in the Windows startup folder and whether an application is loaded. You can modify the action the terminal takes on startup. • Disable FactoryTalk View ME Station software •...
  • Page 94 Chapter 4 Configuration Mode Enter Configuration Mode on Startup Follow these steps to enter Configuration mode on startup. 1. Select Terminal Settings>Startup Options>FactoryTalk View ME Station Startup. 2. Press the On Startup button to select Go to Configuration Mode. 3. Press the Configuration Mode Options button. 4.
  • Page 95 Configuration Mode Chapter 4 Run the Loaded Application on Startup Follow these steps to run the loaded application on startup. 1. Select Terminal Settings>Startup Options>FactoryTalk View ME Station Startup. 2. Press the On Startup button to select Run Current Application. If an application is not loaded, the options are disabled.
  • Page 96 Chapter 4 Configuration Mode Startup Shortcuts for PanelView Plus CE Devices On PanelView Plus CE devices, FactoryTalk View ME Station software starts based on shortcuts in the Windows startup folder and whether an application is loaded. FactoryTalk View ME Station software can start: •...
  • Page 97 Configuration Mode Chapter 4 Start FactoryTalk View ME Station Software and Load .MER Application To start FactoryTalk View ME Station software and automatically load an .MER application, type the appropriate shortcut path in the Run dialog on the Windows Start menu. Path to MERuntime.exe, followed by a space, followed by the path to the .MER If the path to FactoryTalk View ME runtime or the path to the...
  • Page 98 Chapter 4 Configuration Mode Other Shortcut Paths for FactoryTalk View ME Station Software If the path to FactoryTalk View ME software or the path to the IMPORTANT application contains spaces, you must enclose the path in double quotes. • To run the .MER application and delete its log files without replacing the terminal’s communication configuration with that of the applications, use the following path: Path to MERuntime.exe, followed by a space, followed by the...

  • Page 99: Configure Startup Tests

    Configuration Mode Chapter 4 Configure Startup Tests The terminal can run extended tests on startup. You can select which test to run and also specify test settings on startup. Select Tests to Run on Startup Follows these steps to select which tests you want to run on startup. 1.
  • Page 100 Chapter 4 Configuration Mode Configure Startup Test Settings Follow these steps to specify how many times to run the selected tests on startup and to enable extended diagnostics. Enabling extended diagnostics and setting a high repeat count IMPORTANT will increase the time it takes the terminal to reboot. The tests will run each time you reset or cycle power to the terminal until you disable extended diagnostics.

  • Page 101: View And Clear The System Event Log

    Configuration Mode Chapter 4 View and Clear the System The System Event Log screen displays a list of system events logged by the terminal. Event Log 1. Select Terminal Settings>System Event Log. 2. Select an event and then press the More Details button to display system event log details for that event.

  • Page 102: Display Terminal Information

    Chapter 4 Configuration Mode Display Terminal You can view these details for your terminal: • Total power on time Information • Processor temperature • Battery voltage and battery state • Amount of memory on terminal Follow these steps to display terminal information. 1.
  • Page 103 Configuration Mode Chapter 4 2. Press the Memory Allocation button to view or adjust the: • amount of allocated storage or program memory. • amount of storage or program memory in use. 3. Press the Up or Down button to increase or decrease the allocation of storage or program memory.

  • Page 104: Display Factorytalk View Me Station Information

    Chapter 4 Configuration Mode Display FactoryTalk View You can display the firmware number of FactoryTalk View ME Station software and the Rockwell Automation technical support number. ME Station Information 1. Select Terminal Settings>System>Information>About FactoryTalk View ME Station. x.xx.xx.x 2. Press the Technical Support button, if desired.

  • Page 105: Modify The Date, Time, Or Time Zone

    Configuration Mode Chapter 4 Modify the Date, Time, or You can adjust the date and time for terminal operations, or change the time zone. Time Zone Change the Date 1. Select Terminal Settings>Time/Date/Regional Settings>Date. The current date appears in the Year, Month, and Day fields. 2.
  • Page 106 Chapter 4 Configuration Mode Change the Time 1. Select Terminal Settings>Time/Date/Regional Settings>Time. The current time appears in 24-hour format in separate Hour, Minute, and Second fields. 2. Press the Hour, Minute, and Seconds buttons to change the values. Field Description Valid Values Hour The current hour in 24-hour format.
  • Page 107 Configuration Mode Chapter 4 Change the Time Zone You can view or modify the current time zone that is installed on the terminal. Time zones are installed as a part of the operating system. Changing the time zone adjusts the current time and date to match the new time zone.

  • Page 108: Modify Regional Settings

    Chapter 4 Configuration Mode 4. Press the Use Daylight Savings Button to select Yes or No. 5. Click OK when done. 6. Click OK to return to Terminal Settings. Modify Regional Settings You can adjust regional settings for a specific language installed on the terminal, including the date, time and numeric formats.
  • Page 109 Configuration Mode Chapter 4 3. Press OK. The selected language will appear at the bottom of the Regional Settings screen. Change the Decimal Separator for Numeric Formats You can change the decimal separator used in numerics for the current language. The default decimal separator is a period. 1.
  • Page 110 Chapter 4 Configuration Mode Change the Time Format You can change the time format for the selected language. 1. Select Terminal Settings>Time/Date/Regional Settings>Regional Settings>Time Format. The current time is shown using the currently selected format. 2. Press the appropriate buttons to adjust the formats. Field Description Example...
  • Page 111 Configuration Mode Chapter 4 Change the Short Date Format You can change the short date format for the selected language. 1. Select Terminal Settings>Time/Date/Regional Settings>Regional Settings>Short Date Format. The current date is shown in the selected, short date format. Field Short Date Formats Example Format...
  • Page 112 Chapter 4 Configuration Mode Change the Long Date Format You can change the long date format used by the selected language. 1. Select Terminal Settings>Time/Date/Regional Settings>Regional Settings>Long Date Format. The current date is shown in the selected long date format. 2.

  • Page 113: Chapter Objectives

    Chapter Windows CE .NET Operating System Chapter Objectives This chapter applies only to PanelView Plus CE terminals and provides information on these topics: • Windows CE .NET architecture • Windows CE .NET programs for PanelView Plus CE terminals • Using Windows CE .NET operating system •...

  • Page 114: Windows Ce .Net Programs

    Chapter 5 Windows CE .NET Operating System Compile Windows CE .NET Applications While the Windows CE .NET operating system brings a higher level of standardization to embedded computing devices, third-party software applications must still be compiled and tested to run on each Windows CE .NET device.

  • Page 115: Windows Ce .Net Operating System

    Windows CE .NET Operating System Chapter 5 Other Windows CE .NET programs are available. Most of these programs have been written for PPC devices, and some may run on the PanelView Plus CE terminals For more information on Windows CE .NET programs, see the Knowledgebase at http://support.automation.rockwell.com.
  • Page 116 Chapter 5 Windows CE .NET Operating System You may find it convenient to use the following shortcuts. These shortcuts work with the PanelView Plus CE terminal keypad, an attached keyboard, or the input panel. Keyboard Shortcuts Shortcut Description Ctrl+Esc Opens the Windows CE .NET Start menu. Use arrow keys to select a program and Enter to run.
  • Page 117 Windows CE .NET Operating System Chapter 5 Start Menu and Taskbar Use the Start menu to run programs, configure settings, and open recently-used documents. A single-click on the Start menu button on the bottom left of the screen brings up the menu. Subsequent clicks select the program or item you want to open.
  • Page 118 Chapter 5 Windows CE .NET Operating System Find Files Select Start>Programs>Windows Explorer to locate files on the PanelView Plus CE terminal You can alternately double-click the My Computer icon on the Desktop to open the Windows Explorer program. The Windows Explorer web browser lets you browse and manipulate the PanelView Plus CE files and folders.

  • Page 119: Panelview Plus Ce Memory

    Windows CE .NET Operating System Chapter 5 PanelView Plus CE Memory The PanelView Plus CE has the following memory areas: • Boot ROM • Internal CompactFlash • Dynamic RAM • External CompactFlash cards • USB mass storage devices Boot ROM The boot ROM is used to start up the PanelView Plus CE terminal, perform power on self tests, and load the Windows CE .NET operating system into dynamic RAM.
  • Page 120 Chapter 5 Windows CE .NET Operating System Dynamic RAM The RAM memory is split into two segments: Storage and Program memory. The System application in the Control Panel has a slider control that determines the allocation mix between Storage and Program memory.

  • Page 121: Control Panel Applications

    Windows CE .NET Operating System Chapter 5 Control Panel Applications The PanelView Plus CE terminal has user-configurable settings that are accessed from the Windows CE .NET Control Panel applications. These applications are similar to other Microsoft Windows operating systems. Select Start>Settings>Control Panel to open the Control Panel window.
  • Page 122 Chapter 5 Windows CE .NET Operating System Application Description See page Power Provides information on the battery condition of the terminal and other power management features. Regional Settings Sets the clock, date and language, and configures formats for numbers, currency, time, date, and regional settings. Remove Programs Removes programs installed on your terminal.
  • Page 123 Windows CE .NET Operating System Chapter 5 Identification and Notes The Identification tab defines optional user information for your PanelView Plus CE terminal. Use the Notes tab if it is necessary to document additional information. Password The Password dialog lets you define a password to protect your terminal against unauthorized use.
  • Page 124 Chapter 5 Windows CE .NET Operating System Network and Dial-up Connections The Network and Dial-up Connections application lets you configure: • ActiveSync connection between your PanelView Plus CE terminal and another computer. • Ethernet network connection. ActiveSync Connection For details on establishing an ActiveSync connection between your PanelView Plus CE terminal and a computer, see chapter 8.
  • Page 125 Windows CE .NET Operating System Chapter 5 4. Click OK in the title bar. A dialog will prompt you to either remove and reinstall your card or restart the device for the new settings to take effect. Click OK in the notification dialog. 5.
  • Page 126 Chapter 5 Windows CE .NET Operating System Touch The Touch Properties dialog lets you perform the following operations for PanelView Plus CE touch screen terminals: • Set double-tap sensitivity • Calibrate the touch screen When done performing operations, remember to click OK in the title bar to activate settings.
  • Page 127 Windows CE .NET Operating System Chapter 5 Keyboard The Keyboard dialog configures key settings for a keyboard that is attached to the USB port of the PanelView Plus CE terminal. You can adjust the: • rate for repeating a key press. •...
  • Page 128 Chapter 5 Windows CE .NET Operating System Keypad Use the Keypad dialog to: • configure key settings for keys on the PanelView Plus CE terminal. • adjust the rate for repeating a key press and the delay from the first key press to when repeating begins •...
  • Page 129 Windows CE .NET Operating System Chapter 5 Multi-Key Lockout Under Multi-Key Lockout, select one of the following options: • Enabled - any programmable key that is pressed inhibits all keys until the programmable key is pressed again. This includes the Alt, Ctrl, and Shift keys.
  • Page 130 Chapter 5 Windows CE .NET Operating System Display The Display dialog set the following display properties for the PanelView Plus CE terminal. • Background • Appearance • Backlight • Screen saver • Cursor When done performing operations, remember to click OK in the title bar to activate settings.
  • Page 131 Windows CE .NET Operating System Chapter 5 Backlight The Backlight tab adjusts the brightness of the terminal’s backlight. To adjust the brightness of the terminal’s backlight, move the slider to the left or right. To use the adjusted brightness when the terminal starts up, select the Use Brightness during startup checkbox.
  • Page 132 Chapter 5 Windows CE .NET Operating System Extended Diagnostics From the Extended Diagnostics dialog, you can: • enable/disable extended diagnostics to run on the PanelView Plus CE terminal at each reset or power cycle. • select specific tests to run. •...
  • Page 133 Windows CE .NET Operating System Chapter 5 Tests The Tests and More Tests tabs show a list of tests that can be performed on the PanelView Plus CE terminal at startup and the on/off status of each test. The terminal will run only the test with checked boxes.
  • Page 134 Chapter 5 Windows CE .NET Operating System Hardware Monitor Use the Hardware Monitor dialog to: • view the current battery voltage state and temperature of the display and processor. • view and clear all recorded events. When done performing operations, remember to click OK in the title bar to activate settings.
  • Page 135 Windows CE .NET Operating System Chapter 5 System The System dialog provides system, device, and copyright information for the PanelView Plus CE terminals. It also provides memory allocations for storage and programs. If you make memory adjustments, remember to click OK to activate settings. General The General tab displays system operating and computer information.
  • Page 136 A through Z, 0 …9 or - (hyphen). The device description is optional but useful if you want to further describe a specific terminal. PanelView Plus CE Rockwell Automation 2711P CE Copyrights The Copyright tab provides copyright information for your PanelView Plus CE terminal.
  • Page 137 Windows CE .NET Operating System Chapter 5 Date/Time The Date/Time dialog sets the current date and time for the selected time zone. Changing the time zone will adjust the date and time accordingly. Check the checkbox if Daylight Savings is in effect for the current time zone.
  • Page 138 Chapter 5 Windows CE .NET Operating System Time The Time tab configures the time format for the selected language. A sample of the current time format is shown. This sample changes as you make adjustments. You can adjust the time format, the separator between the time fields, and the AM/PM symbol.
  • Page 139 Windows CE .NET Operating System Chapter 5 Internet Options The Internet Setting dialog provides tabs to configure parameters for accessing and using the Internet on your PanelView Plus CE device. Certificates The Certificates dialog manages digital certificates used by some applications for establishing trust and secure communications.
  • Page 140 Chapter 5 Windows CE .NET Operating System Remove Programs Use the Remove Programs dialog to remove installed programs from your terminal. The dialog shows a list of programs that can be removed. Select a program from the list, click Remove, and then OK. Storage Manager Use the Storage Properties dialog to display information about the internal CompactFlash card and other storage devices such as the...

  • Page 141: Chapter Objectives

    Chapter Install and Replace Components Chapter Objectives This chapter shows how to install, replace, or upgrade various components of the PanelView Plus terminals. • Logic module • RAM and internal CompactFlash • Communication module • Display module • Battery • Display module bezel •...

  • Page 142: Component Compatibility For Panelview Plus Ce Terminals

    Chapter 6 Install and Replace Components Component Compatibility It is important to match the series of the internal CompactFlash card with the correct series of the logic module and software version. The for PanelView Plus CE series of the CompactFlash determines the version of FactoryTalk Terminals View ME software and version of the operating system.

  • Page 143: Install Ram Or Internal Compactflash

    Install and Replace Components Chapter 6 Compatibility After Upgrade FactoryTalk View ME terminals are compatible with .MER applications that are the same or a previous version. For example, FactoryTalk View ME 3.20 terminals can run .MER applications for FactoryTalk View ME software, versions 3.0, 3.10, and 3.20. For PanelView Plus CE devices, the appropriate changes are made to the OS, from Windows CE software, version 3.0 to 4.1, when upgrading from FactoryTalk View ME software, version 3.0 to 3.10 or...

  • Page 144: Install Or Replace The Logic Module

    Chapter 6 Install and Replace Components 5. Locate the RAM module on the circuit board, pull the metal retaining clips away from the module, and slide out the module. CompactFlash Card Retaining Screw RAM Module Retaining Clips 6. Insert the new RAM module at a 45° angle and snap down. Skip steps 7…11 if not replacing the internal CompactFlash.
  • Page 145 Install and Replace Components Chapter 6 Captive Screw 4. Push down on the logic module until firmly seated. 5. Tighten the six captive screws that secure the logic module to the display module to a torque of 0.58 Nm 5…7 lb•in). Logic Module Captive screws on top and bottom.
  • Page 146 Chapter 6 Install and Replace Components Before replacing the logic module, you must remove the communication module, if attached. You will also need to remove the Internal RAM and CompactFlash from the logic module to reuse in the new logic module. Follow these steps to replace a logic module.

  • Page 147: Install Or Replace A Communication Module

    Install and Replace Components Chapter 6 Install or Replace a This section shows how to install and replace a communication module. The communication module installs over the logic module. Communication Module The communication modules are available as separate catalog numbers for specific communication protocols. PanelView Plus 700 to 1500 Terminals The logic module must be attached to the display module before you attach the communication module.
  • Page 148 Chapter 6 Install and Replace Components To prevent ESD between the modules, allow the communication module to touch the logic module before making connection. Communication Module Connector Logic Module 5. Push down on the communication module until the connectors are firmly seated. 6.
  • Page 149 Install and Replace Components Chapter 6 PanelView Plus 400 and 600 Terminals Follow these steps to install a communication module. 1. Disconnect power from the terminal. 2. Set the terminal, display side down, on a clean, flat, stable surface. 3. Remove the label covering the connectors on the base unit of the terminal.
  • Page 150 Chapter 6 Install and Replace Components 5. Push down on the communication module until the connector is firmly seated. 6. Tighten the three captive screws that secure the module to the terminal, starting with the bottom, left screw on the module. Tighten screws to a torque of 0.34…0.45 Nm (3…4 lb•in).

  • Page 151: Replace The Display Module

    Install and Replace Components Chapter 6 Replace the Display This section shows how to replace the display module on 700 to 1500 terminals. It is necessary to remove the communication module from Module the logic module to perform this operation. Communication Module Logic Module Display...
  • Page 152 Chapter 6 Install and Replace Components 7. Position the new logic module over the new display module so that the connectors align. 8. Push down on the logic module until firmly seated. 9. Tighten the six captive screws that secure the logic module to the display module to a torque of 0.58 Nm 5…7 lb•in).

  • Page 153: Replace The Battery

    Install and Replace Components Chapter 6 Replace the Battery The 700 to 1500 terminals have a lithium battery that is intended to be replaced during the life of the product. The battery is used by the real-time clock and static RAM and is not used for application backup or retention.
  • Page 154 Chapter 6 Install and Replace Components Follow these steps to replace the battery. 1. Disconnect power from the terminal. 2. Place the terminal, display side down, on a flat stable surface. 3. Detach the communication module, if attached, from the logic module by removing the four screws.

  • Page 155: Replace The Bezel

    Install and Replace Components Chapter 6 8. Insert the new battery. Use only replacement battery 2711P-RY2032. IMPORTANT 9. Attach the logic module by aligning the two connectors on the bottom of the module with the connectors on the terminal. 10. Push down on the logic module until firmly seated. 11.
  • Page 156 Chapter 6 Install and Replace Components 3. On touch screen only terminals, remove the two screws that secure the small metal plate to the back of the display module. 4. Disconnect the touch screen connector. Plate Touch Screen Connector 5. Remove the screws from the back of the display module. The number of screws varies for each terminal type.
  • Page 157 Install and Replace Components Chapter 6 7. Lift the back of the display module away from the bezel. Work on a clean, flat, stable surface to protect the display from debris, scratches and damage. Display Module Bezel 8. Detach all connectors, maximum of three. The number of connectors varies by model.

  • Page 158: Replace The Backlight

    Chapter 6 Install and Replace Components 4. Attach the touch screen connector. 5. Replace the sealing gasket. 6. Attach the screws that secure the display module to the bezel and tighten to a torque of 1.35…1.58 Nm (12…14 lb•in). 7. On touch screen terminals, reattach the small metal plate to the back of the display module using two screws and torque to 0.58 Nm (5…7 lb•in).
  • Page 159 Install and Replace Components Chapter 6 4. Remove the four screws that secure the LCD display for all other displays. 5. Lift the LCD display and detach the display connector from the circuit board. The circuit board layout may vary for each terminal model. The location of the connector varies by model.
  • Page 160 Chapter 6 Install and Replace Components 7. Follow these steps for the PanelView Plus 700 and 1000 displays. a. Press the retaining tab that secures the backlight and then pull out the backlight. Backlight Retaining Tab b. Insert the new backlight. Backlight 8.
  • Page 161 Install and Replace Components Chapter 6 – For the 1500 series B displays, remove the tape and then remove the backlights. 1250 Backlights 1500 b. Insert the new backlights and then secure each with the same screws from the previous step and torque to 0.117 Nm (1.04 lb•in).

  • Page 162: Remove The Product Id Label

    Chapter 6 Install and Replace Components Remove the Product ID You can remove the label on your terminal and attach your own label. Label 1. Remove the Allen-Bradley label using your fingers or a tweezers. 2. Clean area with damp cloth and isopropyl alcohol. 3.
  • Page 163 Install and Replace Components Chapter 6 600 Terminal Publication 2711P-UM001I-EN-P - December 2008...
  • Page 164 Chapter 6 Install and Replace Components PanelView Plus 700 to 1500 Terminals The F1-Fxx and K1-Kxx legend inserts on the PanelView Plus 700 to 1500 terminals are accessible when the display module bezel is removed. 1. Remove power from the terminal. 2.

  • Page 165: Use An External Compactflash Card

    Install and Replace Components Chapter 6 Use an External All of the terminals have a CompactFlash card slot that supports Type 1 CompactFlash cards. These cards are available in different CompactFlash Card memory sizes. The orientation of the card slot on the 700 to 1500 terminals varies depending on the series of the logic module.
  • Page 166 Chapter 6 Install and Replace Components Remove a CompactFlash Card Press the Eject button on the logic module. When the button pops out, press it again to release the card. The location of the button varies depending on the series of the logic module. The PanelView Plus 400 and 600 terminals do not have an eject button.

  • Page 167: Chapter Objectives

    Chapter Terminal Connections Chapter Objectives This chapter provides network and device connections for the terminals. • Wiring and safety guidelines • Logic controller cable charts • Communication port isolation • USB ports • Serial connections on base unit • Ethernet (onboard communications) •...

  • Page 168: Logic Controller Cable Charts

    Chapter 7 Terminal Connections Logic Controller Cable The charts provide a summary of terminal connections to controllers and network interface modules. Charts Runtime Communication Cables - To Controller PanelView Plus and PanelView Plus CE Terminals to SLC Controllers Cables: PanelView Plus and PanelView Plus CE to SLC Controllers SLC-500, 5/01, 5/02 SLC-5/03, 5/04, 5/05 SLC 5/03...
  • Page 169 Terminal Connections Chapter 7 anelView Plus and PanelView Plus CE Terminals to PLC-5 and MicroLogix Controllers Cables: PanelView Plus and PanelView Plus CE to PLC-5 and MicroLogix Controllers MicroLogix 1000, 1200, PLC-5, PLC-5C, PLC-5E MicroLogix 1500LRP 1500LSP Protocol PanelView Plus Comm Port CH0 (25-pin RS-232) CH1 (9-pin RS-232) CH0 (8-pin Mini DIN)
  • Page 170 Chapter 7 Terminal Connections PanelView Plus and PanelView Plus CE Terminals to Logix Controllers Cables: PanelView Plus and PanelView Plus CE to Logix Controllers ControlLogix CompactLogix FlexLogix Protocol PanelView Plus Comm Port CH0 (9-pin RS-232) CH0 (9-pin RS-232) CH0 (9-pin RS-232) (DF1) (DF1 or DH-485) (DF1)

  • Page 171: Communication Port Isolation

    Terminal Connections Chapter 7 Communication Port The PanelView Plus and PanelView Plus CE terminals contain integral and modular (externally attached) communication ports. Some of Isolation these ports contain electrical isolation depending on the catalog number of the terminal or communication module. Integral Communication Port Isolation Communication Port 400 and 600 Terminal...

  • Page 172: Usb Ports

    Chapter 7 Terminal Connections USB Ports The 700 to 1500 terminals have two USB ports. The 400 and 600 terminals have one USB port. The terminals support standard USB keyboard and mouse devices (HID devices) with native device drivers. They also support some USB printers that have Printer Control Language (PCL) capabilities.

  • Page 173: Serial Connections

    Terminal Connections Chapter 7 Serial Connections The base-configured unit of all terminals has a multi-purpose serial RS-232 port that supports: • DH-485 communications through a serial connection. • DF1 full duplex communications with controllers using direct connections or modem connections. •...
  • Page 174 Chapter 7 Terminal Connections Modem Connection Wire or radio modem communications is possible between the terminal and controller. Each modem must support full duplex communications. Refer to your modem user manual for details on settings and configuration. PanelView Plus Terminal Optical Isolator Controller DF1 Port...
  • Page 175 Terminal Connections Chapter 7 Computer Connections The RS-232 serial port on the base-configured unit of the terminals supports: • application uploads/downloads using a direct connection. • printing. Base-configured Unit of PanelView Plus Terminal Computer Available Cables Cat. No. 2711-NC13, 5 m (16.4 ft) 25-pin to 9-pin Cat.

  • Page 176: Ethernet Connections

    Chapter 7 Terminal Connections Ethernet Connections The base-configured unit of the 700 to 1500 terminals and the network based unit of the 400 and 600 terminals have an Ethernet port that supports: • EtherNet/IP communications. • third-party Ethernet communications. • network connections. •...
  • Page 177 Terminal Connections Chapter 7 Ethernet Cable For PanelView Plus 700 to 1500 terminals, use Belden 7921A shielded Ethernet Category 5e cable according to TIA 568-B.1 and RJ45 connector according to IEC 60603-7 for compliance with Marine emissions limits and the European Union 89/336/EEC EMC Directive. The maximum cable length between the terminal’s Ethernet port and a 10/100 Base-T port on an Ethernet hub (without repeaters or fiber) is 100 m (328 ft).

  • Page 178: Dh-485/Dh+/Remote I/O Module

    Chapter 7 Terminal Connections DH-485/DH+/Remote I/O Terminals with a DH-485/DH+/Remote I/O communication module support communication with these networks. Module • DH+ networks • DH-485 networks • Remote I/O networks You can communicate with only one network at one time. The 700 to 1500 terminals support all protocols on one module. The 400 and 600 terminals require a separate module for each protocol.
  • Page 179 Terminal Connections Chapter 7 DH+ Status Indicator Condition Indication Channel is not online. Blinking green Device is only node on the network. Solid green Device is online and receiving token. Blinking red Duplicate node. Solid red Failed selftest. DH-485 Status Indicator Condition Indication Channel is not online.
  • Page 180 Chapter 7 Terminal Connections DH-485 Network Port Wiring for 700 to 1500 Terminals Use these instructions for wiring Belden cable. If you are using standard Allen-Bradley cables, see the Logic Controller Cable Charts. A daisy-chained network is recommended. We do not IMPORTANT recommend hybrid star/daisy chain networks as shown.
  • Page 181 Terminal Connections Chapter 7 DH-485 Connections for 400 and 600 Terminals This section shows connections between a 400 and 600 terminal with a DH-485 communication module and an SLC or ControlLogix controller through the AIC+ module. PanelView Plus 400 or 600 AIC + with DH-485 Module 1784-CP14 Cable...
  • Page 182 Chapter 7 Terminal Connections DH+ Network Connections Use the Belden 9463 twin axial or equivalent cable (cat. no. 1770-CD), to connect a terminal to a DH+ link. You can connect a DH+ link in two ways. • Trunk line/drop line - from the drop line to the connector screw terminals on the DH+ connectors of the processor •...
  • Page 183 Terminal Connections Chapter 7 Remote I/O Connections Use the Belden 9463 twin axial or equivalent cable (cat. no. 1770-CD), to connect a terminal to a Remote I/O scanner. The maximum cable length (link distance) is determined by the baud rate. •...

  • Page 184: Controlnet Module

    • ControlNet Coax Media Planning and Installation Guide, publication CNET-IN002 • ControlNet Communications for PanelView Plus and PanelView Plus CE Terminals User Manual, publication 2711P-UM003 The Rockwell Automation website http://rockwellautomation.com provides information and product descriptions of ControlNet products. Under the Products and Services heading, select Communications.
  • Page 185 Terminal Connections Chapter 7 Minimum Requirements The software and firmware must be installed on the development computer and the PanelView Plus terminal to configure and communicate with an Allen-Bradley controller on a ControlNet network. ControlNet Unscheduled Communications Software/Firmware PanelView Plus 700 to 1500 PanelView Plus 400 or 600 FactoryTalk View Studio Version 3.10 or later...
  • Page 186 Chapter 7 Terminal Connections ControlNet Connections 2711P-RN15C ControlNet Module for 400 and 600 Terminals Pin NAP Signal Signal Common No Connection Channel B TX_H TX_L Redundant BNC RX_L Cable Connectors RX_H Channel A No Connection Signal Common LED B Shell Earth/Ground Network Access Port (NAP) LED A RJ-45 connector for temporarily connecting programming...

  • Page 187: Devicenet Module

    Terminal Connections Chapter 7 NAP and Redundant Cables Refer to the ControlNet Coax Media Planning and Installation Guide, publication CNET-IN002, for descriptions of ControlNet components. Item Cat. No. RG-6 quad-shield 1786-RG6 Coax repeater 1786-RPT, -RPTD Coax taps 1786-TPR, -TPS, -TPYR, -TPYS Network access cable 1786-CP Coax tool kit...
  • Page 188 • DeviceNet Selection Guide, publication DNET-SG001 • DeviceNet Media Design Installation Guide, publication DNET-UM072 • DeviceNet Tips & Tricks Brochure, publication DNET-BR003 The Rockwell Automation website http://rockwellautomation.com provides information and product descriptions of DeviceNet products. Under the Products and Services heading, select Communications.
  • Page 189 Terminal Connections Chapter 7 DeviceNet Connections 2711P-RN10C DeviceNet Module for 400 and 600 Terminals I/O Status Indicator MOD Status Indicator NET Status Indicator White Shield Blue Black 2711P-RN10H DeviceNet Module for 700 to 1500 Terminals NET Status MOD Status Indicator Indicator I/O Status Indicator White...
  • Page 190 Chapter 7 Terminal Connections DeviceNet I/O Status Indicator This bicolor (green/red) LED provides information on the states of inputs and/or outputs. Condition Status Indication Outputs active All outputs are active. Inputs active All inputs are active. Green Outputs active One or more outputs are active and under control, and no outputs are faulted.
  • Page 191 Terminal Connections Chapter 7 DeviceNet Module (MOD) Status Indicator This bicolor (green/red) LED provides device status. It indicates whether or not the device has power and is operating properly. Condition Status Indication No power No power applied to device. Green Device operational Device is operating in a normal condition.
  • Page 192 Chapter 7 Terminal Connections DeviceNet Network (NET) Status Indicator This bicolor (green/red) LED indicates the status of the communication link. Condition Status Indication Not powered Device is not online. Not online The device has not completed the Dup_MAC_ID test yet. The device may not be powered;...

  • Page 193: Chapter Objectives

    Chapter Upgrade Firmware Chapter Objectives This chapter covers these topics: • Transfer applications • Create an ActiveSync connection • Upgrade terminal firmware • Upgrade operating system for CE terminals Transfer Applications You can transfer applications using a CompactFlash card or a computer.
  • Page 194 Chapter 8 Upgrade Firmware Create a Partnership with a Serial Connection To complete the ActiveSync installation, you must select the IMPORTANT Serial Connection initially. After that you can switch between serial and Ethernet connections. You must also make a valid ActiveSync connection at least once with the computer.

  • Page 195: Firmware Upgrade Wizard

    Upgrade Firmware Chapter 8 Terminate Connection on PanelView Plus CE Terminals 1. Click the ActiveSync connection utility on the taskbar. The Connection Status dialog should appear. 2. Press the Disconnect button to terminate the connection, may take 30 seconds. Connect via an Ethernet Connection Now that a partnership is created using a serial connection, you can connect to the PanelView Plus CE using an Ethernet connection.

  • Page 196: Upgrade Firmware With A Compactflash Card

    Chapter 8 Upgrade Firmware Before starting the Firmware Upgrade Wizard (FUW), follow these steps to prepare the terminal for a successful upgrade. 1. Backup all .MER files on the terminal to an external storage card or network. 2. Delete all applications on the terminal. 3.
  • Page 197 Upgrade Firmware Chapter 8 3. From the Firmware source folder list, select the location of the firmware files. The default location is C:\Program Files\Rockwell Software\RSView Enterprise\FUPs. 4. From the Upgrade firmware version list, select the version of the firmware you want to upgrade to, then press Next. 5.
  • Page 198 Chapter 8 Upgrade Firmware 6. Select Finish to copy the firmware source files to the location specified in step 2. If the files were created in a separate folder on a local hard drive, copy the files to the root directory of the CompactFlash card.
  • Page 199 Upgrade Firmware Chapter 8 If other terminals exist on the same Ethernet network, the following error may display: Error registering name on network (may be duplicate). Change in system Control Panel and try again. Ignore this error. It will be corrected during the upgrade. Press OK to acknowledge error and wait for terminal to reset.

  • Page 200: Upgrade Firmware With A Network (Ethernet) Connection

    Chapter 8 Upgrade Firmware Upgrade Firmware with a You can upgrade the firmware in a terminal that is connected to a desktop computer using a Serial, Ethernet, or Network with RSLinx Network (Ethernet) Enterprise software connection. Connection • Serial connection requires a RAS connection to be set up on computer.
  • Page 201 Upgrade Firmware Chapter 8 2. Select Upgrade firmware on terminal and click OK. 3. Select Network connection and click Next. Use the Ethernet and Serial connections only if the firmware upgrade is unsuccessful. 4. Locate the terminal on your Ethernet network via its IP address. Skip to step 6 if you found the terminal.
  • Page 202 Chapter 8 Upgrade Firmware 5. Double-click EthernetIP Devices and select the appropriate terminal and click OK. 6. Enter the IP address for the terminal and click OK. 7. Select the terminal to be upgraded and click OK. Publication 2711P-UM001I-EN-P - December 2008...
  • Page 203 Upgrade Firmware Chapter 8 8. From the Firmware source folder text box, select the location of the firmware files. The default location is C:\Program Files\Rockwell Software\FactoryTalk View Enterprise\FUPs. 9. From the Upgrade firmware version list, select the version of the firmware you want to upgrade to, then click Next.
  • Page 204 Chapter 8 Upgrade Firmware 11. Click Finish to start the upgrade. 12. Click Yes to continue the upgrade process. If the terminal was properly prepared for the upgrade, no applications should be running. Firmware files are downloaded to the terminal. This may take several minutes to 15 minutes.
  • Page 205 Upgrade Firmware Chapter 8 Ignore this error. It will be corrected during the upgrade. Press OK to acknowledge error and wait for terminal to reset. If a USB mouse is available, you can acknowledge the error by selecting OK. 14. On touch or touch-screen terminals, you must calibrate the touch screen by selecting pointers in all four corners of the screen and pressing the middle of the screen when prompted.

  • Page 206: Upgrade The Operating System (Os)

    Chapter 8 Upgrade Firmware Upgrade the Operating The Operating System (OS) compressed binary image resides in a binary partition of the Internal (IDE) CompactFlash in the logic System (OS) module for PanelView Plus CE terminals. There are two ways to upgrade the OS:.
  • Page 207 Upgrade Firmware Chapter 8 Load PanelView Plus CE Components You can load PanelView Plus CE Components by using an: • ActiveSync connection. • external CompactFlash card. ActiveSync Connection When the new operating system is running, load the PanelView Plus CE components as follows. 1.
  • Page 208 Chapter 8 Upgrade Firmware External CompactFlash Card When the new operating system is running, load the PanelView Plus CE components as follows. 1. Open the PanelView Plus CE Install Utility folder on the PanelView Plus CE Accessory CD and copy the following to an FAT formatted CompactFlash card: •...

  • Page 209: Chapter Objectives

    Chapter Troubleshoot the System Chapter Objectives This chapter provides information on how to isolate and correct common operating problems with system components. • LED indicators • Isolate the problem • Startup error messages • Startup information messages • Startup sequence •...

  • Page 210: Isolate The Problem

    Chapter 9 Troubleshoot the System Isolate the Problem This section provides general troubleshooting information to assist you when trying to isolate problems. Check for Adequate Power A terminal that does not receive adequate power could result in unpredictable behavior. Verify the power requirements in Appendix A of this manual.
  • Page 211 Troubleshoot the System Chapter 9 Check the Startup Messages for Errors Record any error message that displays during startup and refer to the Startup Error Message table on page 213. Check Voltages and Temperatures On the 700 to 1500 terminals, check the battery voltage and the display temperature.
  • Page 212 Chapter 9 Troubleshoot the System Perform Extended Diagnostics Use extended diagnostics on the 700 to 1500 terminals to perform more extensive hardware testing at startup. • Enter Configuration mode and select Terminal Settings>Startup Tests>Select Tests. • For PanelView Plus CE terminals, you can also open the Extended Diagnostics control panel application.

  • Page 213: Startup Information Messages

    Troubleshoot the System Chapter 9 Startup Information Startup messages display in a specific sequence on the terminal during startup and typically display for a few seconds. These messages Messages indicate the startup sequence of the terminal but do not require that you perform any action.

  • Page 214: Startup Sequence

    Chapter 9 Troubleshoot the System Startup Sequence This flow chart provides a sequence of startup operations for the terminal and shows system information messages that are displayed on the terminal. Power On Display copyright message, bootcode versions and Testing... message Initialize Video - Display 37 Video Initialized (700 to 1500 only) Perform Power On Self Test Display 30 Watchdog Test...

  • Page 215: Startup Error Messages

    Troubleshoot the System Chapter 9 Startup Error Messages When an error occurs, the terminal displays the error number with a text message. The word ERROR! appears under this line in different languages. # Displayed Message ERROR! FEHLER! ERREUR! ERRORE! Error # Displayed Message Description Recommended Corrective Action...

  • Page 216: Check Terminal Components

    Chapter 9 Troubleshoot the System Check Terminal This section provides tips on how to isolate problems with individual components of the terminal, including the display, touch screen, Components keypad, attached keyboard or mouse. Isolate Problems with the Display The table provides tips to help you resolve problems with display. If you are unable to resolve the problem, replace the display.
  • Page 217 Troubleshoot the System Chapter 9 Isolate Problems with the Touch Screen The table provides tips to help you resolve problems with the touch screen. If you are unable to resolve the problem, replace the 700 to 1500 display module or bezel. If this corrects the problem, then the touch screen was not functioning properly.
  • Page 218 Chapter 9 Troubleshoot the System Isolate Problems with the Keypad The table provides tips to help you resolve problems with the terminal keypad. If you are unable to resolve the problem, replace the 700 to 1500 display module. If this corrects the problem, then the display was not functioning properly.
  • Page 219 Troubleshoot the System Chapter 9 Isolate Problems with the Mouse The table provides tips to help you resolve problems with the mouse. Potential Problems Recommended Action The mouse is not operating correctly. Check the USB cable and connection. Detach and then reattach the mouse.
  • Page 220 Chapter 9 Troubleshoot the System Isolate Problems with the Keyboard The table provides tips to help you resolve problems with the keyboard. Potential Problems Recommended Action The keyboard does not work. Check the USB cable and connector. Detach and reattach the keyboard. Verify a good connection. Cycle power to the terminal.

  • Page 221: Ethernet Connnection

    Troubleshoot the System Chapter 9 Ethernet Connnection This section provides tips on how to isolate Ethernet problems. • Check the LED indicators at the Ethernet connector. The green LED indicates a communications link and should be ON. The amber LED indicates data activity and should be flashing. Verify that there is a connection to the hub? •...

  • Page 222: Application Does Not Run

    Chapter 9 Troubleshoot the System Application Does Not Run If the PanelView Plus application does not start, there may be a problem with the .MER FactoryTalk View ME file. Check for a startup screen and compatible version. If a PanelView Plus CE application does not run at startup, try to run the application manually.

  • Page 223: Advanced Diagnostics For Ce Terminals

    Troubleshoot the System Chapter 9 Advanced Diagnostics for Ping and ipconfig are invaluable for network debugging along with some knowledge of IP and the Winsock error codes. CE Terminals • Try to ping the destination host. • Check the destination address. •...

  • Page 224: System Identification Errors

    Chapter 9 Troubleshoot the System System Identification Errors The error messages in this section appear on startup if incorrect or invalid components are used with the 700 to 1500 terminals. Terminals manufactured after January 2007 switch displays without displaying the following error messages. •...

  • Page 225: Restart In Safe Mode

    Troubleshoot the System Chapter 9 • This dialog appears if the internal CompactFlash in the PanelView Plus logic module is corrupt. This is a fatal error. After clicking OK, you will be asked to power off the terminal and insert a valid 2711P-RWx internal CompactFlash card. Restart in Safe Mode On PanelView Plus CE terminals, use the default switch with the reset switch to start the terminal in Safe mode.
  • Page 226 Chapter 9 Troubleshoot the System The switches that control safe mode are on the right side of the logic module above the CompactFlash card slot. Follow these steps to restart in Safe mode. 1. Insert a thin probe into the hole marked default and press the switch.

  • Page 227: Chapter 10 Chapter Objectives

    Chapter Maintenance Chapter Objectives This chapter provides information on the following topics: • Clean the display • Disposal information Clean the Display Window Use a protective antiglare overlay for easier cleaning of the display window. Use of abrasive cleaners or solvents may damage the display. ATTENTION Do not scrub or use brushes.

  • Page 228: Disposal Information

    Chapter 10 Maintenance Disposal Information This section contains disposal information for the backlight assembly and battery. Backlight Assembly Disposal The backlight assembly of 600 to 1500 terminals contains ATTENTION mercury. At the end of its life, this equipment should be collected separately from any unsorted municipal waste.

  • Page 229: Appendix A Electrical

    Appendix Specifications Electrical Attribute Value 400 and 600 Input voltage, DC 24V DC nom (18…30V DC) Power consumption, DC 25 W max (1.0 A at 24V DC) 700 to 1500 Input voltage, DC 24V DC nom (18…32V DC) Power consumption, DC 70 W max (2.9 A at 24V DC), 39 W typical (1.6A @ 24V DC) 400 and 600...

  • Page 230: Display

    Appendix A Specifications Vibration 10…57 Hz, 0.012 pk-pk displacement 57…500 Hz, 2 g pk acceleration Enclosure Ratings NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65 Airborne Contaminants For PVP/PVP-CE conformal-coated PCBA level products: ANSI/ISA S71.04 - 1985 Severity Level G3 EN60654-4:1998 Class 3 Display Attribute...

  • Page 231: Mechanical

    Specifications Appendix A Backlight 600…1500 CCFL 50,000 hours life, min. 1250 High-bright Backlight not replaceable Touch screen Analog resistive Actuation rating 1 million presses Operating force 10…110 g Function keys, numeric and navigation Keypad function keys 1 million presses Actuation rating 340 g Operating force Number of function keys varies by terminal size.

  • Page 232: General

    Appendix A Specifications General Attribute Value Battery life 400 and 600 5 years min. at 25 °C (77 °F) 700 to 1500 4 years min. at 25 °C (77 °F) Clock Battery-backed, +/-2 minutes per month LED indicators COMM (Green), Fault (Red) Application flash memory 400 and 600, series A 5 MB...
  • Page 233 USB ports of the terminals. PanelView Plus PanelView Plus Device Vendor Model 700 to 1500 400 and 600 USB Keyboard Rockwell Automation Cat. No. 6189-KBDEPU1U Ortek MCK-600USB Dell RT7D10 Rockwell Automation Cat. No. 6189-KBDEPC1U Keyboard/Mouse USB Mouse...
  • Page 234 Appendix B Compatible USB Devices Publication 2711P-UM001I-EN-P - December 2008...
  • Page 235 Appendix Available Fonts for Terminal Applications The following fonts are pre-installed on PanelViewPlus CE terminals: • True Type fonts (scalable) – Tahoma.ttf (proportional) – Courier.ttf (fixed width) – Arial.ttf (proportional) • 23 fonts of various sizes migrated from PanelView Standard and PanelView e terminals (various sizes) To simplify the creation and downloading of .mer application files on these devices, use the above list of fonts when developing screens in...
  • Page 236 Machine Edition Fonts CD Additional fonts are available on a CD, titled Machine Edition Fonts. This CD is available from your local distributor by requesting View-SP006. For additional information, refer to the Rockwell Automation Knowledgebase at http://support.rockwellautomation.com. Available Fonts Fonts...
  • Page 237 Available Fonts for Terminal Applications Appendix C Fonts File Name Size (Bytes) Trebuchet MS Trebuchet MS trebuc.ttf 69,688 Trebuchet MS Bold trebucbd.ttf 66,444 Trebuchet MS Bold Italic trebucbi.ttf 66,348 Trebuchet MS Italic trebucit.ttf 72,560 Verdana Verdana verdana.ttf 149,752 Verdana Bold verdanab.ttf 137,616 Verdana Bold Italic...
  • Page 238 Appendix C Available Fonts for Terminal Applications Fonts File Name Size (Bytes) Korean Locale Specific Support GL_CE gl_ce.ttf 4,130,084 Gulim & GulimChe (Choose 1) Gulim & GulimChe (Subset 1_30) gulim_1_30.ttc 3,010,268 Gulim & GulimChe (Subset 1_40) gulim_1_40.ttc 4,683,896 Gulim & GulimChe (Subset 1_50) gulim_1_50.ttc 7,128,756 Gulim &...
  • Page 239 Appendix Programmable Key Definitions The tables in this appendix shows the Windows virtual key code mapping of each programmable function key on the PanelView Plus CE terminal. Function Key Virtual Key Function Key Virtual Key Mapping Mapping VK_F1 RA + VK_F1 VK_F2 RA + VK_F2 VK_F3...
  • Page 240 Appendix D Programmable Key Definitions The following table provides the Windows virtual-key code mapping for the Alt, Control, and Shift keys on the PanelView Plus CE terminal. Alt, Control, and Shift Key Mapping Keyboard Virtual Key Equivalent Mapping Control VK_LCONTROL Shift VK_LSHIFT VK_LMENU...
  • Page 241 Appendix Security Considerations Ports 137 and 138 are normally open to support the NetBIOS protocol used by Windows CE.NET similar to other Microsoft and IBM network operating systems. Port 80 is open when the Web server is optionally installed from the PanelView Plus extensions.
  • Page 242 Appendix E Security Considerations Publication 2711P-UM001I-EN-P - December 2008...
  • Page 243 Index loading application 65 running application 66 AC power terminal settings 66 400, 600 20 control panel applications 700 to 1500 20 date/time 137 connect 58 display settings 130 connections 56 Ethernet network configuration 124 protective-earth connection 56 extended diagnostics 132 accessories 23 hardware monitor 134 ActiveSync 114...
  • Page 244 Index DH485 keypad terminals 16 virtual key code mapping 239 cables 168 port connectors 178 status indicators 179 DHPlus hardware monitor 134 cables 168 hazardous locations 31 network connections 182 400/600 USB port 32 port connectors 178 high-bright display 20 status indicators 179 diagnostics in control panel 132...
  • Page 245 Index mouse compatibility 233 settings 127 operating system upgrade troubleshooting 218 loading PanelView Plus CE components keypad legend inserts 26 keypad settings 128 outdoor installation high-bright displays 34 languages 108 LED indicators 209 packing list 9 legend inserts power supply installation 162 400 and 600 51 loading application 65...
  • Page 246 Index using a modem 174 double-tap sensitivity 90 shortcut keys 116 troubleshooting 217 transferring files 79 Shortcut paths for startup 98 troubleshooting 209 Simple Network Management Protocol accessing configuration mode 222 (SNMP) 177 advanced 223 SNMP Protocol 177 display module 216 software 11 Ethernet connection 221 specifications...
  • Page 248 New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
