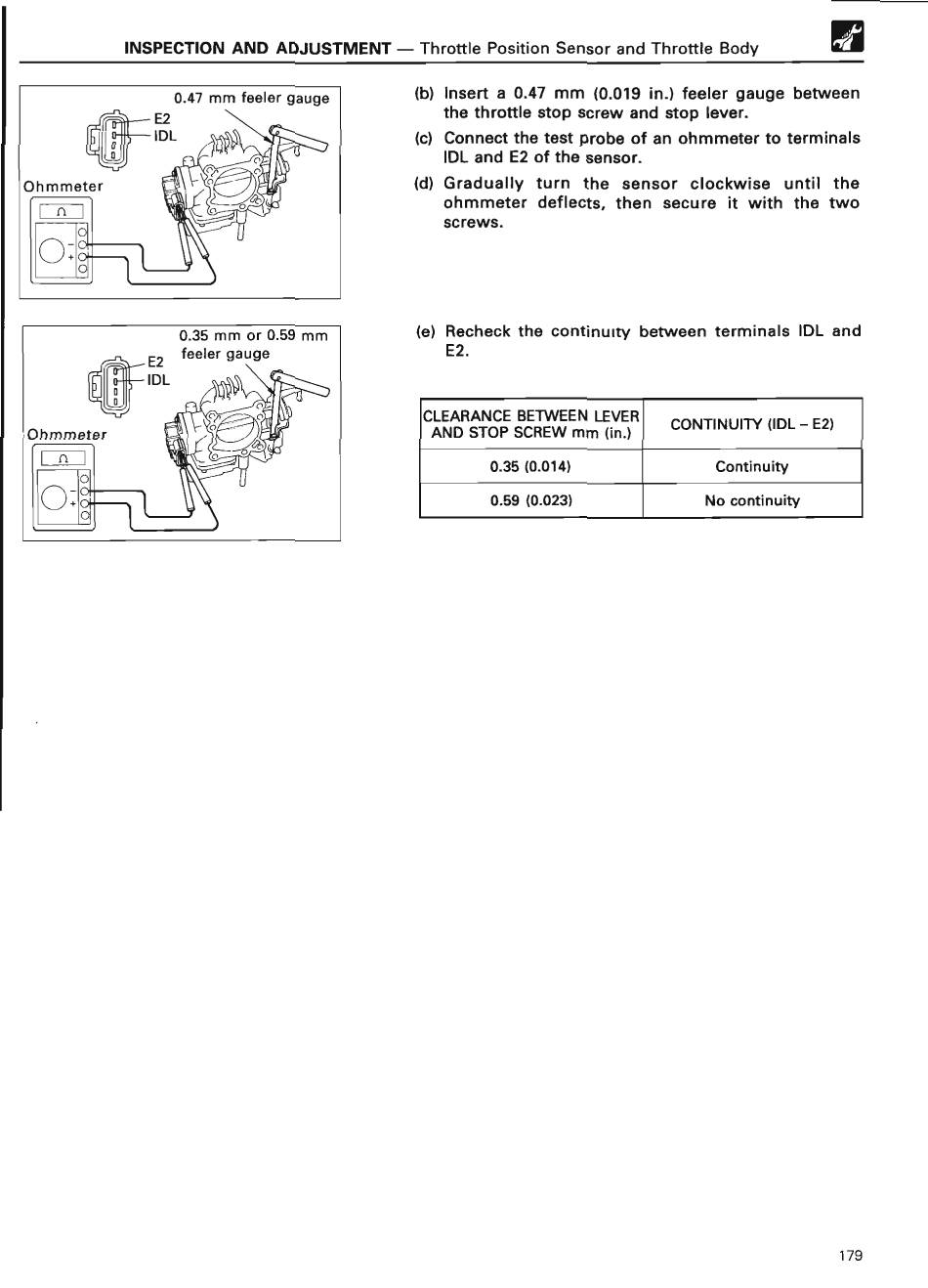

INSPECTION AND ADJUSTMENT - Throttle Position Sensor and Throttle Body
W
(b) Insert a 0 .47 mm (0 .019 in .) feeler gauge between
the throttle stop screw and stop lever.
(c) Connect the test probe of an ohmmeter to terminals
IDL and E2 of the sensor .
(d) Gradually turn the sensor clockwise until the
ohmmeter deflects, then secure it with the two
screws .
(e) Recheck the continuity between terminals IDL and
E2 .
CLEARANCE BETWEEN LEVER
CONTINUITY (IDL - E2 )
AND STOP SCREW mm (in . )
0 .35 (0 .014) Continuity
0 .59 (0 .023)
No continuity
