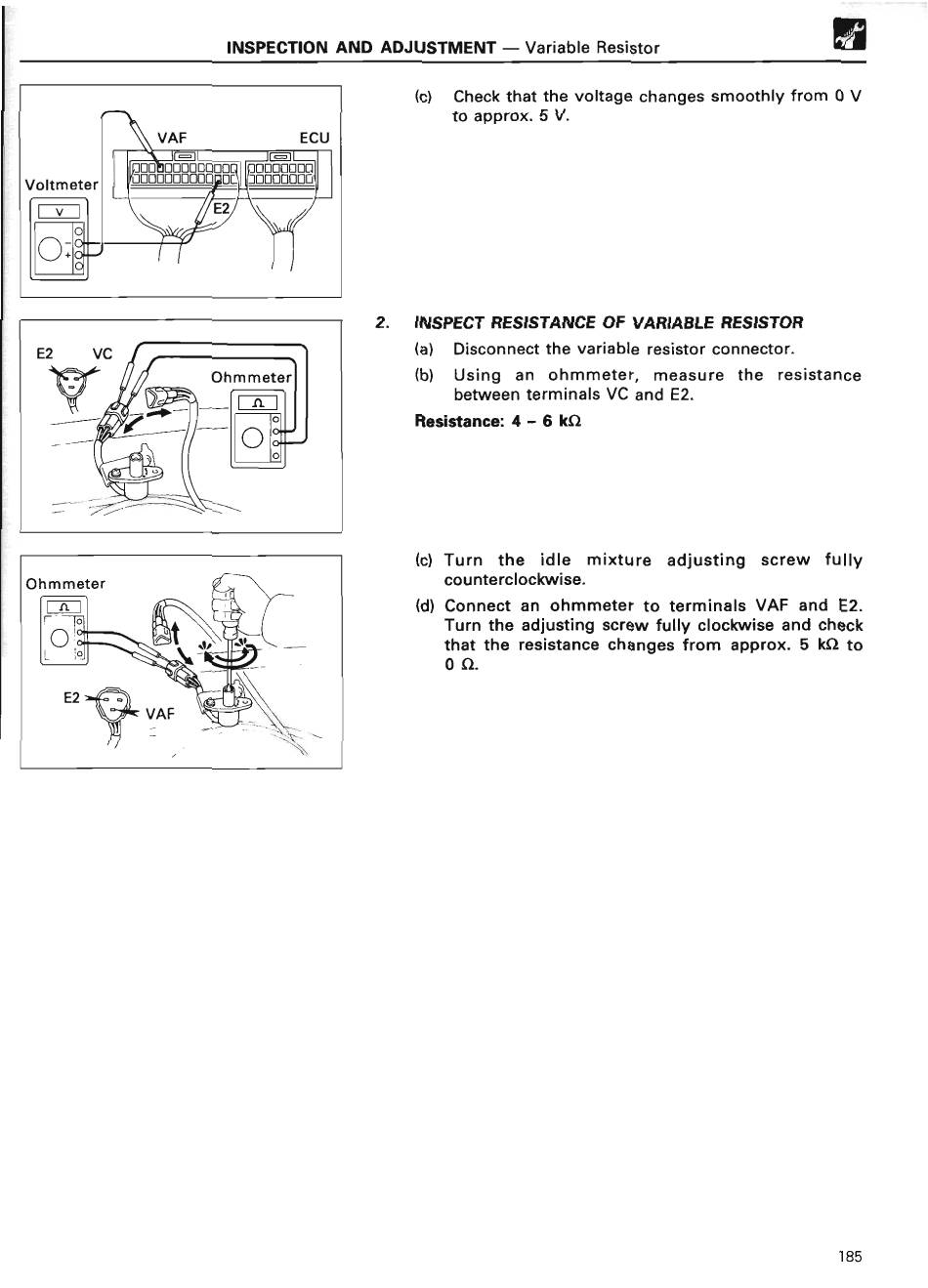

Toyota COMPUTER-CONTROLLED SYSTEM Training Manual page 191

Voltmete r
Ov
0
0
+o
0
E2
-4-,~JIJJC_ii7~C
_~i~r_n,r~poo
(c) Check that the voltage changes smoothly from 0 V
to approx . 5 V .
2 . INSPECT RESISTANCE OF VARIABLE RESISTOR
(a) Disconnect the variable resistor connector .
(b) Using an ohmmeter, measure the resistance
between terminals VC and E2 .
Resistance: 4 - 6 kS 2
(c) Turn the idle mixture adjusting screw fully
counterclockwise .
(d) Connect an ohmmeter to terminals VAF and E2 .
Turn the adjusting screw fully clockwise and check
that the resistance changes from approx . 5 kS2 to
052 .
185
INSPECTION AND ADJUSTMENT - Variable Resisto r
EC U
O
00 000ooooory
ooooo0 00000~
