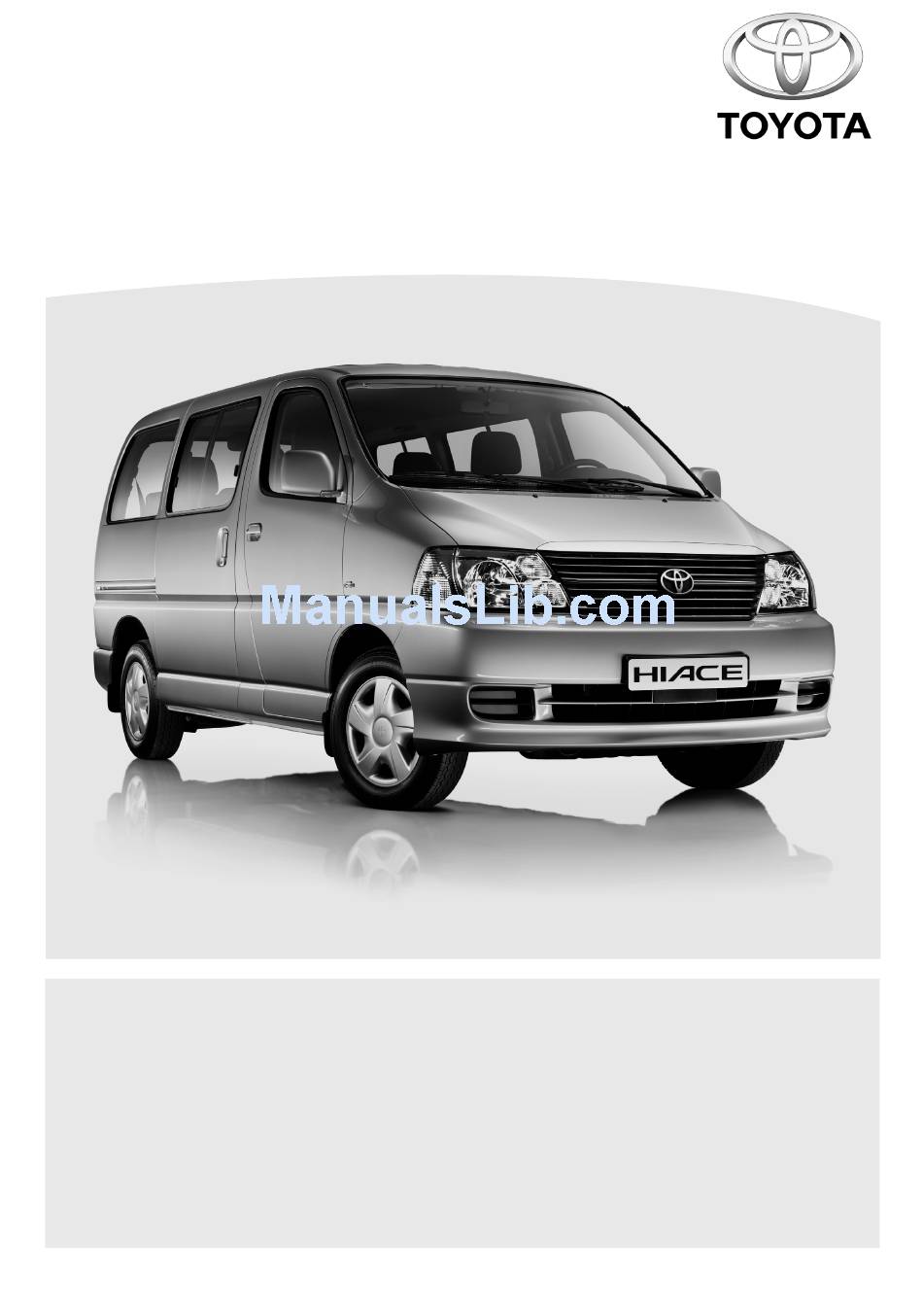

- Page 1 Hiace TNS600 LHD installation instructions Model year: 2006 Vehicle code: KLH**L-**M**W Part number: • Navigationssystem PZ 445-00331-00 • W2DIN Conversion Kit PZ 425-H0211-60 Manual ref. n : AIM 000 759-0...
-
Page 2: Precautions
Hiace (sbv) TNS 600 PRECAUTIONS PLEASE READ THOROUGHLY THESE PRECAUTIONS BEFORE THE INSTALLATION • Protect your car with fender cov- • Be sure to disconnect the negative ers, seat and so on. (-) lead from the battery terminals. • Use the correct tool when tight- •... -
Page 3: Table Of Contents
Hiace (sbv) TNS 600 TABLE OF CONTENTS Precautions ................................... Table of Contents ................................Component Parts ................................Required Parts ................................Wiring Connection ................................. Installation Overview ..............................Vehicle Disassembly ..............................Wire Harness Installation ............................... Installation of the GPS Antenna ............................. Systems start up ................................Post-Installation Inspection ............................ -
Page 4: Component Parts
PZ 445-00331-00 PWR•VOL VOICE NAVIGATION TUNE SEEK TRACK MENU DEST INFO VOICE AUDIO DISPLAY TILT OPEN TOYOTA B-9001 Description TNS600 WIRE HARNESS GPS ANTENNA NAVIGATION DISC WIRE CLAMP FOAM TAPE WIRE TIE EARTH PLATE BOLTS 08-06 Hiace (LHD) - 4... -
Page 5: Required Parts
Hiace (sbv) TNS 600 REQUIRED PARTS OWNER’S MANUAL To be ordered separately. Depending on unit, Refer to ATA. WIDE 2DIN CONVERSION KIT PZ 425-H0211-60 Local manufacturing. Left Hand Bracket Right Hand Bracket Hiace (LHD) - 5 08-06... -
Page 6: Wiring Connection
Hiace (sbv) TNS 600 WIRING CONNECTION CONNECTION METHOD : TNS 600 TUNER WITH LCD DISPLAY Splicing connector Splicing connector TNS 600 Tuner with LCD Display (Speed sensor wire) (Reverse sensor wire) GPS antenna Vehicle wire harness Antenna wire Refer to the repair manual for information on removal of vehicle parts, installation methods, tightening torque etc. -
Page 7: Installation Overview
Hiace (sbv) TNS 600 INSTALLATION OVERVIEW GPS Antenna WIRE HARNESS - SPEED SENSOR WIRE ANTENNA CORD WIRE HARNESS - REVERSE SENSOR WIRE (RED/BLUE) Hiace (LHD) - 7 08-06... -
Page 8: Vehicle Disassembly
Hce (Hsbv) TNS 600 VEHICLE DISASSEMBLY Place tape to protect dashboard from scratches. Remove the ashtray and center cluster : Screw (2x) Fig. 1 Remove parts from frame (1). Only for W2DIN. Fig. 2 Remove parts from frame (2). Only for W2DIN. Fig. - Page 9 Hiace (sbv) TNS 600 Remove the cigar lighter (Step 1). Only for W2DIN. Fig. 4 Detach the 2 claws and remove the cover. Only for W2DIN. Fig. 5 Rotate the cigarette lighter socket to disengage the cigarette lighter bezel stay’s notch from the socket hole. Only for W2DIN.
- Page 10 Hiace (sbv) TNS 600 Remove the box assembly release the brackets (2x). : Screw (4x) Fig. 7 Remove the meter cover and meter assembly : Screw (1x) : Screw (4x) Fig. 8 Remove bottom panel with speaker (2screws, 5 clips) 5 clips screws (2x) Fig.
- Page 11 Hiace (sbv) TNS 600 10. Remove handle (2 screws). screws (2x) Fig. 10 11. Remove a-pilar 3 clips. 3 clips Fig. 11 Hiace (LHD) - 11 08-06...
-
Page 12: Wire Harness Installation
Hiace (sbv) TNS 600 WIRE HARNESS INSTALLATION Cut the foam tape into 4 large and 10 small pieces as shown in the illustration. Fig. 12 G REVERSE SENSOR CONNECTOR Bundle and attach the excess reverse sensor wire (green) as shown using wire ties Cut the red/white wire away and iso- late. - Page 13 Hiace (Hsbv) TNS 600 G CONVERSION WIRE CONNECTION Route the speed sensor wire reverse wire as shown in the illustra- tion. Fig. 14 G WIRE SPLICING CONNECTOR INSTRUCTIONS Remove appropriate amount of tape wrapping the vehicle side harness to be connected. Insert the vehicle harness to be con- nected securely into the guide slit.
- Page 14 Hce (Hsbv) TNS 600 Reverse signal for Navi. Scotch lock (1x) on Black and Red wire. Black/Red wire Fig. 16 SPEED SENSOR CONNECTION Take the meter assembly so that the front is facing you. Turn the meter assembly 180° so that the rear is facing you.
-
Page 15: Installation Of The Gps Antenna
Hiace (sbv) TNS 600 INSTALLATION OF THE GPS ANTENNA Remove the release paper. Attach the earth plate to the meter cover as shown and mount the GPS antenna to the earth plate Fix the antenna cord and antenna using foam (2x). - Page 16 Hce (Hsbv) TNS 600 Fit the brackets to the audio assembly Fig. 20 Pre-fit the washer and screw to the lower left corner. Fig. 21 Connect the female 6P connector, the female 10P connector and the female 5P connector of the conversion wire to the TNS600 (Refer to the wiring connection pag.
- Page 17 Hiace (sbv) TNS 600 Reassemble the ashtray and center cluster : Screw (2x) Fig. 23 Hiace (LHD) - 17 08-06...
-
Page 18: Systems Start Up
Hiace (sbv) TNS 600 SYSTEM START UP POST-INSTALLATION INSPECTION Inspect the wiring and installation for abnormalities. Check with close attention for any locations where the vehicle harness, wire harness or divergence har- ness is being pushed, pulled or pinched with excessive force. Also check if clamps and bands are shifted out of the position and if all parts are tightened properly. -
Page 19: Post-Installation Inspection
4. Perform the “auto-compensation” procedure by following the section on “When Tires are Replaced” in the TNS Owner’s Manual. When an abnormality is suspected, perform troubleshooting based on the “Toyota Genuine Navigation System Service Manual”. REASSEMBLING Return all vehicle parts that have been removed to their original locations. Especially make sure to attach trim and other inte- rior materials properly so that they do not have a detrimental effect on the function of the vehicle. - Page 20 GENUINE PARTS Printed in Belgium (08-06)
